RZT-S Zero
66

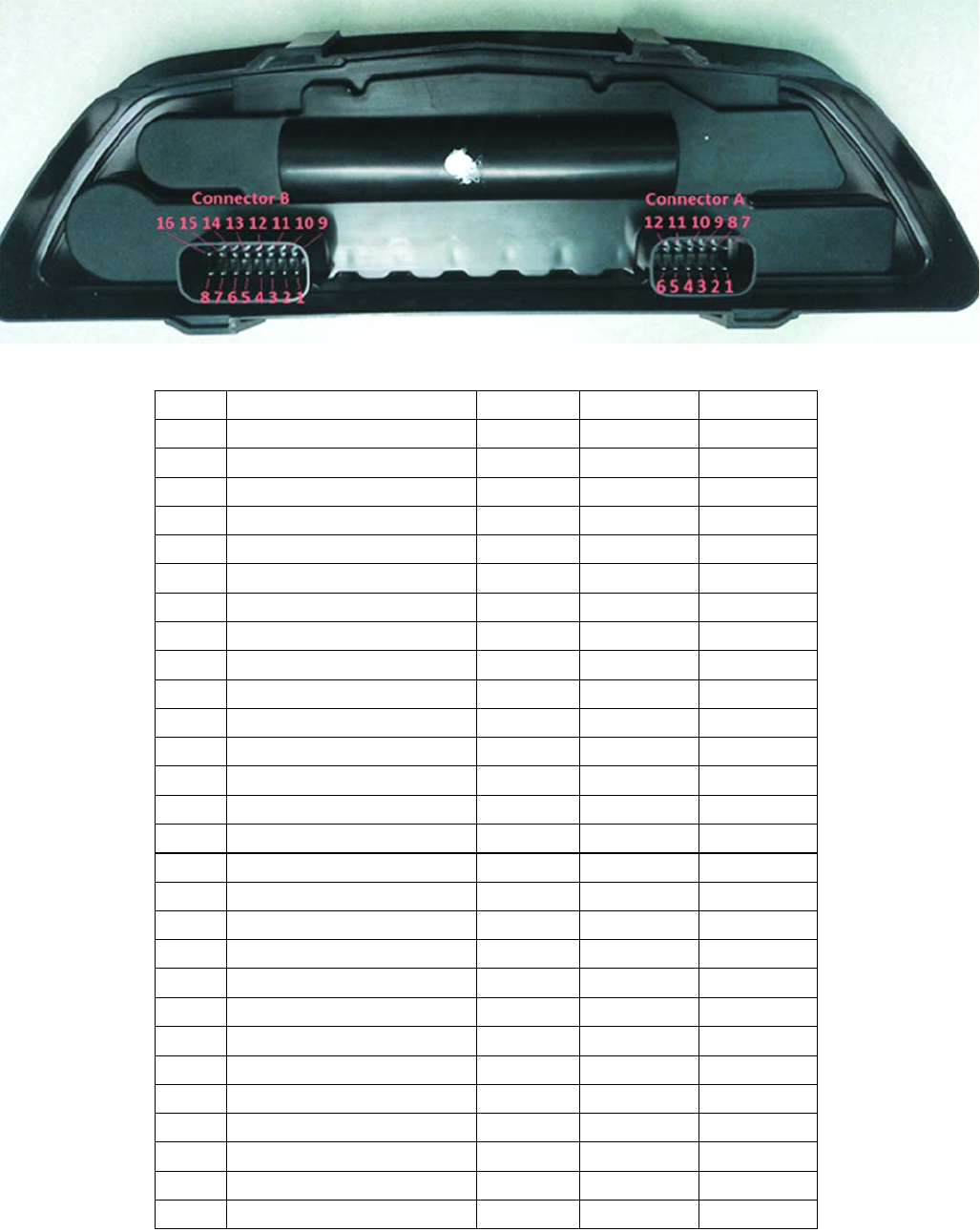

VCM Connector Pin Designations
Pin Name I/O Voltage Current
A1 LIGHTS+ Output 12V < 1A
A2 LIGHTS- Return 12V < 1A
A3 SPEAKER- Return 12V < 1A
A4 SPEAKER+ Output 12V < 1A
A5 COMMUNICATION Bus 5V < 1A
A6 COMMUNICATION Bus 5V < 1A
A7 RETURN BAT- < 5A
A8 BATTERY+ BAT+ < 5A
A9 PRE-CHARGE BAT+ < 5A
A10 CONTACTOR- BAT- < 5A
A11 CONTACTOR+ BAT+ < 5A
A12 LOGIC BAT+ < 5A
B1 BRAKE Input 5V < 1A
B2 CHARGE Input 5V < 1A
B3 SEAT1 Input 5V < 1A
B4 SEAT2 Input 5V < 1A
B5 PTO1 Input 5V < 1A
B6 PTO2 Input 5V < 1A
B7 NOT USED - - -
B8 SENSOR+ Output 5V < 1A
B9 RUN Input BAT+ < 5A
B10 NOT USED - - -
B11 RUN SUPPLY Output BAT+ < 5A
B12 STEER- Input 5V < 1A
B13 STEER+ Input 5V < 1A
B14 THROTTLE- Input 5V < 1A
B15 THROTTLE1 Input 5V < 1A
B16 THROTTLE2 Input 5V < 1A
