User Manual

16
SECTION 6: MAKING ADJUSTMENTS
WARNING: Never attempt to make any
adjustments while the engine is running,
except where specified in the operator’s
manual.
Leveling the Deck
NOTE: Check the tractor’s tire pressure before
performing any deck leveling adjustments. Refer to
Tires on page 24 for information regarding tire pressure.
Front To Rear
The front of the cutting deck is supported by a stabilizer
bar that can be adjusted to level the deck from front to
rear. The front of the deck should be between 1/4-inch
and 3/8-inch lower than the rear of the deck. Adjust if
necessary as follows:
• With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position) and rotate the blade nearest the discharge
chute so that it is parallel with the tractor.
• Measure the distance from the front of the blade tip
to the ground and the rear of the blade tip to the
ground.
• The first measurement taken should be between
1/4" and 3/8" less than the second measurement.
• Determine the approximate distance necessary for
proper adjustment and proceed, if necessary, to the
next step.
• From the front of the tractor, loosen the hex lock nut
on each end of the deck hanger rod, and turn away
from the inner hex nuts. See Figure 8.

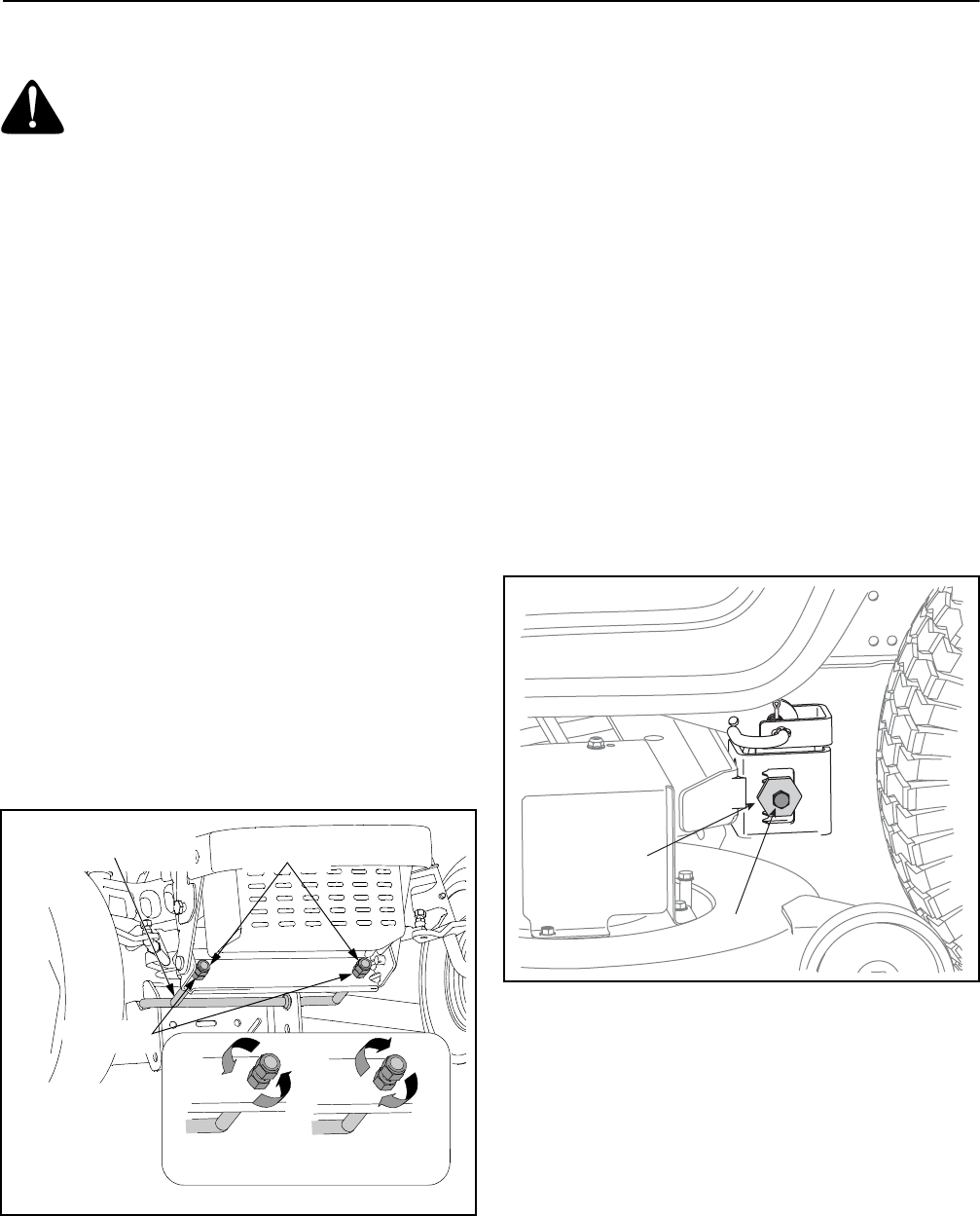

Figure 8
• Tighten the inner hex nuts front against the front
hanger bracket to raise the front of the deck; loosen
the hex nuts to lower the front of the deck. See
Figure 8.
• Retighten the two lock nuts against the inner hex
nuts when proper adjustment is achieved.
Side to Side
If the cutting deck appears to be mowing unevenly, a
side to side adjustment can be performed. Adjust if
necessary as follows:
• With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position) and rotate both blades so that they are
perpendicular with the tractor.
• Measure the distance from the outside of the left
blade tip to the ground and the distance from the
outside of the right blade tip to the ground. Both
measurements taken should be equal. If they’re
not, proceed to the next step.
• Loosen, but do NOT remove, the hex cap screw on
the left deck hanger bracket. See Figure 9.
Figure 9
• Level the deck by using a wrench to turn the
adjustment gear (found immediately behind the hex
cap screw just loosened) clockwise/up or
counterclockwise/down.
• The deck is level when both blade tip
measurements taken earlier are equal.
• Retighten the hex cap screw on the left deck
hanger bracket when proper adjustment is
achieved.
Raise Front
of Deck
Lower Front
of Deck
Hex Nut
Lock Nut
Deck Hanger Rod
Adjustment Gear
Hex Bolt
