User Manual

200 Series Single Stage Snow Throwers
4
5. CABLE REMOVAL
5.1. Remove the belt cover as described in the belt
removal section of this manual to expose the
Idler bracket. See Figure 5.1.
NOTE: It is necessary to remove the idler
bracket to remove the cable.
5.2. disconnect the return spring. See Figure 5.2.
NOTE: The return spring also acts as a brake
engagement spring.
5.3. Remove the bolt that the idler bracket pivots on
using two 1/2” wrenches. See Figure 5.3.
NOTE: The idler pulley is new for the 2005 man-
ufacturing season.
5.4. Disconnect the cable from the idler bracket.
5.5. Loosen but DO NOT remove the bolt that holds
the cable guide pulley onto the frame with one 7/
16” wrench on the outside of the housing and
one 7/16” wrench on the inside of the housing.
See Figure 5.5.

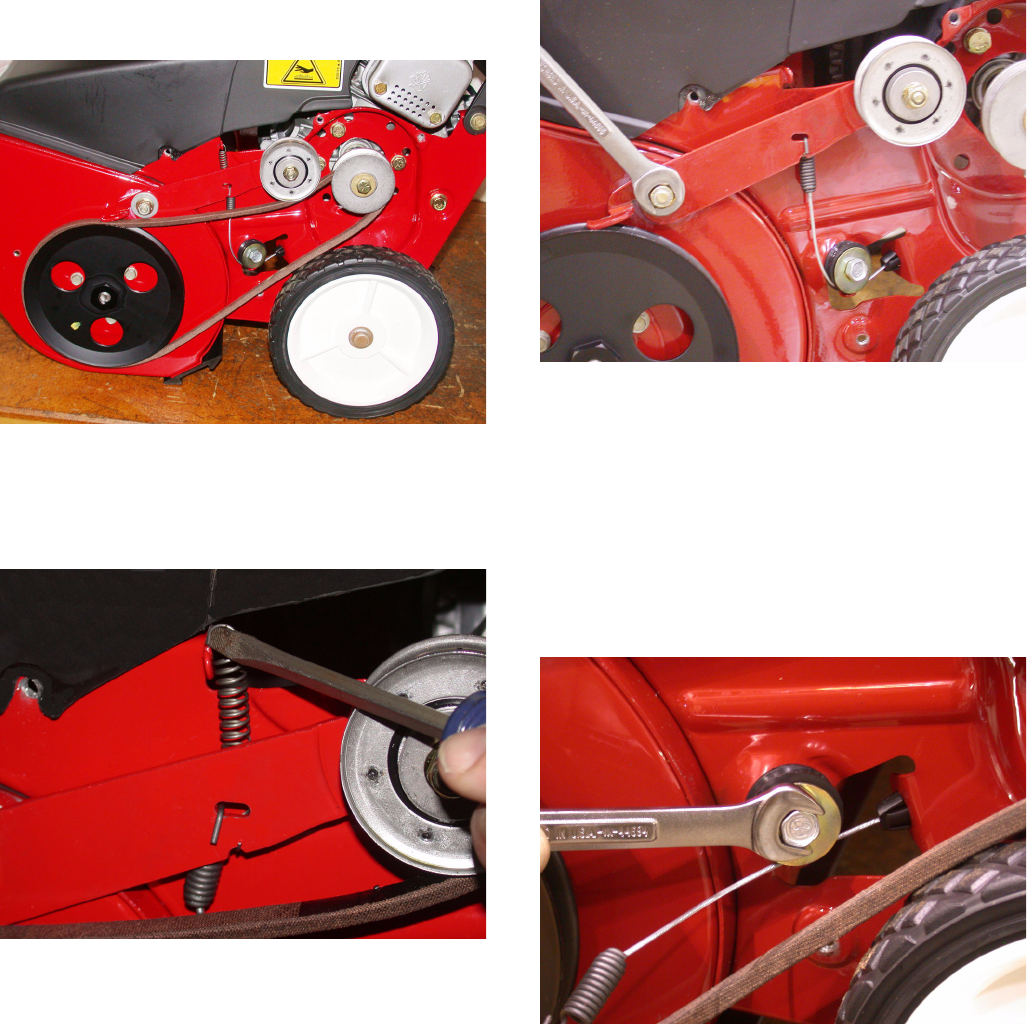

Figure 5.1
Figure 5.2
Figure 5.3
Figure 5.5
