Owners manual

14385 Veterans Way Moreno Valley, CA 92553

Phone: (951) 571-0212 Fax: (951) 571-0215

VEHICLE

CSS-C22-8

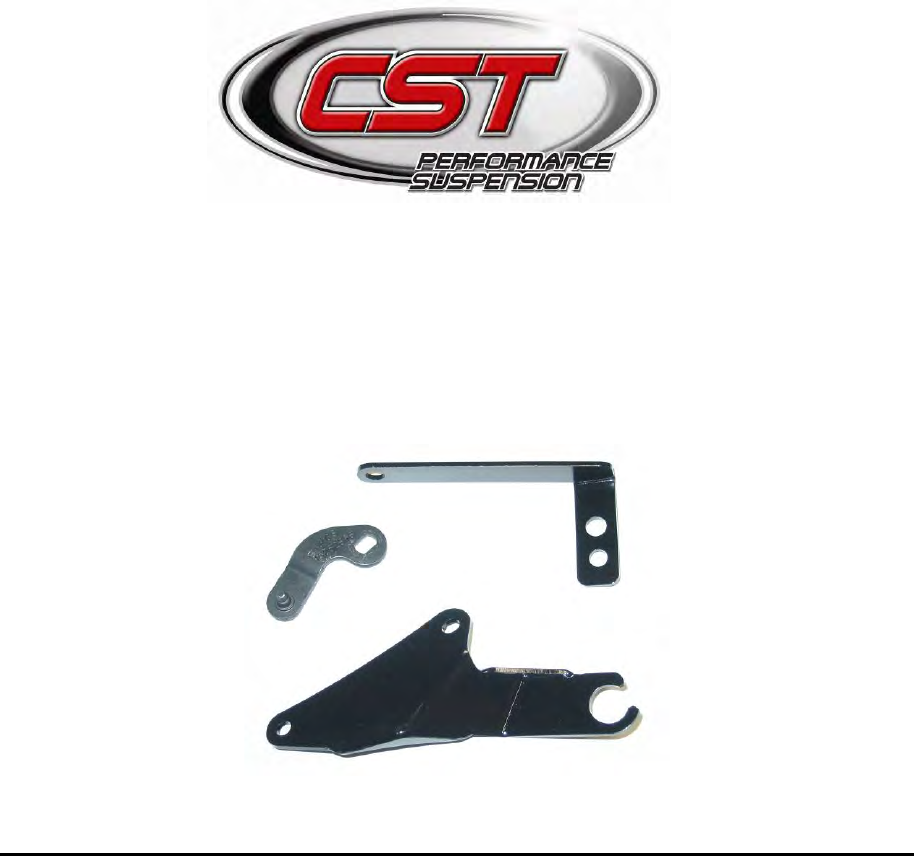

SHIFT LINKAGE RELOCATION KIT

READ THE FOLLOWING NOTES PRIOR TO INSTALLATION

Do not alter the finish of any components. Changing the finish such as chroming, zinc-plating, or

any type of painting, can cause structural fatigue of components.

Prior to installation, compare the parts list with the components received in the kit. If any pieces

are missing please contact your local retailer or CST performance suspension at 951-571-0212,

and you will be taken care of in a timely manor.

Read all instruction from start to finish before beginning

Installation. If these instructions are not properly followed, severe frame, tire, or suspension

damage may result to the vehicle. If you incur a problem during the installation of this kit, first

be sure you have followed the instruction from start to finish accurately and if so please call

951-571-0212, we will do our best over the phone to assist you with your problem, or direct

you accordingly.

Vehicles that receive over sized tires should check ball joints, tie rod ends and pivot points, as

well as generally inspect the entire suspension front to rear every 2500 – 5000 miles for wear

and replace parts as needed.

PAGE 1
4385 Veterans Way Moreno Valley, CA 92553 Phone: (951) 571-0212 Fax: (951) 571-0215 VEHICLE CSS-C22-8 SHIFT LINKAGE RELOCATION KIT READ THE FOLLOWING NOTES PRIOR TO INSTALLATION Do not alter the finish of any components. Changing the finish such as chroming, zinc-plating, or any type of painting, can cause structural fatigue of components. Prior to installation, compare the parts list with the components received in the kit.
PAGE 2
INSTRUCTIONS: 1. Remove the clamp that holds the dust boot to the driveshaft. Spread the part that is crimped with a flathead screwdriver to free up the clamp. 2. Remove the bolts that hold the front of the driveshaft to the front differential and remove the driveshaft. 3. Separate the shift cable from the shift lever on the transmission, use caution not to damage the end of the cable. 4. Remove the steel retainer clip that secures the shift cable to the shift cable bracket. 5.
