1 Introduction
1.1 Operational Overview
The LoCate-001 vehicle unit provides a specific set of features for vehicle
security and vehicle tracking through the integration of Cellular Control Channel
data communications, Global Positioning System (GPS) technology, and an
intelligent power management. This basic vehicle security, vehicle tracking, and
event monitoring solution can be utilized in a stand-alone mode or in conjunction
with a users personal communications system (cellular telephone, SMR network,
or LMPR network).
1
LOJACK NETWORK/ISP
Customer Calls Call
Center on His/Her
Cell Phone (any type)
2
3
The Call Center Verifies
the User’s ID…...
If the User’s Location
is Needed the Network
Pings the Vehicle
4
The Vehicle
Responds With
Position & Status
Users
Cellular/PCS
Carrier
Aeris
Control Channel
Carrier
The User’s Concierge Service follows his/her
portable phone. It doesn’t remain in the
Vehicle.
Internet
Consumer’s Home
Consumer’s Office

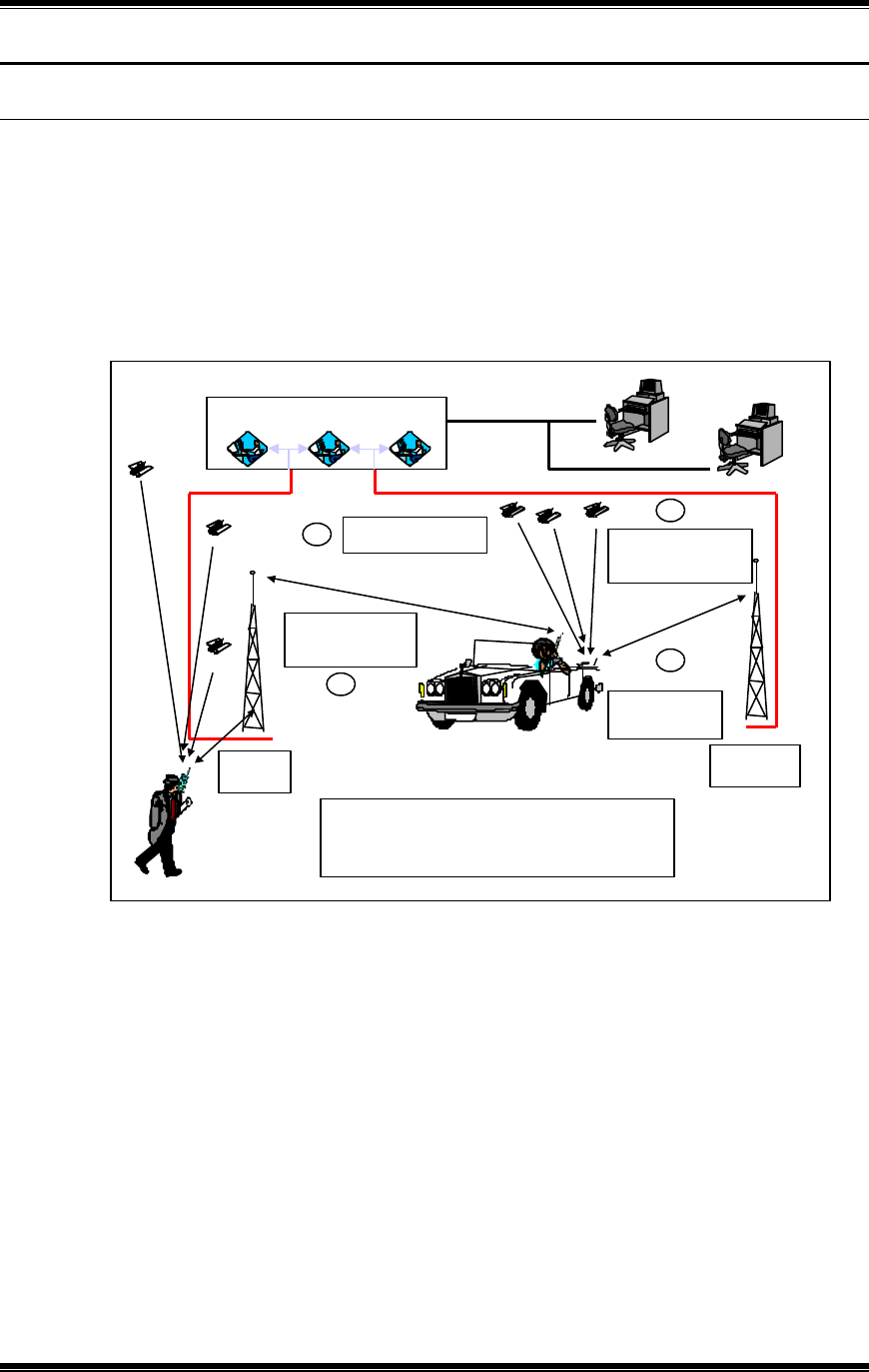

Figure 1 - Typical LoCate-001 Consumer Application
Figure 1 illustrates the typical consumer application. Standalone, the Consumer
LoCate-001 operates as a vehicle security system, reporting exceptions and
vehicle location through the Aeris Analog Control Channel Network. The
addition of the users private Cellular or PCS phone (calling the LoJack Concierge
Center) creates an end-to-end Telematics solution.
Figure 2 illustrates a commercial application of the LoCate-001. Standalone the
Fleet LoCate-001 provides Security, Automatic Vehicle Location, and Asset
Tracking. Combining the vehicle unit with the driver’s handheld Digital PCS
phone creates a complete Dispatching and Fleet Management Solution. The fleet
manager can send and receive messages via the LoJack Gateway and can monitor
the vehicle’s location on demand.
