4 Mechanical and Physical
4.1 Housing
The LoCate-001 consists of a PCB contained inside a housing. The approximate
size of the LoCate-001 is 156 mm (L) x 100 mm (W) x 25.4 mm (H).
1. The housing is aluminium cast.
2. Three mounting tabs will allow for use of a size 10 pan head screw.
3. The outside color of the housing is black.

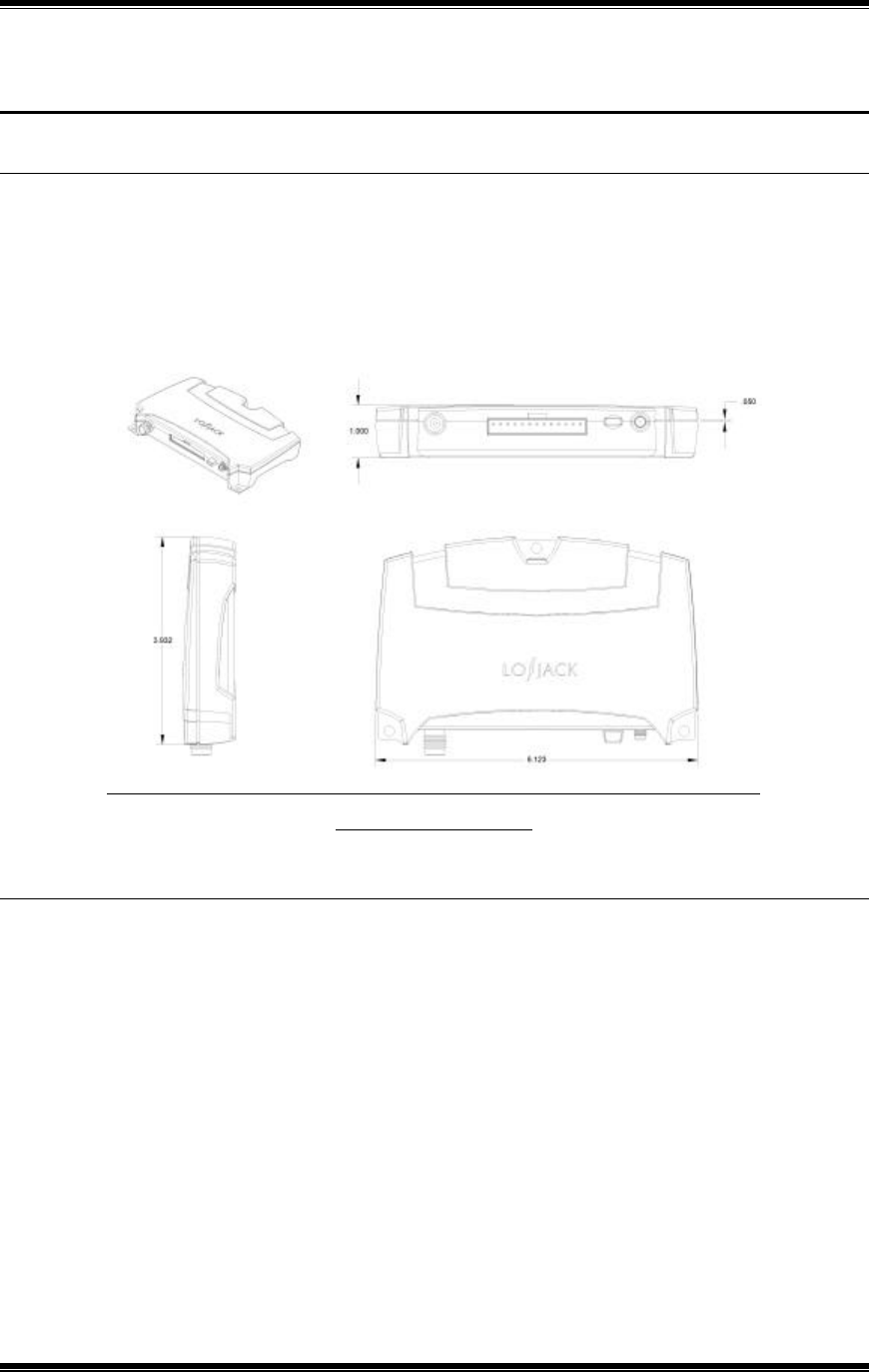

LoCate-001 housing
4.2 Connection & Identification Requirements
The LoCate-001 unit shall be supplied with the following;
1. 18 AWG twisted power (red) wire end stripped and tinned, and the
ground (black) wire terminated with a size TBD ring connector. Length
from cable over mold is approximately 11.5 inches (292mm). This
connection is to be brought out of the housing separately from the I/O and
RF connectors.
2. The I/O lines will terminate using a multi-pin connector mounted on the
housing.
3. Two labels with black lettering shall be fixed to the underside of the
LoCate-001 housing. The top label shall include the Barcode information
as detailed in paragraph 4.3 below. The label below shall contain the FCC
and DOC information.
4. No over pack box will be provided.
