The PVS Control Screen
31.6.1
Top of this Screen
- (camera and mounting information): During
camera viewing, the camera and mounting type
are identified here. Does not appear during
playback.

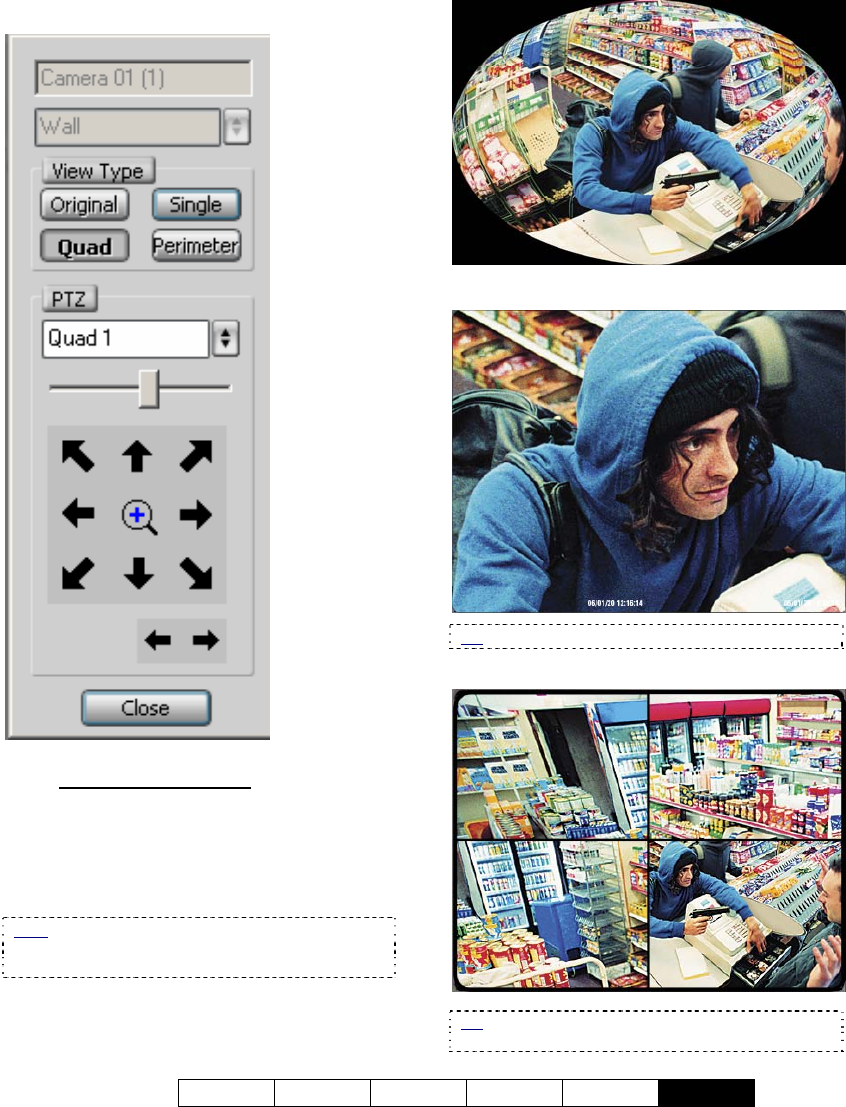

View Type
Note: The first time you change the view mode
after opening the PVS control, there will be a delay
(to load a DLL file).
- [Original]: Shows the original panoramic
image.
- [Single]: Shows the middle of the image.
Tip: This view supports virtual zooming and PTZ.
- [Quad]: Shows the image in four quadrants.
Tip: This view supports virtual zooming and PTZ
(one quadrant at a time).
