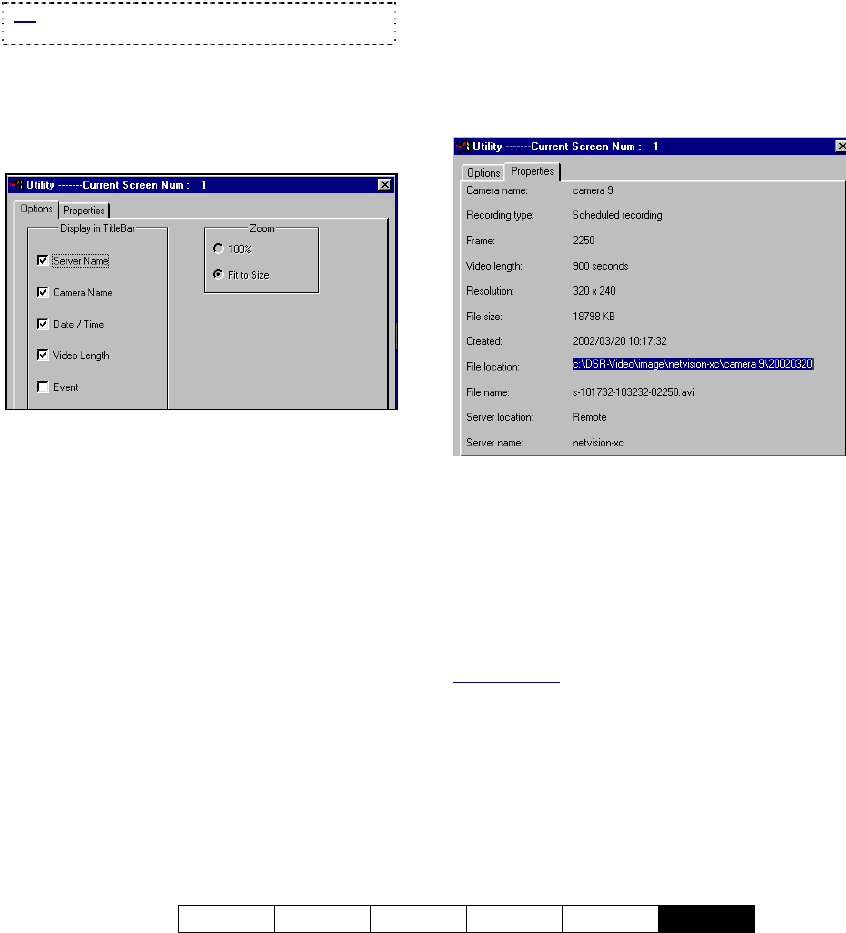

[Utility]: This button (bottom of the playback
window)
allows setting playback options (for the
selected playback area), and viewing
properties (for the presently-displayed video
file).
Tip: If in 'quad' playback mode, click the title-bar of
the desired window first.
Options : This allows setting the items
to appear in the title bar of the present
playback window, and setting the image size
(original size, or fit-to-window).
Properties : Click this to view detailed
information on the file that is presently in the
playback window.
Select "Save a Frame" Type : This
allows selecting a file-type for ALL 'snapshots'
saved through the quad playback screen.
(BMP or JPEG.)
Related Topics
:
16.1 Set up Cameras and Titles
16.4 Show Date and Time in Video Image;
28.1 The Video Playback Feature (Micro DVR)
28.8 Viewing and Printing 'Snapshots' (Micro DVR)
28.7
Window Options and File Properties (Micro DVR, Quad Player)
