21-0400E v2.3.3
Welcome Common Admin Config Install
Tech-Ref
117
25.3.4

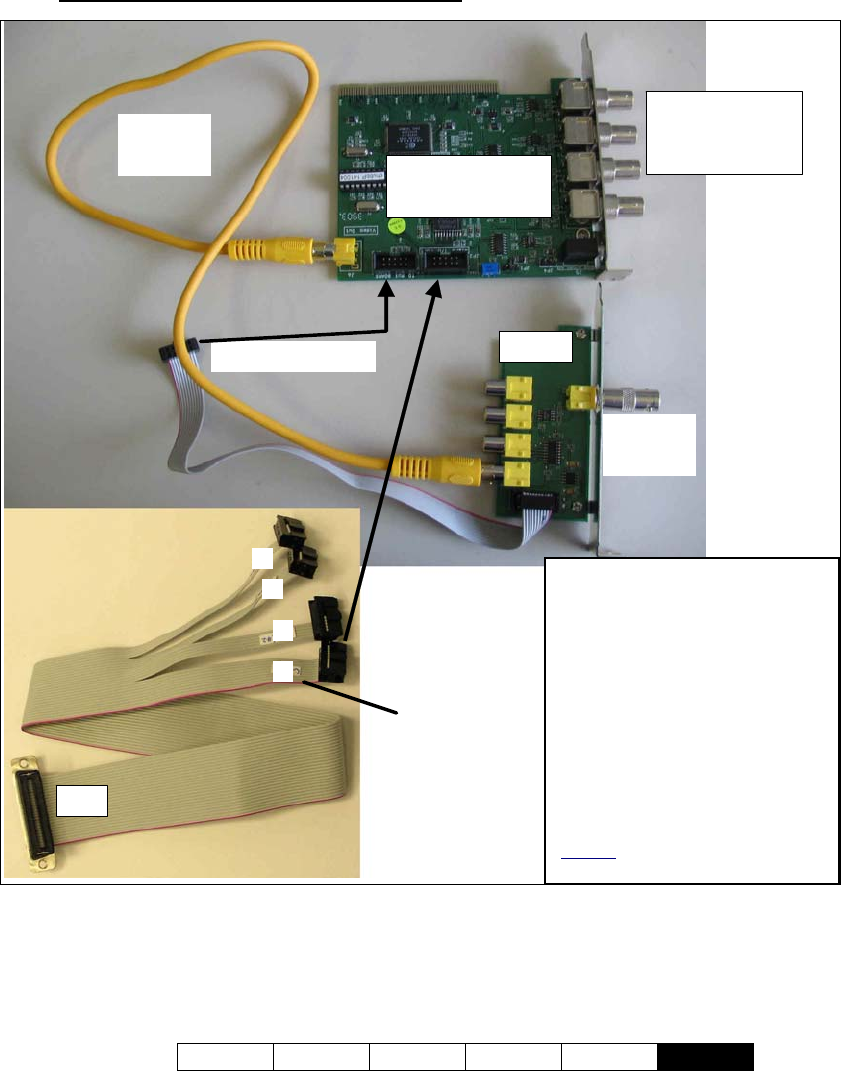

Connection Summary—NetVision Plus
TV-Out
to MUX
V
ideo Capture
(1 of 4)
Out to
TV
MUX
I/O
1
2
3
4
Red
Stripe
1
st
board only
To Video
Cameras
Also See: "25.2.3
Camera Numbering…"
Audio Inputs (NetVision Plus):
The Video Server PC includes
an integrated sound card with a
microphone jack and line-level
output for (self-powered) PC
speakers.
Video capture boards each
include one line-level audio input
(1/8” mono jack).
Bare microphones to connect
through a line-level input will
each require a suitable
microphone pre-amp.
Related: 25.1 Capture Board
Reference
