The SystemBuilder software provides 12 filters per output, with a maximum of
10 filters available for graphic EQ. SystemBuilder provides five modes of audio
equalization.
• 10 bands graphic EQ + 2 band parametric EQ. In this mode, the first 10
filters of the three channels are used to set up the fixed frequencies for
graphic equalization, leaving filters #11 and #12 available for
parametric EQ.
• 3 bands graphic + 9 bands parametric
• 5 bands graphic + 7 bands parametric
• 5 bands graphic + 7 bands parametric, with speech optimization
• 12 bands parametric (0 bands graphic)
NOTE: Programming the graphic equalizer through SIMPL Windows may
override the SystemBuilder software settings. For example, if the 12-band
parametric equalizer mode is specified in SystemBuilder and the SIMPL
Windows program selects/recalls filter preset #2, the system will allow the
change. Filter presets can only be recalled from SIMPL Windows and not
modified.

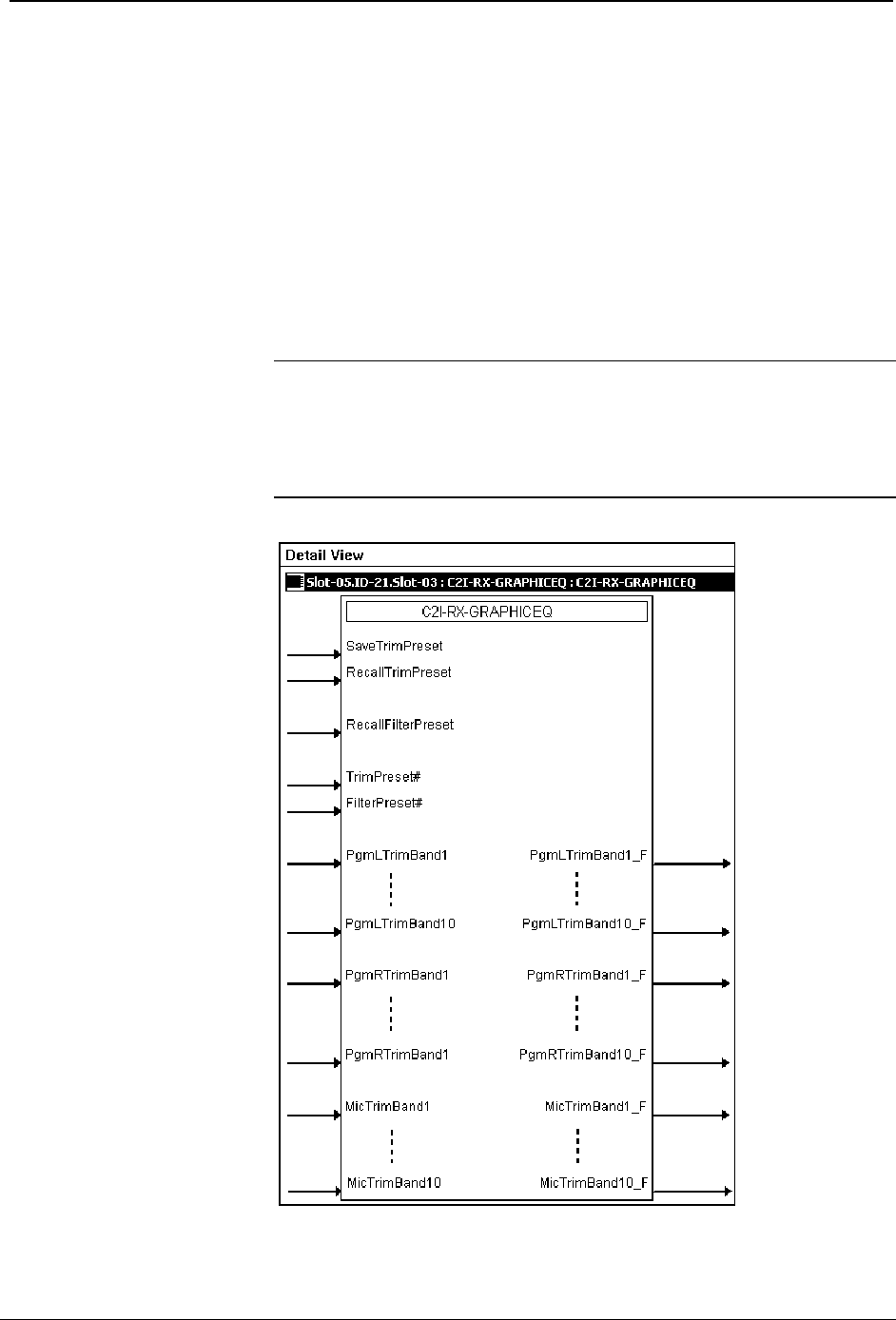

Detail View of Graphic Equalization Module
