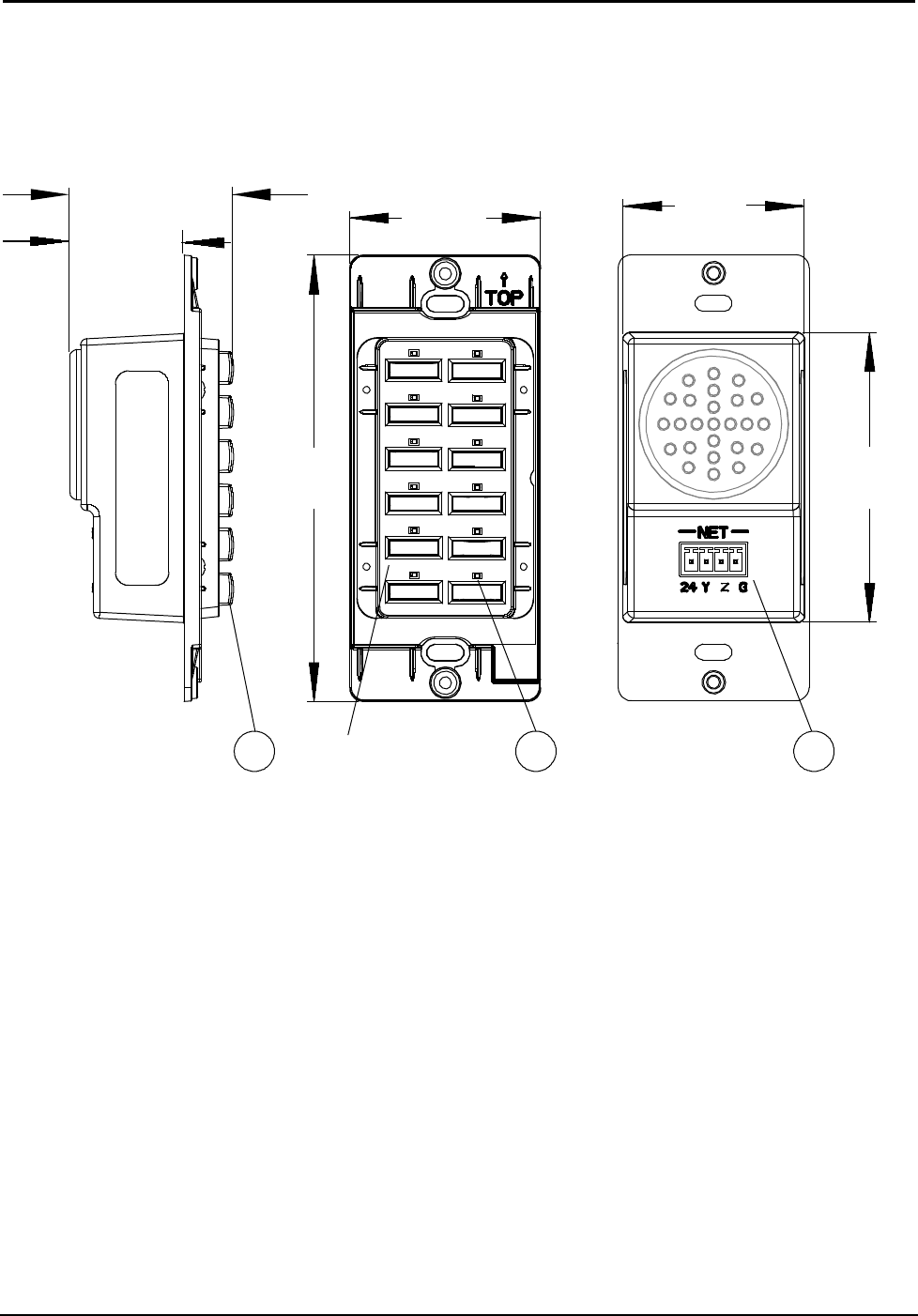

C2N-DBF12 & C2N-DBN12 Overall Dimensions
1.53 in
(39 mm)
1.07 in
(28 mm)
1.79 in
(46 mm)
4.16 in
(106 mm)
1.70 in
(44 mm)
2.70 in
(69 mm)
Rubber
Membrane
with Divider and
Buttons Removed
Front View Back View
with Buttons Installed
Side View
2 3
