Crestron C2N-DBF12 & C2N-DBN12 Decorator Keypads
Operations & Installation Guide – DOC. 6200C Decorator Keypads: C2N-DBF/N12
•
11
Hardware Hookup
Make the necessary connections as called out in the illustration below.
Refer to “Network Wiring” on page 8 before attaching the 4-position
terminal block connector. Apply power after all connections have been
made.
When making connections to the C2N-DBF/N12, use Crestron power
supplies for Crestron equipment.

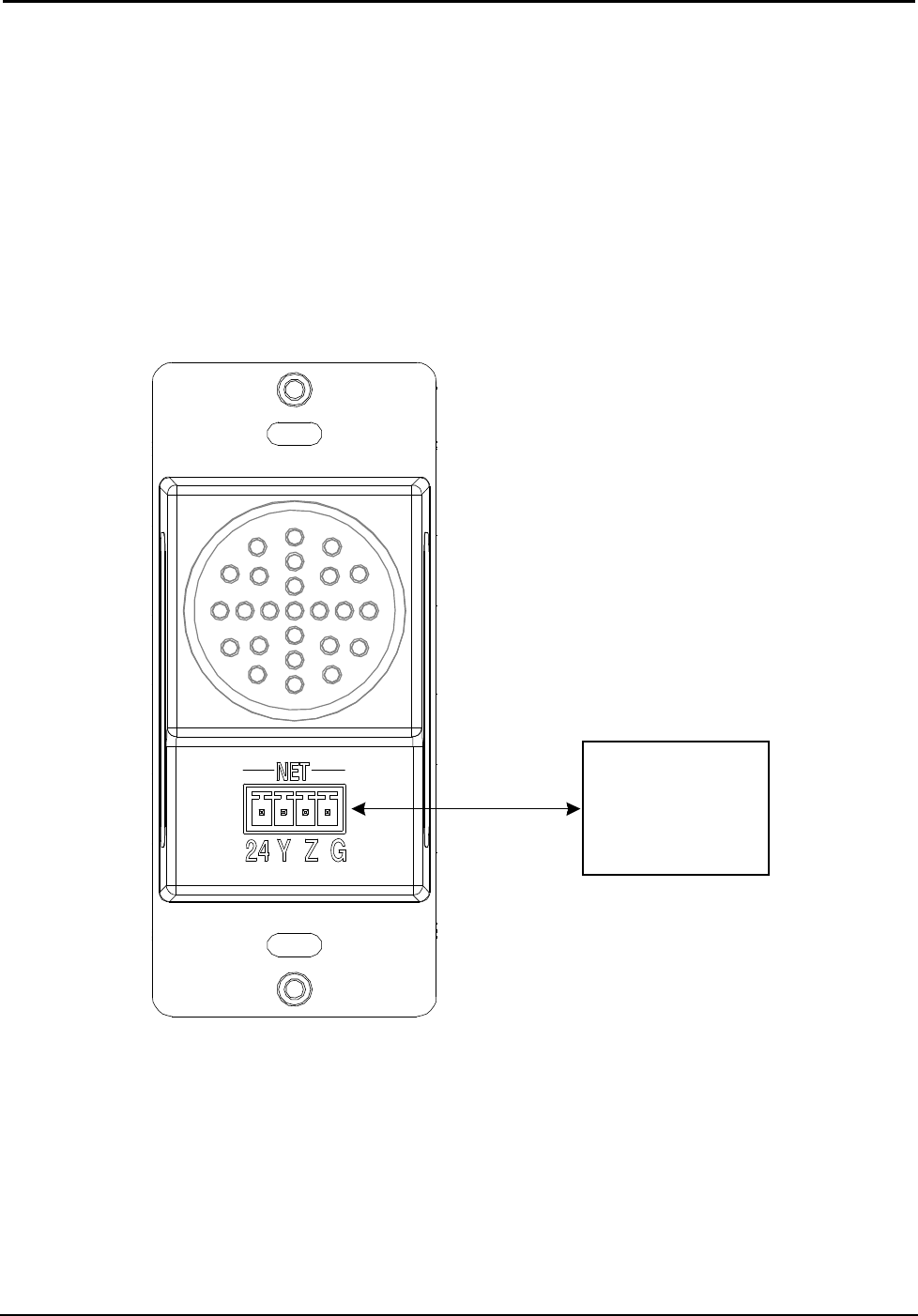

Hardware Connections for the C2N-DBF/N12 (Back view)
NET - 24 Y Z G:
Connect
to the
Cresnet
Control
Network
