Decorator Keypads: C2N-DBF/N12 Operations & Installation Guide – DOC. 6200C

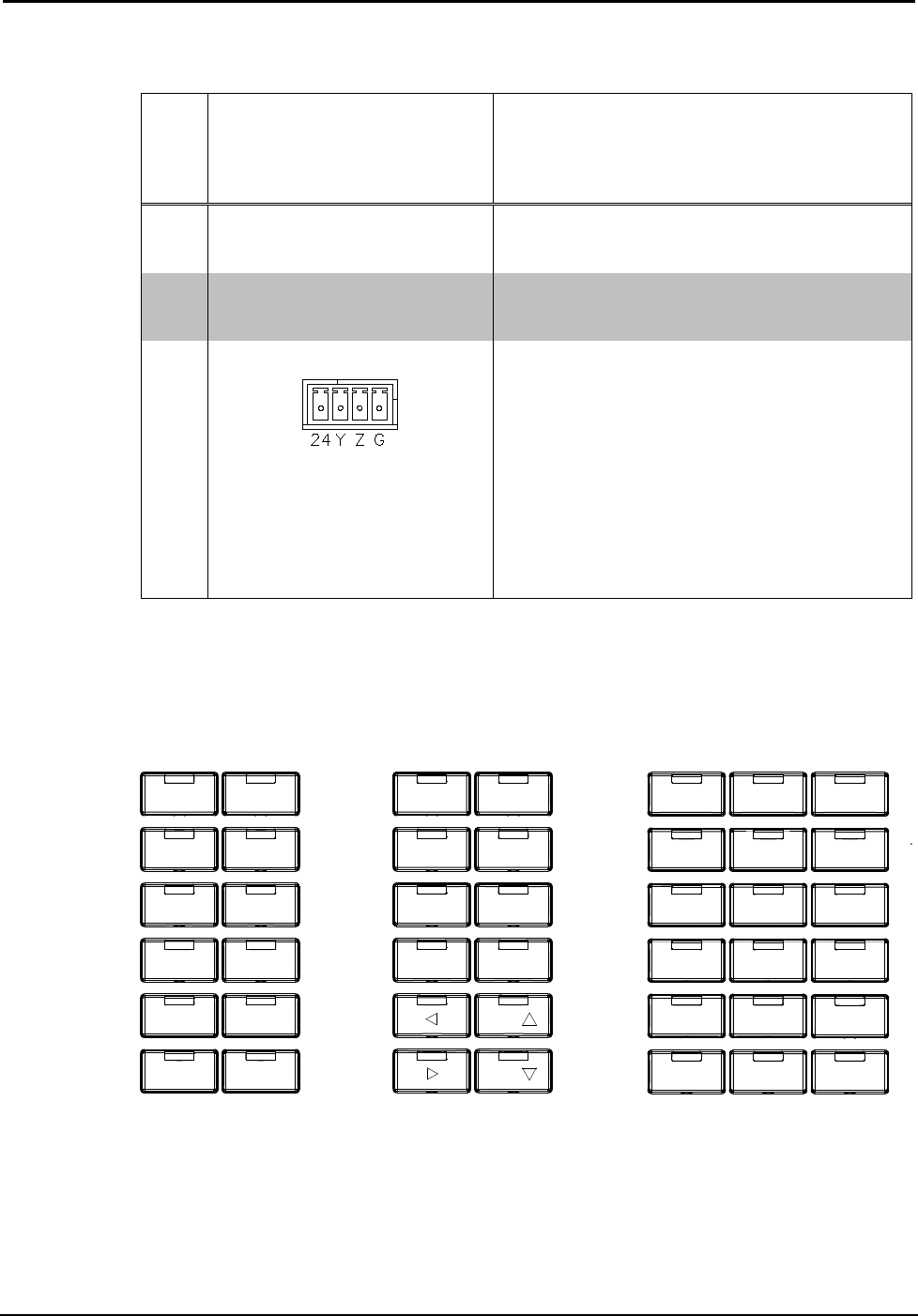

Connectors, Controls & Indicators
# CONNECTORS*,
CONTROLS &
INDICATORS
DESCRIPTION
1 Buttons
(12) Replaceable pre-labeled
buttons, programmable
2 LED Indicators (1 per button) Red LED,
programmable and dimmable
3 NET*
(1) 4-pin 3.5 mm detachable
terminal block;
Cresnet slave port, connects to
Cresnet control network;
24: Power (24 VDC)
Y: Data
Z: Data
G: Ground
* Interface connector for NET is provided with the unit.
Button Arrangements
CLEAR
1
5
3
9
7
2
ENTER
6
4
0
8
CD
JUKE
ON-OFF
IPOD
SAT
FM
MUTE
AUX
VOL
VOL
DVD
JUKE 2
SERVER
IPOD 2
ADAGIO
DSS 2
AM
SAT 2
SIRIUS TUNER
C2N-DBN12
C2N-DBF12
Extra Button Set
FM 2
MUSIC
SIRIUS
DSS
TV
VCR XM XM
C2N-DBF12
Standard Button Set
