Installation guide

Crestron C2N-FTB FlipTop Control Center with Cresnet
®

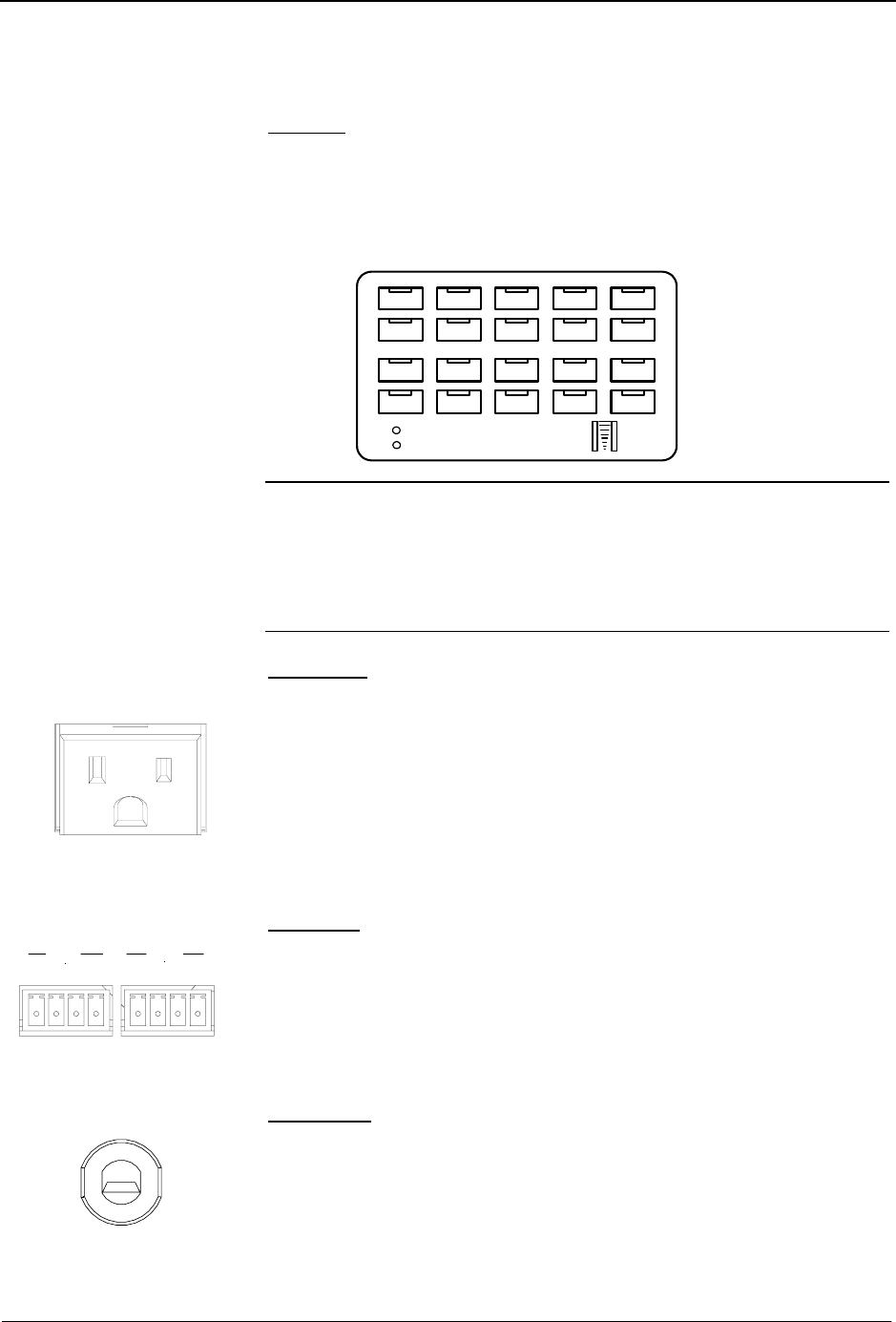

Controls and Ports (Top)
Buttons
The C2N-FTB can have 10 to 20 engravable, replaceable, programmable
buttons. All buttons are functionally identical and have light emitting diodes
(LEDs) that serve as user feedback indicators. The illumination of each LED
(on/off) is independently addressable, and programmable using SIMPL
Windows.
Row 1
Row 2
Row 3
Row 4
PWR
NET
12 345
678910
11 12 13 14 15
16 17 18 19 20
NOTE: Numbers in this illustration are for programming purposes only. Refer
to page 21 for programming information.
NOTE: The C2N-FTB is shipped with a set of ten buttons. Additional buttons
may be added by ordering button kits (refer to page 10).
NOTE: These button units do not support audio WAV files.
AC Outlet
125V – 50/60Hz 10A
The 3-prong grounded AC outlet is rated at 125 VAC @ 10 Amps, 50 – 60 Hz.
Ports (Underside)
NET (x2)
NET
24 Y Z G
NET
24 Y Z G
These two 4-pin terminal block connectors, located on the bottom side of the
C2N-FTB, are for connection to the Cresnet network. One connector is used to
connect to the Cresnet network while the second connector can be used to
connect another Cresnet device. Cresnet power to the C2N-FTB is supplied
through either of these connectors. For more information, refer to “Network
Wiring” on page 6.
AC Power
125V – 50/60Hz 10A
Connect the six-foot (183 cm) grounded AC line cord to supply AC power to the
outlet on the topside of the C2N-FTB.
Operations & Installation Guide – DOC. 6338 FlipTop Control Center with Cresnet
®
: C2N-FTB • 5
