Installation guide

FlipTop Control Center with Cresnet
®
Crestron C2N-FTB

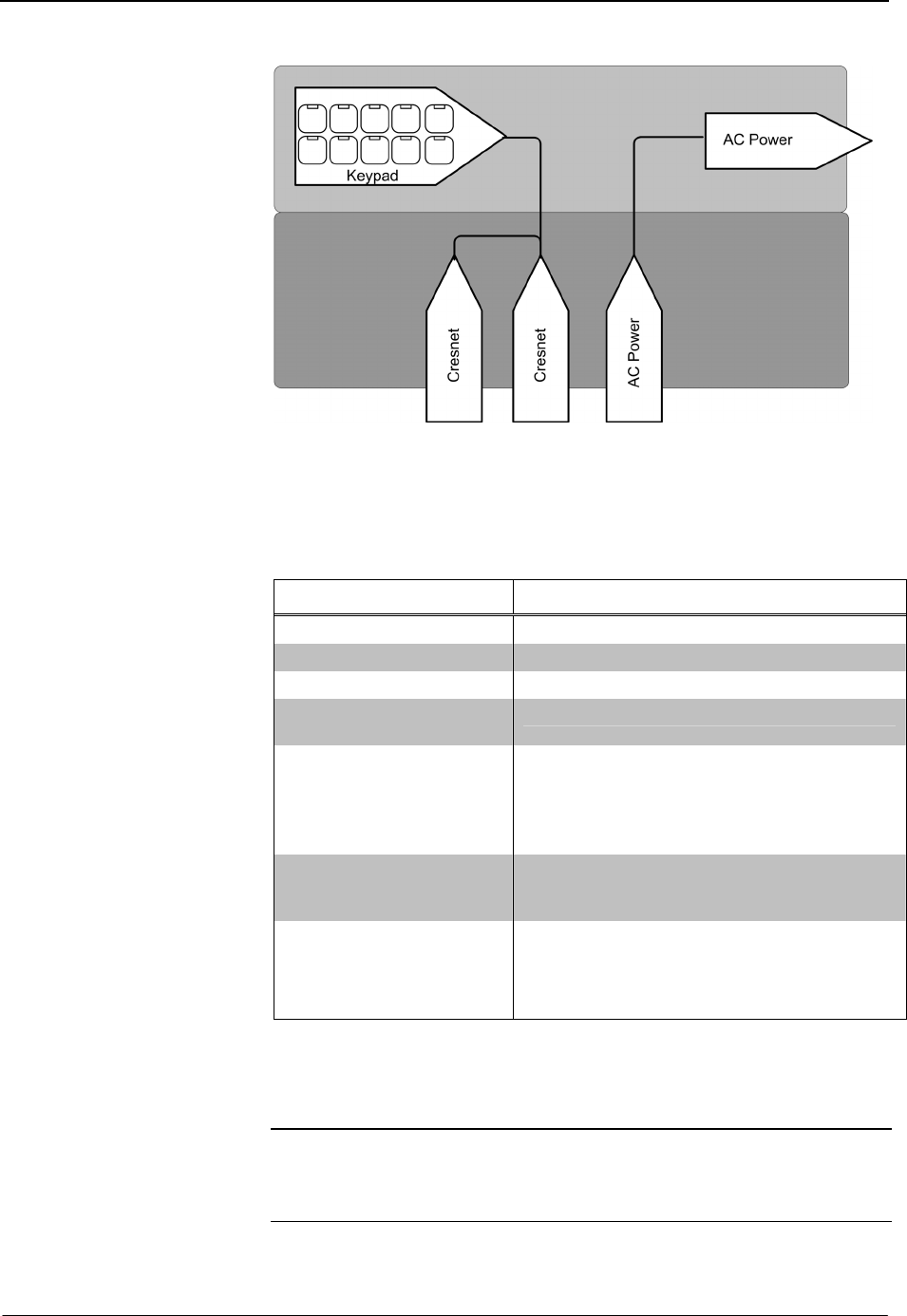

C2N-FTB Block Diagram
Specifications
Specifications for the C2N-FTB are given in the following table.
C2N-FTB Specifications
SPECIFICATION DETAILS
Cresnet Power Usage 2 Watts (0.082 Amp @ 24 VDC)
Default Network ID 1E
Firmware C2N-FTB.V.1.00.upg or later
2-Series Control System
Update Files
1,2
Version 3.125.CUZ (for QM-RMCRX) or later
Connectors
Cresnet (2) 4-pin terminal blocks
Ground (1) Ground Terminal
AC (1) AC Outlet
Operating Temperature and
Humidity
41º to 104º F (5º to 40º C)
10 to 90% relative humidity
(non-condensing)
Dimensions and Weight Width: 6.75 in (17.13 cm)
Height: 5.39 in (13.68 cm) with top closed
Depth: 5.71 in (14.49 cm)
Weight: 3.75 lbs (1.70 kg)
1. The latest software versions can be obtained from the Crestron website
(www.crestron.com/updates). Refer to the NOTE following these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product
Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the website are for Authorized
Crestron dealers and Crestron Authorized Independent Programmers (CAIP)
only. New users are required to register to obtain access to certain areas of the
site (including the FTP site).
2 • FlipTop Control Center with Cresnet
®
: C2N-FTB Operations & Installation Guide - DOC. 6338
