Installation guide

FlipTop Control Center with Cresnet
®
Crestron C2N-FTB
The procedure in this section provides details for RS-232 communication
between the PC and the control system. If TCP/IP communication is preferred,
consult the latest version of the Crestron e-Control Reference Guide (Doc. 6052)
or the respective Operations Guide for the control system. These documents are
available from the Crestron website. Refer to the following figure for a typical
connection diagram when uploading files.

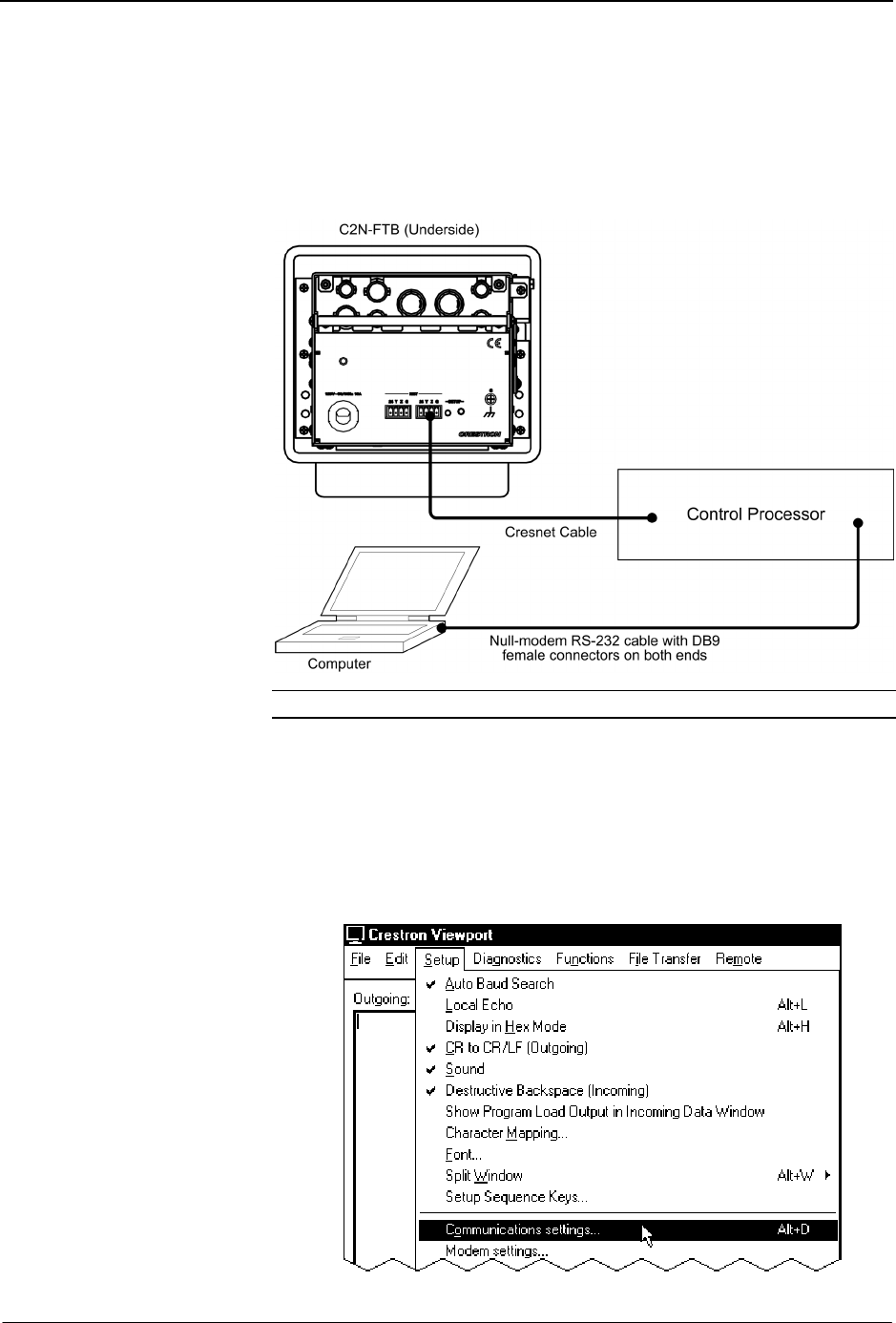

Typical Connection Diagram when Uploading
NOTE: Use a standard DB9 “Null-Modem” cable.
1. Open the Crestron Viewport. Either launch the stand-alone version of
Viewport, or start SIMPL Windows and from the menu bar, select
Tools | Viewport.
2. Refer to the figure after this step. From the Viewport menu, select
Setup | Communications settings (alternatively, press Alt+D) to open
the “Port Settings” window.
Setup | Communications Settings Command
