Crestron C2N-FTB FlipTop Control Center with Cresnet
®
C2N-FTB Symbol in Programming Manager

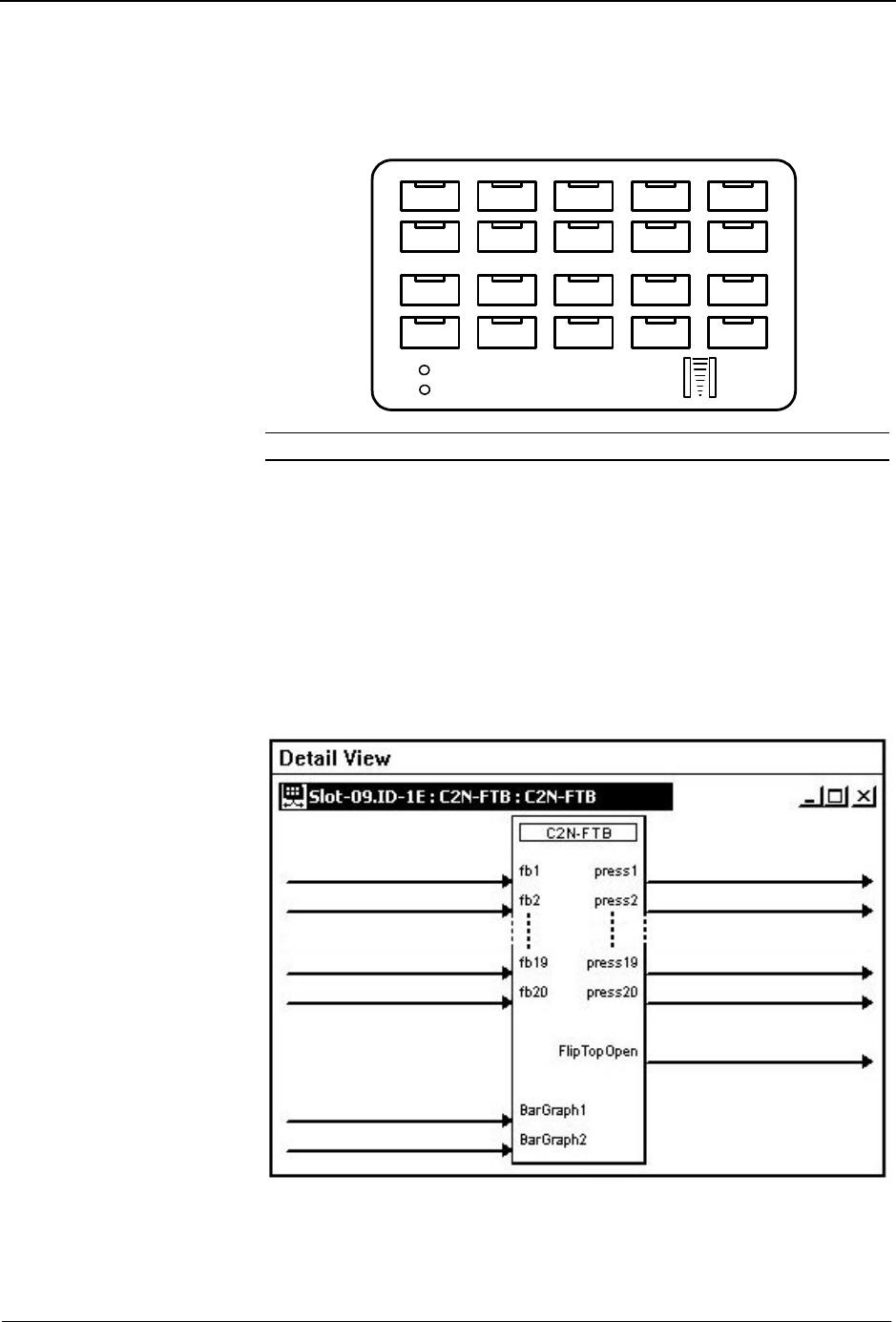

The Buttons module is built into the C2N-FTB. It consists of a 10 to 20 button
keypad with LED indicators, and two bargraphs. The button presses are fixed
and map to <press> outputs on the symbol detail, as follows:
Row 1
Row 2
Row 3
Row 4
PWR
NET
12 345
678910
11 12 13 14 15
16 17 18 19 20
NOTE: Numbers in this illustration are for programming purposes only.
The buttons on rows 1 and 2 can be combined vertically to form one larger
button. For example, the button caps for buttons #1 and #6 can be replaced with
one larger button cap. Similarly, the vertical pairs on rows 3 and 4 can be
combined to form one larger button. For example, buttons #13 and #18 can be
combined. No other combinations are valid. That is, two buttons cannot be
combined horizontally; the buttons on rows 2 and 3 cannot be combined.
Programming Manager is where programmers “program” a Crestron control
system by assigning signals to symbols. The following diagram shows the
C2N-FTB symbol in the SIMPL Windows’ Programming Manager.
C2N-FTB Symbol – Detail View of Buttons
