Installation guide

Crestron C2N-FTB FlipTop Control Center with Cresnet
®

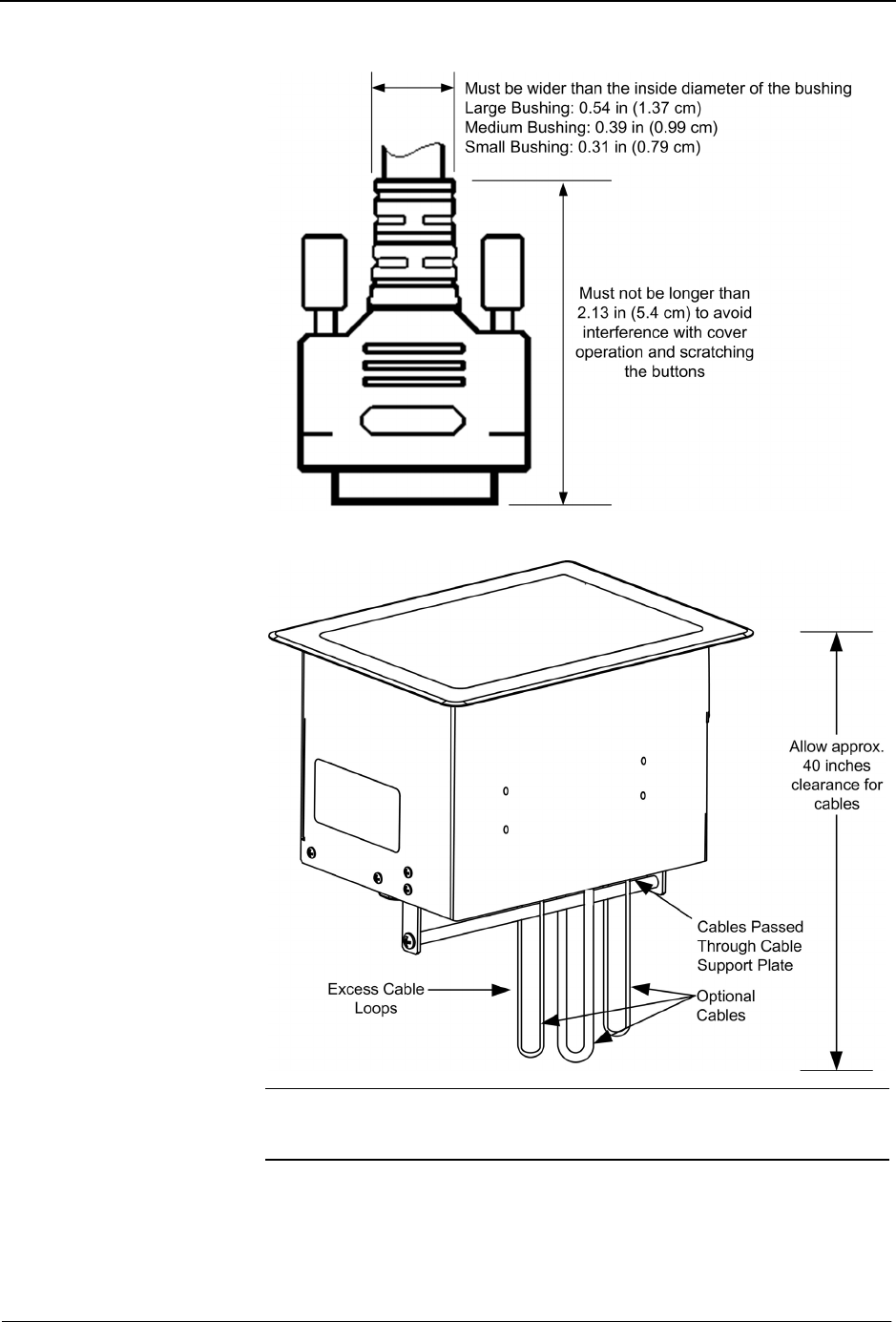

Example Cable End
Cable Loops Through the Cable Management Plate
NOTE: Ensure that the cables have sufficient clearance to enable smooth
movement. Allow approximately 40 inches (102 cm) from the top surface of the
FlipTop box.
Mounting to Surface
The C2N-FTB is designed to mount in a horizontal surface, such as a desk top,
lectern, or podium. The following diagram illustrates the required opening size
to accommodate the C2N-FTB. A cutout template (4006405) is included.
Operations & Installation Guide – DOC. 6338 FlipTop Control Center with Cresnet
®
: C2N-FTB • 13
