FlipTop Control Center with Cresnet
®
Crestron C2N-FTB
CAUTION: This function does not prevent you from setting duplicate IDs. Be
sure to check current assignments before entering the desired Cresnet ID
number.
Serial Number to TSID Conversion
This utility is useful in a case where there are multiple devices of the same type
on a network, you need to locate a particular one, you know the TSID but not
the serial number, and your site installation list is based on device serial
numbers. In this (or the reverse) situation, do the following:
1. Open the Crestron Viewport.
2. From the Viewport menu, select Functions | Serial Number ÅÆ
TSID Conversion Tool. The “Serial Number ÅÆTSID Conversion
Tool” window is displayed.

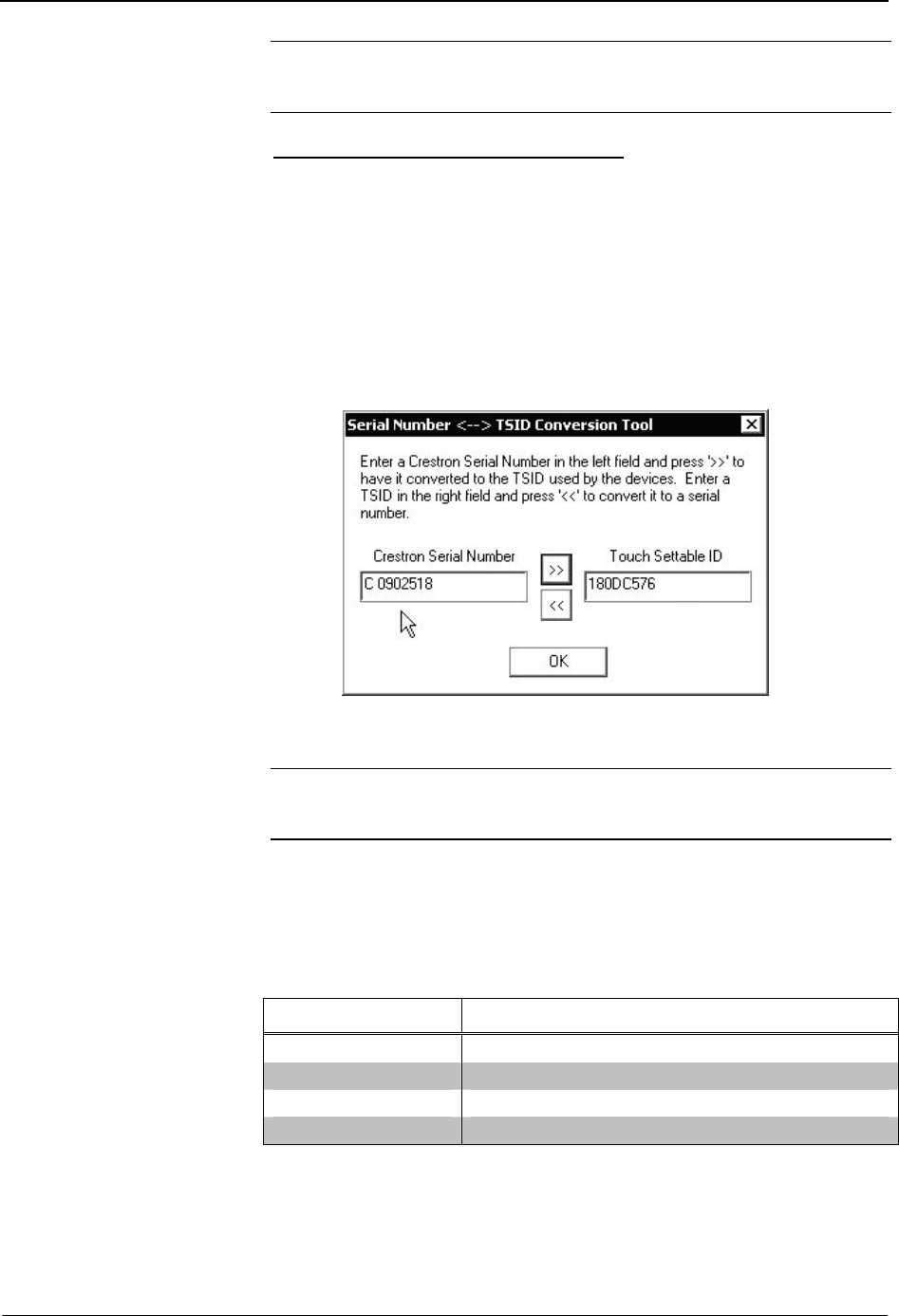

“Serial Number to TSID Conversion Tool” Window
3. Enter the serial number or TSID number as instructed; press the
appropriate button to obtain the corresponding number.
NOTE: Enter serial numbers, including spaces, exactly as they appear on the
unit label. Alpha characters in serial numbers or TSID numbers may be entered
in upper or lower case.
Installation
The C2N-FTB is shipped with ten large blank buttons. You can order a variety
of button kits (sold separately) to add as many as 20 engraved or blank buttons.
Button Kits
KIT NUMBER DESCRIPTION
FT-BTNB-L One large button engraved as desired
FT-BTNB-L-BLANK One large button not engraved
FT-BTNB-S Two small buttons with divider engraved as desired
FT-BTNB-S-BLANK Two small buttons with divider, not engraved
Button Installation
To replace the large buttons with small buttons, follow this procedure.
A 1/16" Allen (hexhead) wrench is required to remove the button faceplate.
