Crestron CWD6609 Two-Way RF Transceiver Module

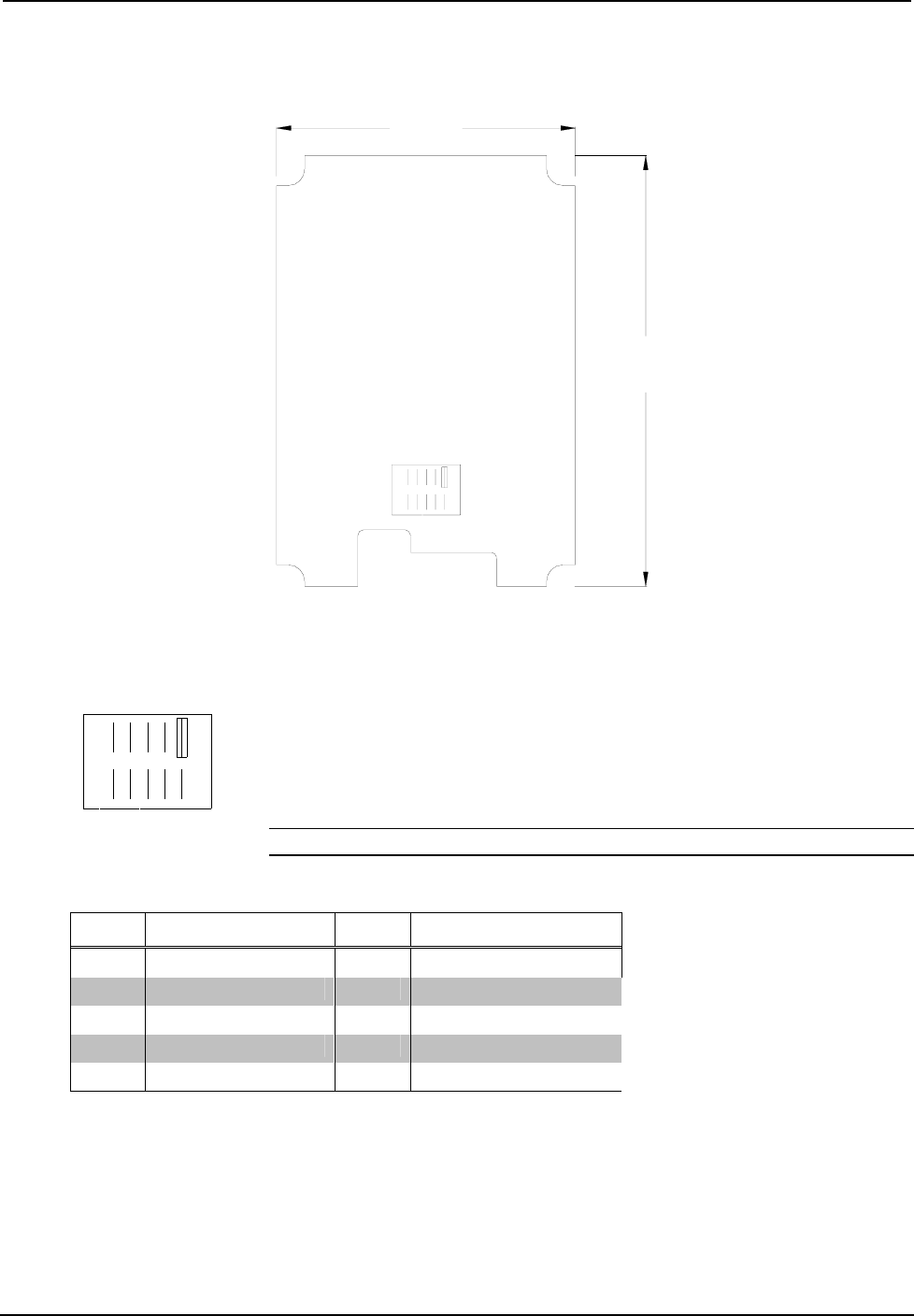

CWD6609 Detail Views
10
9
2
1
2.35 in
(5.98 cm)
1.64 in
(4.15 cm)
Ports
The module contains a 10-pin connector. Refer to the diagram and description that
follow.
Power/I-O
1
2
9
10
The 10-pin connector provides power to the module as well as communications
between the module and wired devices. Refer to the following table for pin
assignments of the module interface connector.
NOTE: Pin 1 provides power to the circuit card.
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1
+5V 6 REMOTE_B/CONFIG
2
TRIAC/RELAY 7 GND
3
ZERO_X 8 3.3v
4
REMOTE_A/RELAY 9 GND
5
GND 10 GND
