User's Manual

Two-Way RF Transceiver Module Crestron CWD6609
Specifications
The table below is a summary of specifications for the CWD6609.
Specifications of the CWD6609
SPECIFICATION DETAILS
Power Requirements 0.58 Watts (5.0VDC @ 0.115A)
Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant)
Operating Ranges¹
Minimum Distance
Maximum Distance Indoors
(without repeater device)
3 ft
50 ft
Available Channels 16 (numbered 11 through 26 per 802.15.4)
RF Output Power 1.67 mW
Dimensions Width: 1.64 in (4.15 cm)
Height: 2.35 in (5.98 cm)
Depth: 0.66 in (1.68 cm)
1. The location and the orientation of the module are important factors in the RF performance. The
range is dependent on its placement and the building in which it is used. The construction of the
building, obstructions, and RF interference from other devices are factors determining the effective
range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same
frequencies should not be installed within 3-5 feet of each other.
Physical Description
The module, shown below, consists of various components attached to a printed
circuit board. A circuit-board mounted antenna is located at the top of the board
while a 10-pin connector for the application-specific installation is located at the
bottom of the board.

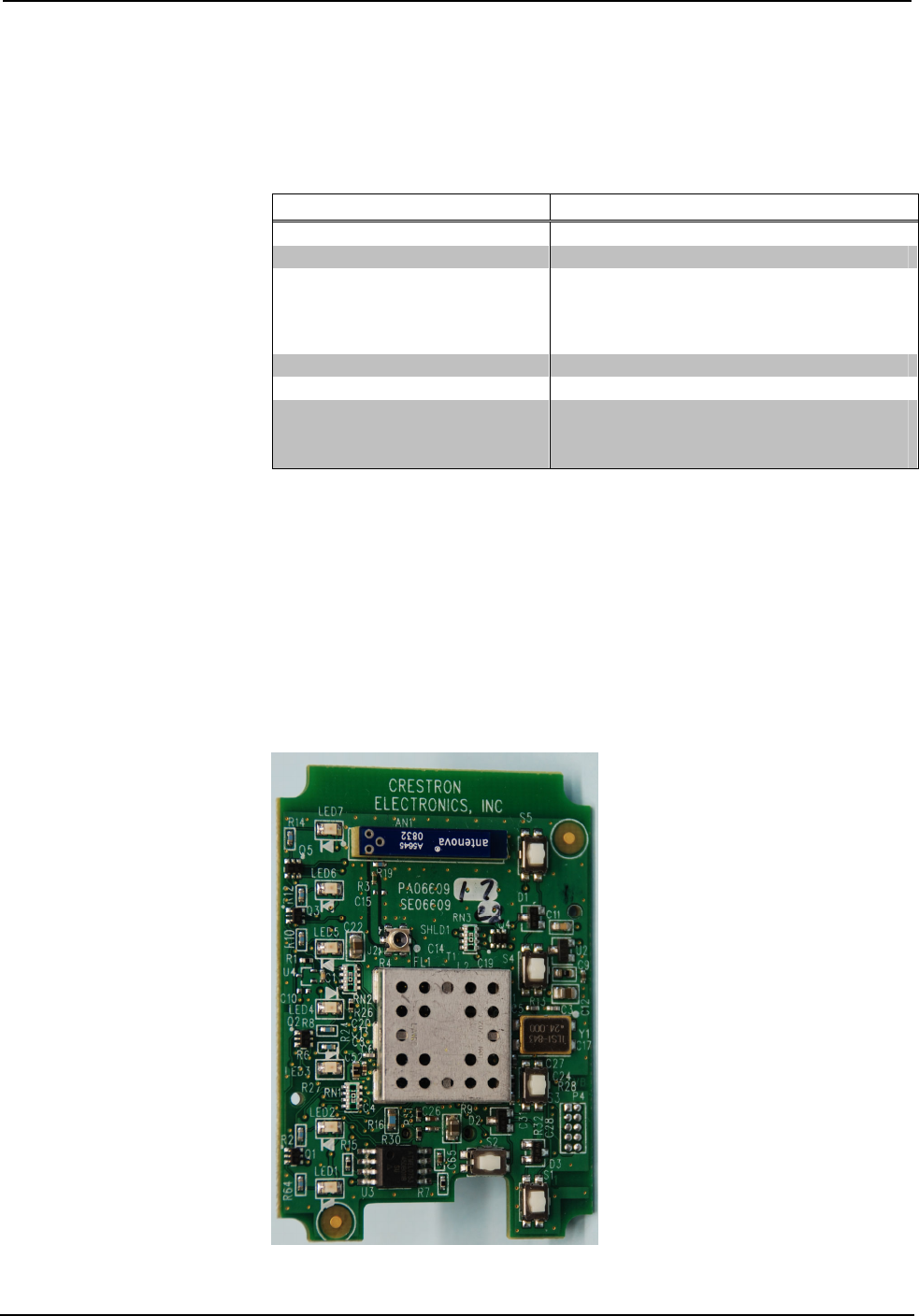

Physical View of CWD6609
2 • Two-Way RF Transceiver Module: CWD6609 Operations Guide - DOC. 6838A
