User's Manual

Two-Way RF Transceiver Module Crestron CWD6609
Setup
Hardware Hookup
Refer to the hookup diagram below, which shows the connections made to the
module. Complete the connections in any order.
NOTE: To prevent unit-to-unit RF interference, multiple modules operating at the
same frequencies should not be installed within three to five feet of each other.

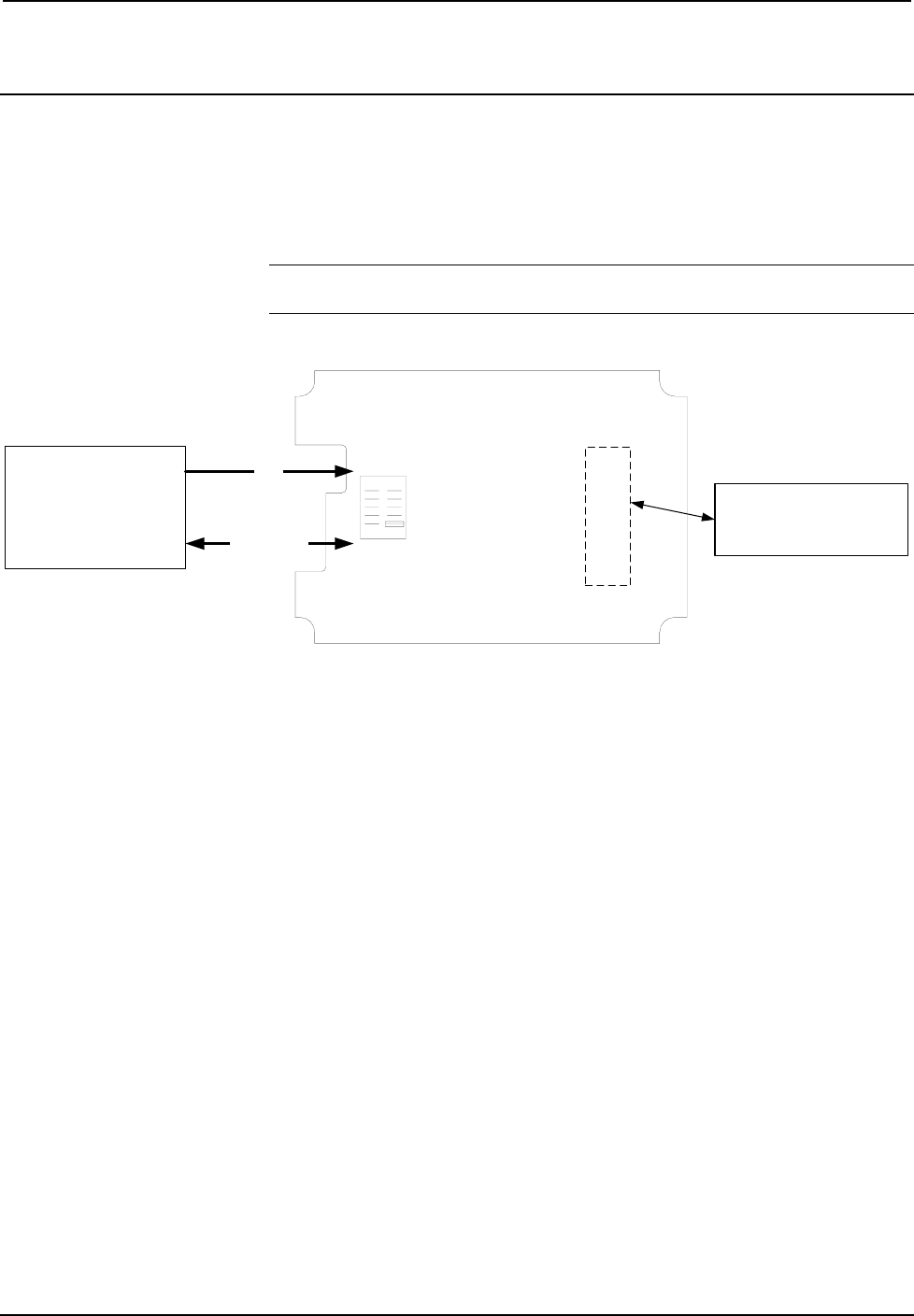

Hookup Connections for CWD6609
10
9
2
1
ANTENNA:
TRANSMITS AND RECEIVES
RF SIGNALS
(LOCATED ON OTHER SIDE)
HOST PCB
+5V
CONTROL
For more information on these connectors, refer to “Ports” on page 3.
6 • Two-Way RF Transceiver Module: CWD6609 Operations Guide - DOC. 6838A
