Installation Instructions

LPN000180_H
2 of 3
INSTALLATION
NOTE: For ease of installation, Cree recommends using a deep
wall box.
STEP 1:
Disconnect power to circuit by turning circuit breaker OFF
before installation.
STEP 2:
If necessary remove existing wall plate and switch.
STEP 3:
Strip existing wires ½". If two wires will be connected to the
same terminal on the CWD-CWC or CWS-CWC device, both
wires must be the same gauge (12AWG or 14AWG).
STEP 4:
Wire the LINE (black), NEUTRAL (white), and GND (green or
bare) supply wires to the corresponding pigtail leads on the
CWD-CWC or CWS-CWC, as shown in Figure 3.
NOTE: If replacing an existing wall switch, the wall control shall
be wired as instructed; however, the switched power to the
load must also be tied directly to the AC supply leads.
STEP 5:
Attach the wall plate (reference the wall plate instruction
sheet).
STEP 6:
Switch the circuit breaker ON.
STEP 7:
Press and release the OFF paddle. The blue LED should blink
twice and then go off. If the blue LED does not respond with
the two-blink sequence, please follow the RESET instructions
to return the wall control to factory defaults.
RESET WALL CONTROLS
STEP 1:
Press/Hold (approx 30 sec) ON paddle until the LED flashes
fast.
STEP 2:
Briefly release the paddle for less than
1 sec (Fast flashing continues)
STEP 3:
Press/Hold ON paddle for 1 sec until fast flashing stops. If
the blue LED does not respond with the two-blink sequence,
please repeat the RESET procedure.
CLEANING
Clean using a cloth dampened only with water and a little mild
detergent. Use of solvents or hydrocarbon-based cleaners may
cause permanent damage.

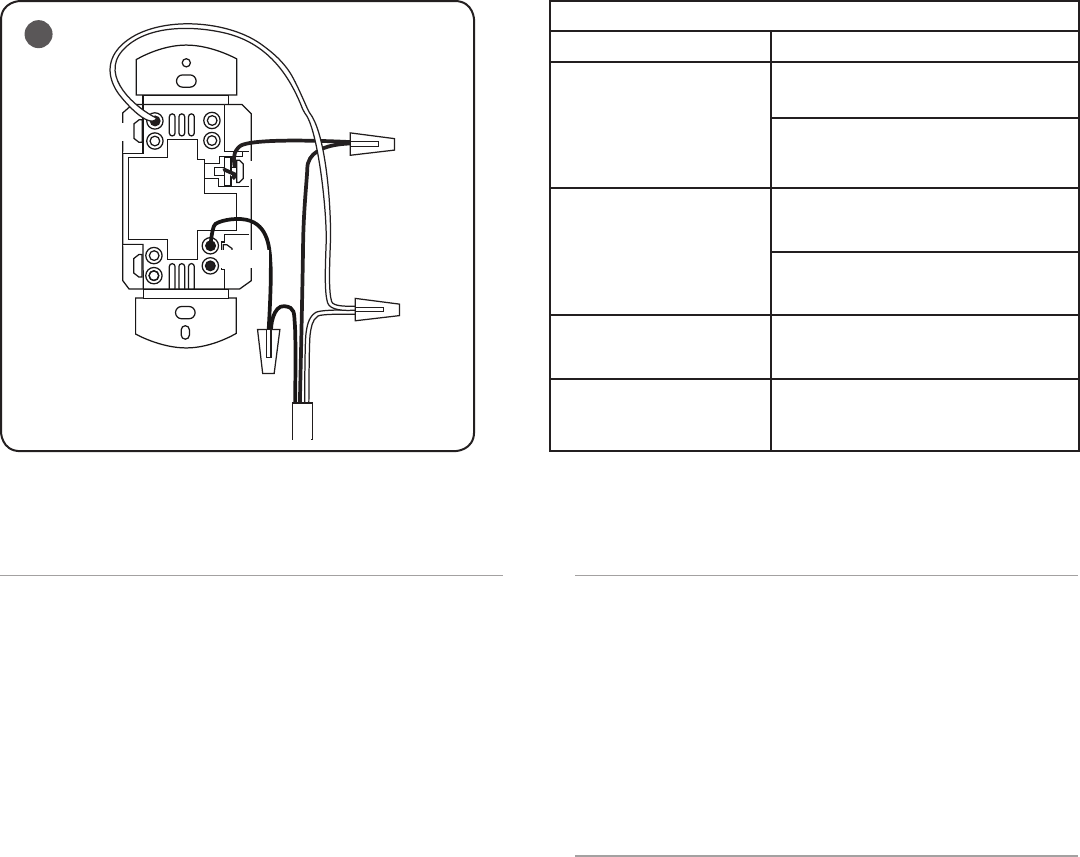

NEUT
GND
LINE
SUPPLY
LEADS
3
Wall Control Troubleshooting
Issue Resolution
Wall Control LED does not
blink in a 2-blink sequence
prior to OneButton™ Setup
Check wiring
(LINE/NEUT/GND required)
Reset Device and verify 2-blink sequence
for the LED
Wall Control will not join a
network
Check wiring (NEUT required)
NOTE: LED may illuminate if NEUT not
connected
Reset Device and verify 2-blink sequence
for the LED
Replaced existing Wall
Control and fixtures will not
turn on
Check Wiring (each fixture shall be wired
with constant HOT)
Wall Control will not control
fixtures
Check group assignments with
Configuration Tool
