LPN000180_H

1 of 3

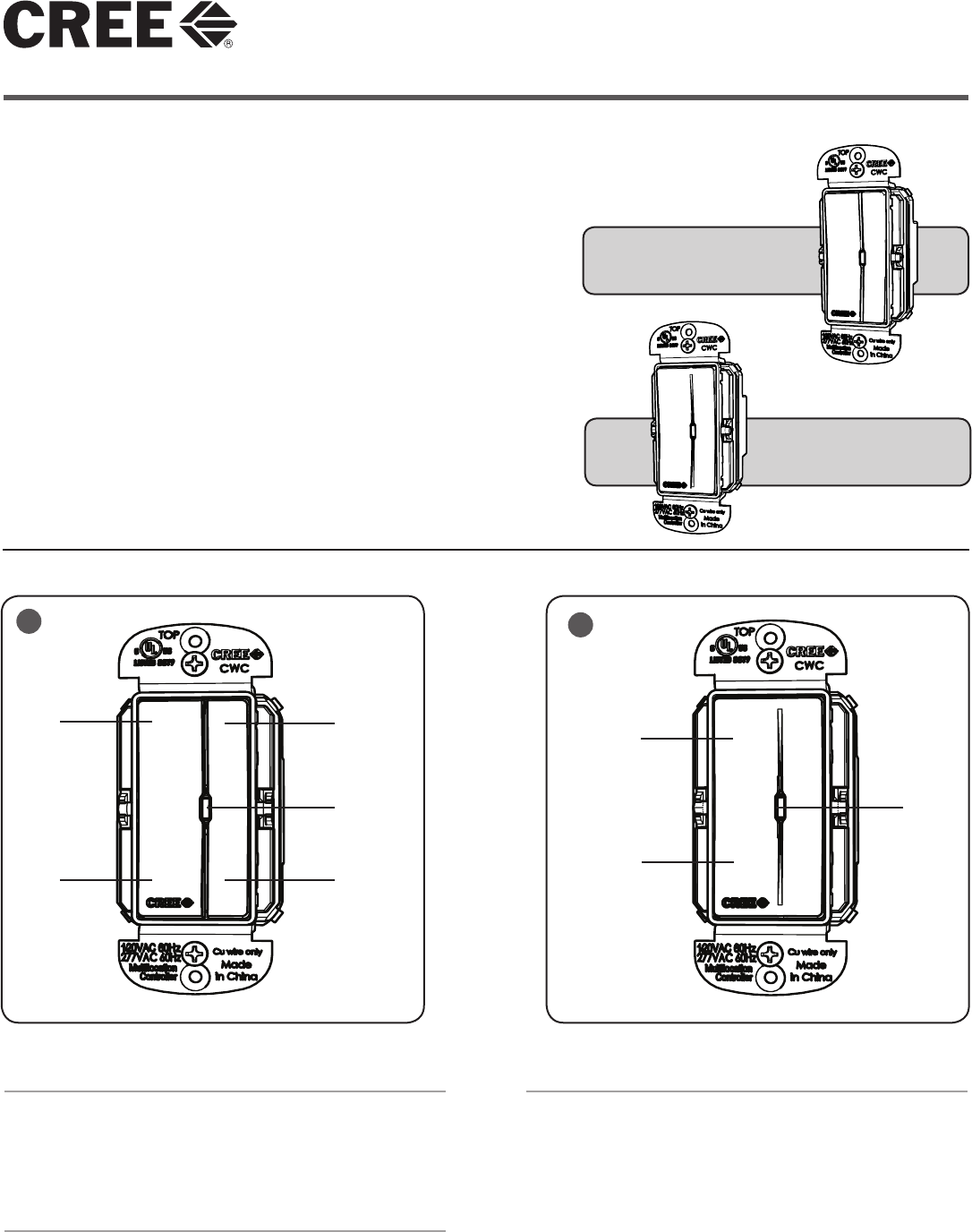

INSTALLATION INSTRUCTIONS

Cree Wireless Wall Controls With SmartCast™ Technology

Wireless Dimmer and Wireless Switch

Includes: CWD-CWC-XX and CWS-CWC-XX

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be

followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1. Before installing wall controls turn off the power at the circuit breaker.

2. These wall controls must be installed in accordance with the national and

local building codes and electrical wiring codes including wiring methods

and wiring connections. If you are not familiar with these codes and

requirements, consult a qualied electrician.

3. Indoor use only and suitable for damp locations.

4. Any changes or modications to these devices not explicitly approved by

manufacturer could void your authority to operate this equipment.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

• Voltage: 120-277V, 60Hz

• Depth in Wall: 1.5"

• For ease of installation, Cree recommends the use of a deep wall box.

UNIT DESCRIPTION

The Cree Wireless Wall Controls are used with other

SmartCast™ Technology enabled devices to provide wireless

control of LED luminaires. The Cree Wireless Wall Controls

provide on, off, and dimming control options.

LOAD TYPES

Cree Wall Controls support Cree SmartCast™ Technology

enabled devices only.

WALL CONTROLS FEATURES

• The Cree Wireless Dimmer supports on, off, and

dimming controls. See Figure 1.

• The Cree Wireless Switch supports on and off, controls.

See Figure 2.

Dimming

LED

Off

Dimming

Down

WIRELESS SWITCH

CWS-CWC

WIRELESS DIMMER

CWD-CWC

LED

Off

Summary of content (3 pages)

PAGE 1
Cree Wireless Wall Controls With SmartCast™ Technology Wireless Dimmer and Wireless Switch Includes: CWD-CWC-XX and CWS-CWC-XX INSTALLATION INSTRUCTIONS IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS 1. Before installing wall controls turn off the power at the circuit breaker. 2.
PAGE 2
Wall Control Troubleshooting 3 Issue Wall Control LED does not blink in a 2-blink sequence prior to OneButton™ Setup NEUT GND Wall Control will not join a network LINE SUPPLY LEADS Resolution Check wiring (LINE/NEUT/GND required) Reset Device and verify 2-blink sequence for the LED Check wiring (NEUT required) NOTE: LED may illuminate if NEUT not connected Reset Device and verify 2-blink sequence for the LED Replaced existing Wall Control and fixtures will not turn on Check Wiring (each fixture sh
PAGE 3
FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.
