Connecting Audio Control Module
The Sound Blaster ZxR comes with an external ACM that incorporates a 600 ohm headphone amplifier,
built-in microphone array and mic/headphone I/O connections and a volume control knob.

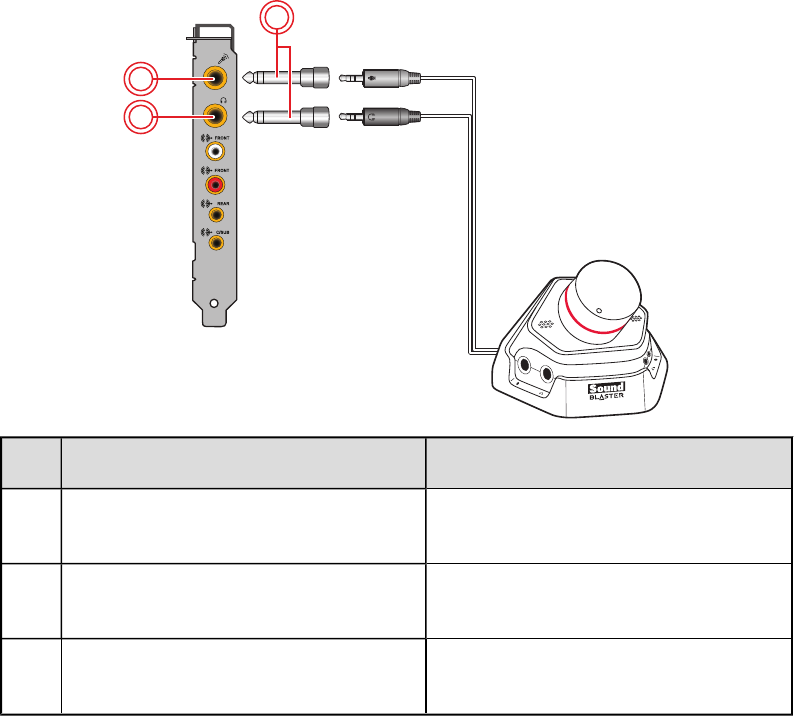

Connecting your ACM to the Sound Blaster ZxR
1
2
3
Jack, Connector or Cable Description
1. 6.3mm Microphone In jack Connects to the 3.5mm (1/8-inch)
microphone plug of your ACM.
2. 6.3mm Headphone jack Connects to your ACM with a 3.5mm
(1/8-inch) plug.
3. 6.3mm to 3.5mm Adapter Converts 6.3mm (1/4-inch) stereo
jack to 3.5mm (1/8-inch) stereo jack.
