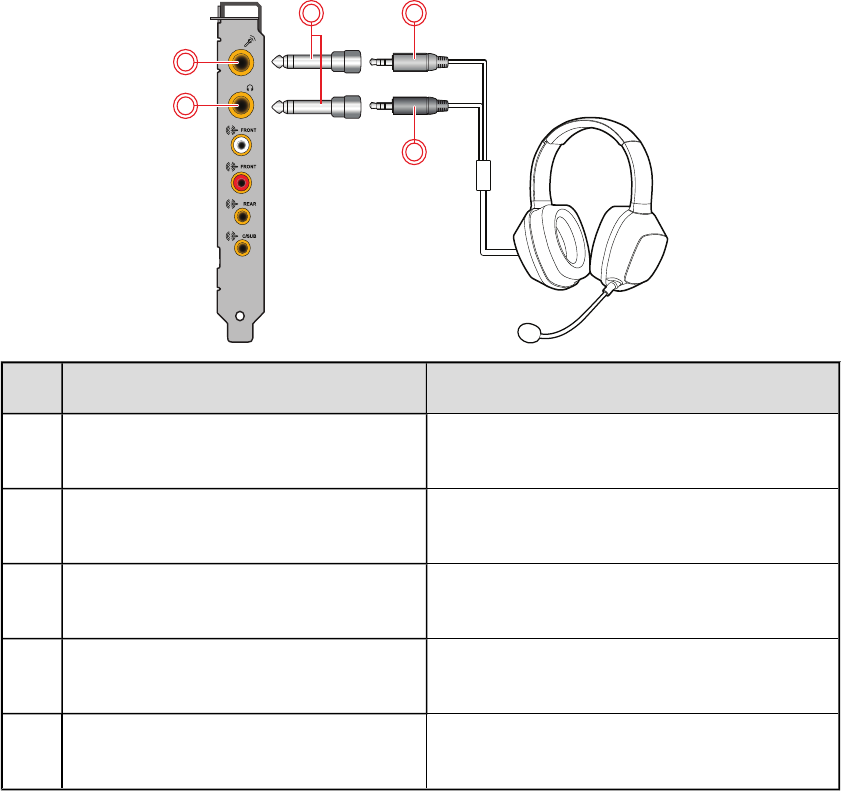

For headsets:
2
1
3 4
5
Jack, Connector or Cable Description
1. 6.3mm Microphone In jack Connects to the 3.5mm (1/8-inch) micro-
phone plug of your headset via an adapter.
2. 6.3mm Headphone jack Connects to stereo headphones with a
3.5mm (1/8-inch) plug via an adapter.
3. 6.3mm to 3.5mm Adapter Converts 6.3mm (1/4-inch) stereo jack to
3.5mm (1/8-inch) stereo jack.
4. 3.5mm Microphone In Plug Connects to the 6.3mm Microphone In jack
on your audio card via an adapter.
5. 3.5mm Headphone Plug Connects to the 6.3mm Headphone jack on
your audio card via an adapter.
Connecting Speakers and Headphones 17
