Connecting your A/V Receiver using Line Level inputs
If your A/V receiver supports multi-channel line-level inputs, you can connect them directly to your
audio cards' Line Out jacks instead of the Optical S/PDIF Out jack as shown below.

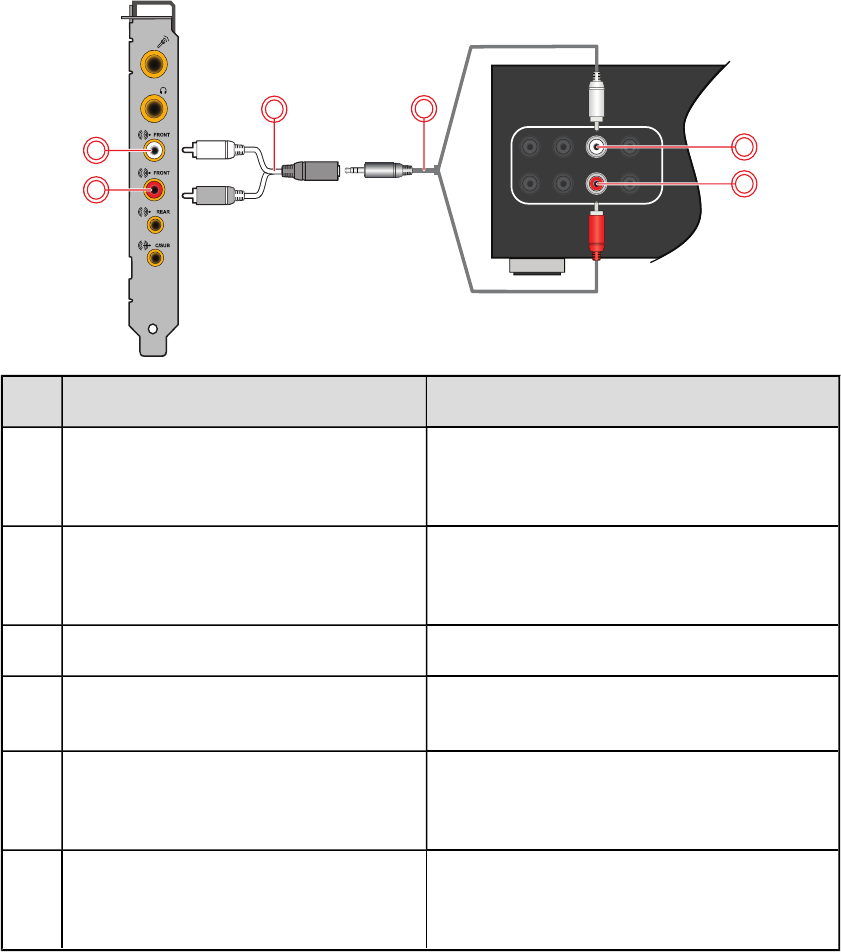

Connect to RCA Line Out 1 and Line Out 2 (Front L/R)
4
5
6
1
2
3
Jack, Connector or Cable Description
1. RCA Line Out 1 jack (Front L) Connects to the Front Left jack on your A/V
receiver, using a 3.5mm (1/8-inch) stereo-
to-RCA cable.
2. RCA Line Out 2 jack (Front R) Connects to the Front Right jack on your
A/V receiver, using a 3.5mm (1/8-inch)
stereo-to-RCA cable.
3. Y-Splitter cable (available separately) Converts the RCA cables to a stereo cable.
4. 3.5mm (1/8-inch) Stereo-to-RCA
cable (available separately)
Connects your audio card and A/V receiver.
5. Front Right jack Connects to the Line Out 1 jack on your
audio cards, using a 3.5mm (1/8-inch)
stereo-to-RCA cable.
6. Front Left jack Connects to the Line Out 1 jack on your
audio cards, using a 3.5mm (1/8-inch)
stereo-to-RCA cable.
