Technical Specifications

Last revised: 10/29/2015

Page 1 of 2

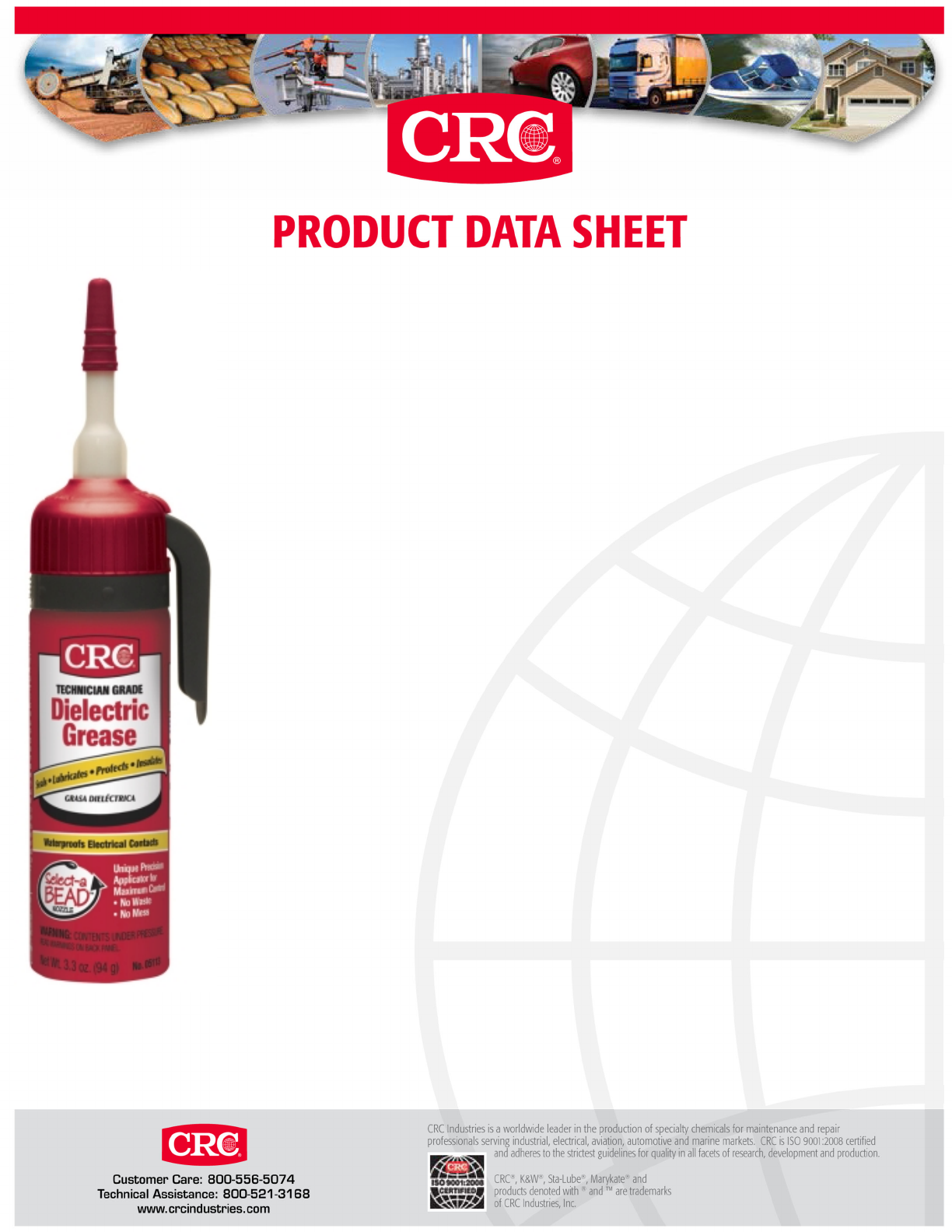

TechnicianGradeDielectricGrease,3.3WtOz

PartNumber:05113

ProductDescriptionBestNewPackagingintheperformancecategoryatthe

2015AAPEX/SEMAShow!Simplyturnthedialonthe

Select-A-Bead™actuatortoselectthebestbeadwidthfor

yourproject.Aunique,non-curingcompoundusedfor

sealing,protecting&electricalinsulating.Improves

electricalperformancebyreducingarcing&voltagedrop.

Alsoidealforlubricatingplastic&rubber.Improves

electricalperformanceinadverseweatherconditions.

Patentedfinger-actuateddeliverysystemforsmooth,

continuouscoverage.

ApplicationsElectricalconnections,circuitbreakers,contacts,spark

plugboots,trailerconnectors,HEIdistributor,battery

terminals,contacts,lubricationofplastic,rubberparts&

o-rings

UnitPackageDescription6OuncePressurizedCan

BrandCRC

GenericDescription1DielectricGrease

NetFill3.3WtOz

UPCCode078254051130

UnitDimensions8.75Hx2Wx2Din

UnitsPerCase12

CaseDimensions9.4Hx8Wx7.9Din

CasesPerPallet120

CaseWeight6lbs

I2of5Code30078254051131

AppearanceOpaqueWhiteGel

BaseTypeSilicone

Flashpoint>572°F

CPSCFlammabilityClassNone

SpecificGravity0.97

NLGIGrade2

TimkenOKLoad[Lbs.]NotDetermined

PAGE 1
Technician Grade Dielectric Grease, 3.3 Wt Oz Part Number: 05113 Product Description Best New Packaging in the performance category at the 2015 AAPEX/SEMA Show! Simply turn the dial on the Select-A-Bead™ actuator to select the best bead width for your project. A unique, non-curing compound used for sealing, protecting & electrical insulating. Improves electrical performance by reducing arcing & voltage drop. Also ideal for lubricating plastic & rubber.
PAGE 2
Plastic Safe Safe on Most Plastics Dielectric Strength >450 Volts/Mil Working Temp -70 to 400°F Drop Point None Leakage Not Determined Low Temp Torque Not Determined Oil Separation <1% Oxidation Stability Not Determined Water Washout Not Determined Worked Penetration Varies with grade Propellant Nitrogen Aerosol Flammability Level I DOT Proper Shipping Name Aerosols, Non-Flammable, Limited Quantity VOC % (Federal) <1 VOC g/L (Federal) <0.01 VOC Lbs./Gal. (Federal) <0.
