Assembly Instruction

HARDWARE

TOOLS REQUIRED

COMPONENTS

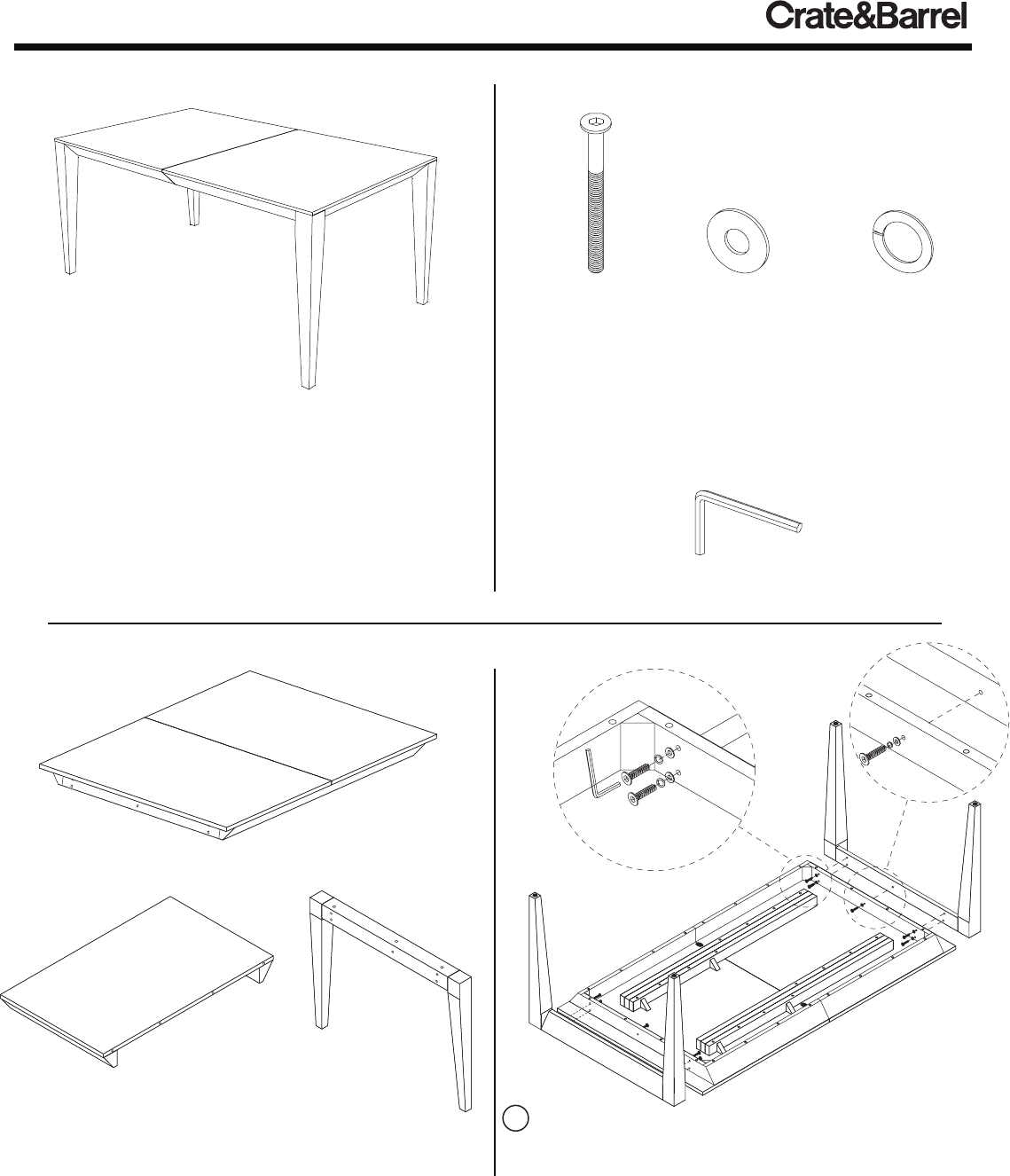

1 With the assistance of another adult, carefully place tabletop

face down on a clean, padded surface. Attach each leg frame

with 5 bolts, 5 spring washers, and 5 flat washers as shown.

Secure bolts with an allen wrench. Carefully position unit upright.

Assembly is now complete.

ASSEMBLY

Made in China - r02 Page 1 of 2

Thank you for purchasing the Triad Extension Dining

Table. This page lists all the contents included in the

box. Please take time to identify the hardware as well

as the individual components of this product. As you

unpack and prepare for assembly, place the contents

on a carpeted or padded area to protect them from

damage.

Note: 2 people are required to safely assemble this product.

TRIAD EXTENSION DINING TABLE

Missing hardware?

Please call 800.606.6387 for replacements.

1 - leaf

1 - tabletop

2 - leg frames

10 - flat

washers

allen wrench (included)

10 - bolts

leg

frame

tabletop

10 - spring

washers

Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

PAGE 1
TRIAD EXTENSION DINING TABLE HARDWARE 10 - bolts 10 - spring washers 10 - flat washers Missing hardware? Please call 800.606.6387 for replacements. Thank you for purchasing the Triad Extension Dining Table. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
PAGE 2
TRIAD EXTENSION DINING TABLE EXTENSION LEAF INSTALLATION NOTE: Make sure pins in the tabletop align with the locator holes in the leaf. leaf Turn mechanism counterclockwise to unlock 2 Release tabletop sections by unlocking 2 mechanisms on underside of tabletop. With the assistance of another adult, pull apart tabletop evenly on each side and position leaf as shown. Make sure pins in the tabletop align with the locator holes in the leaf.
