PASSAGES BOOKCASE

Made in China - r06 Page 1 of 4

Thank you for purchasing the Passages Bookcase.

This page

lists all the contents included in the box.

Please take the time

to identify the hardware as well as

the individual components

to this product. As you

unpack and prepare for assembly, place the contents

on a carpeted or padded area to protect them from

damage.

Note: 2 people are required to safely assemble this product.

TOOLS REQUIRED

Missing hardware? Please call 800.606.6387 for replacements.

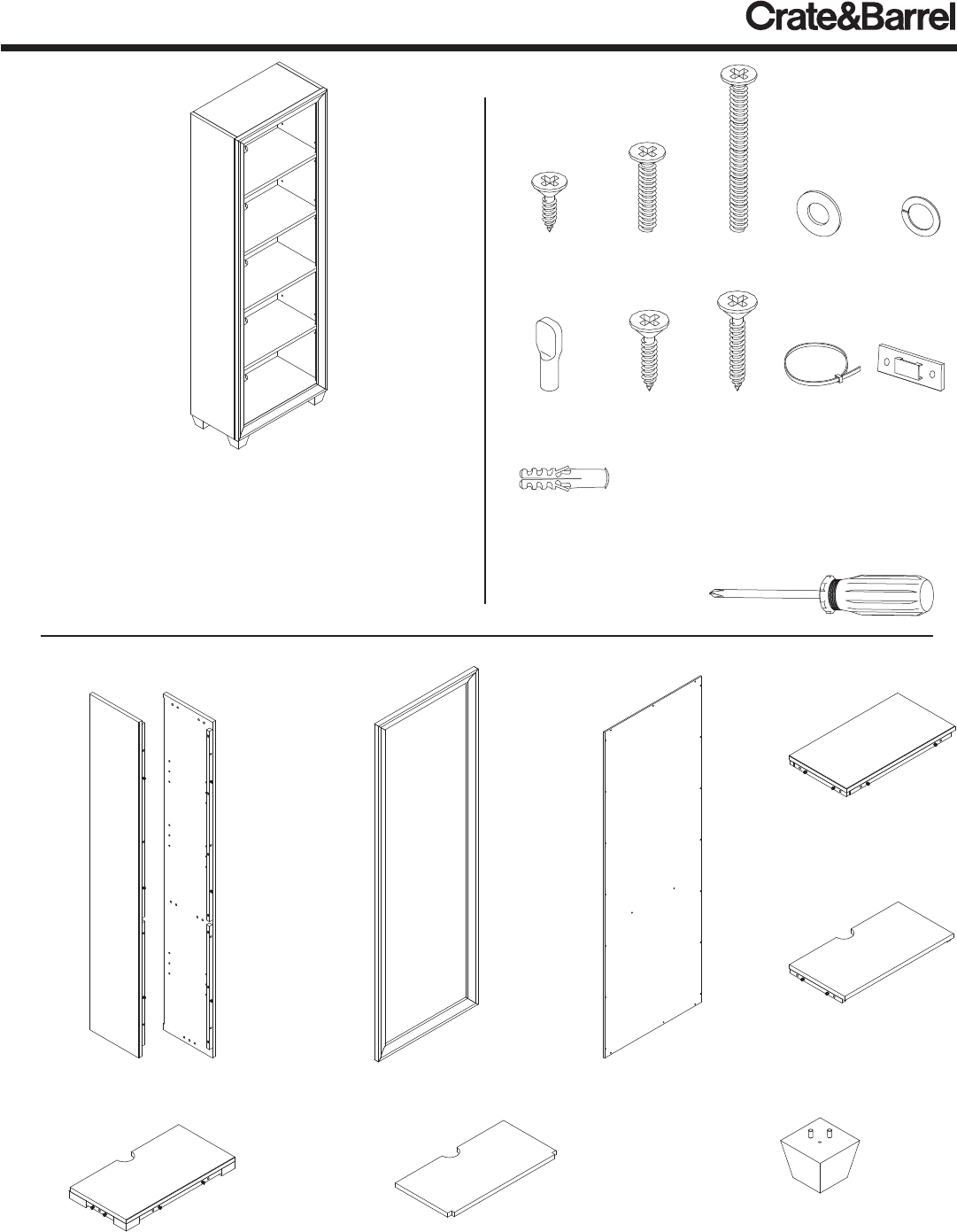

HARDWARE

COMPONENTS

4 - large

bolts

2 - side panels

(1 left, 1 right)

1 - front frame 1 - back panel

1 - top panel

1 - -fixed shelf

1 - bottom

panel

3 - adjustable

shelves

4 - feet

22 - small

screws

22 - small

bolts

26 - flat

washers

26 - spring

washers

12 - shelf

pins

phillips head screwdriver

4 - medium

screws

4 - large

screws

2 - wall

straps

4 - wall

brackets

4 - plastic anchors

Summary of content (4 pages)

PAGE 1
PASSAGES BOOKCASE HARDWARE Thank you for purchasing the Passages Bookcase. This page lists all the contents included in the box. Please take the time to identify the hardware as well as the individual components to this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage. Note: 2 people are required to safely assemble this product.
PAGE 2
PASSAGES BOOKCASE right side panel top panel left side panel fixed shelf bottom panel flat washer spring washer small bolt 1 Fit dowels of top panel, fixed shelf, and bottom panel into corresponding holes of right side panel as shown. Secure with 5 small bolts, 5 spring washers, and 5 flat washers. Fasten bolts with a phillips head screwdriver. 2 Fit dowels of assembled unit into corresponding holes of left side panel as shown. Secure with 5 small bolts, 5 spring washers, and 5 flat washers.
PAGE 3
PASSAGES BOOKCASE A A B adjustable shelves back panel 5 Attach back panel to assembled unit as shown with 22 small screws. Secure screws with a screwdriver. 6 A) Insert 12 shelf pins at desired shelf heights as shown. B) Place 3 adjustable shelves into assembled unit as shown. Make sure each shelf is securely supported by shelf pins. Assembly is now complete. CLEANING AND CARE Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.
PAGE 4
PASSAGES BOOKCASE C plastic anchor F wall strap wall bracket wall bracket large D screw A 7 medium screw Safety Mounting Instructions For added safety and stability, it is recommended that the wall mounting hardware be installed. For safe mounting, it is essential to use wall anchors appropriate to your wall type (i.e. plaster, drywall, concrete, etc.). Mount to wood studs whenever possible. A) Attach wall bracket to top of bookcase using 2 medium screws as shown.
