Assembly Instruction

Made in China - r06 Page 2 of 2
KINGSTON TWO-DRAWER COFFEE TABLE

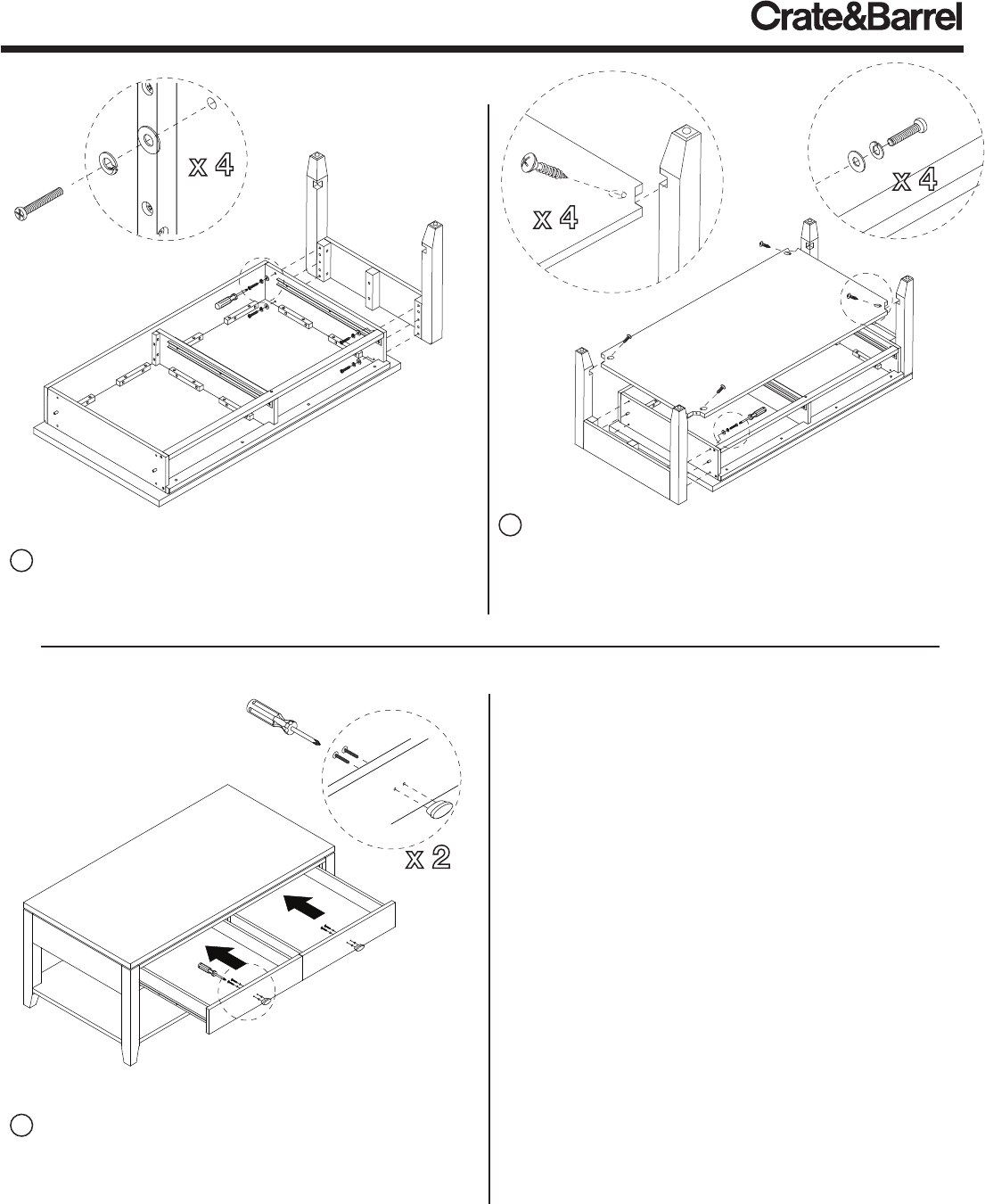

2 With the assistance of another adult, carefully place
tabletop upside down onto a clean, padded surface.
Loosely attach left side frame into table top with 4 bolts,
4 spring washers and 4 flat washers as shown.
3 A. Loosely attach right side frame into assembled unit
with 4 bolts, 4 spring washers and 4 flat washers as
shown.
B. Carefully fit notches of shelf into corresponding notches
in the legs. Secure shelf with 4 screws as shown. Tighten
left and right side frame bolts securely with a screwdriver.
4 Position unit upright as shown. Attach 1 pull per
drawer with 2 pull screws as shown. Secure screws with
a screwdriver. Fit drawer into tabletop of assembled unit
as shown.
Assembly is now complete.
2 A. Insert 2 cam screws into left and right side as shown.
Secure, but do not overtighten with a phillips head
screwdriver.
B. Insert 4 cams into shelf as shown. Make sure arrows on
each cam points towards nearest edge with holes.
A
B
CLEANING AND CARE
Clean surfaces with a dry or damp soft cloth. Do not use
abrasive cleaners. Do not use furniture wax or polish as the
wood is finished with a protective clear lacquer.
B
B
A
A
Make sure arrows on
each cam points towards
nearest edge with holes.
Customer Service 800.967.6696 | www.crateandbarrel.com
B
