DELANO SIDEBOARD

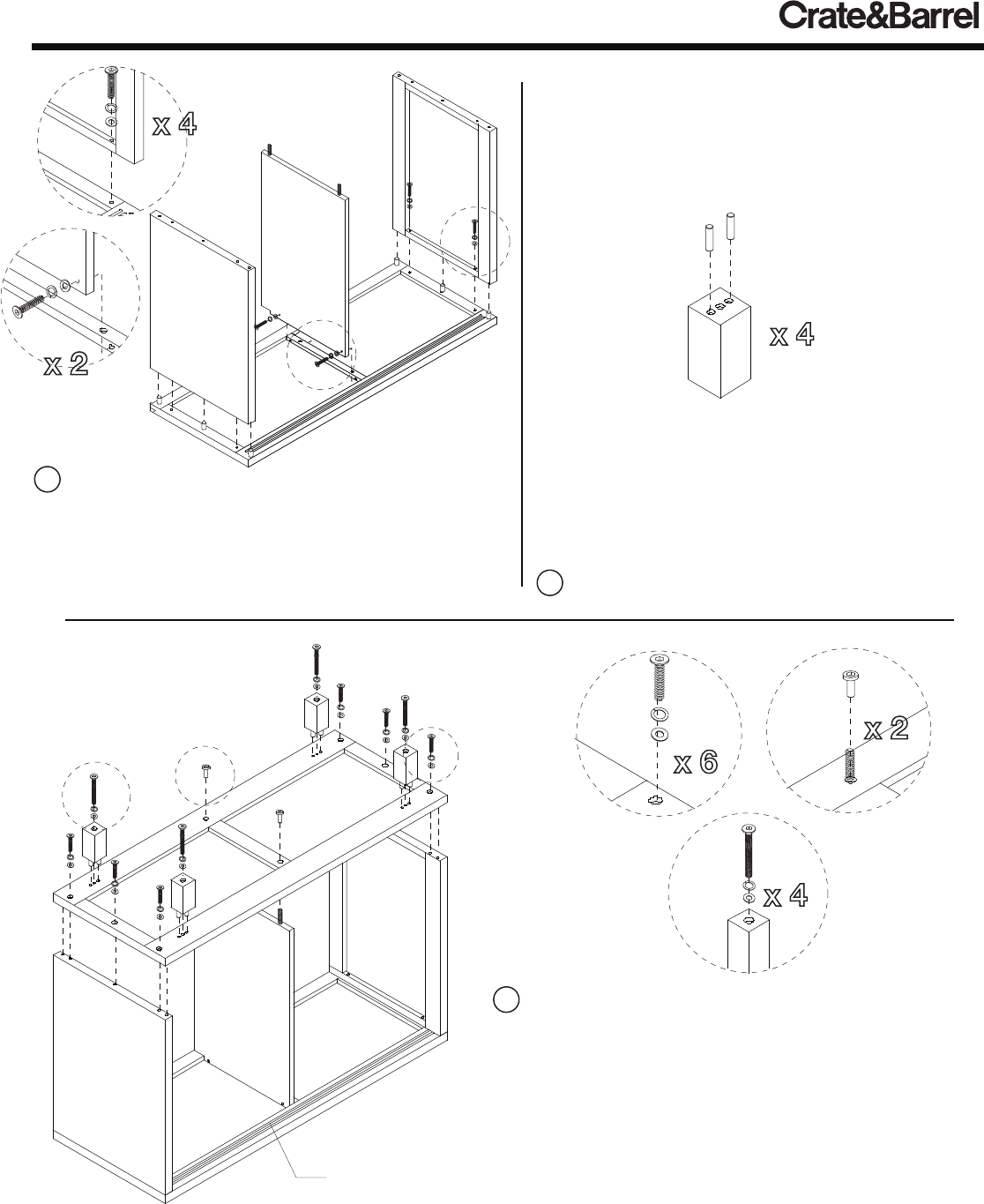

2 A) Fit dowels of top panel into corresponding holes of

left and right side panels as shown. Secure each side

panel with 2 medium bolts, 2 spring washers and 2 flat

washers, using an allen wrench. Do not over tighten the

bolts.

B) Attach partition to top panel with 2 small bolts, 2

spring washers and 2 flat washers as shown.

4 A) With assistance of another adult, fit dowels of bottom

panel into corresponding holes of assembly shown, and

secure with 6 medium bolts, 6 spring washers and 6 flat

washers.

B) Fit threaded studs of partiton into corresponding holes of

bottom panel and secure with 2 bolt caps, using an allen

wrench.

C) Fit dowels of each leg into bottom panel and secure with

1 large bolt, 1 spring washer and 1 flat washer, using an

allen wrench.

3 Insert 2 wood dowels into each leg as shown.

NOTE: Make sure side

panels and partition are

oriented as shown

during assembly

partition

NOTE: Make sure

sliding door grooves

are assembled in

front as shown

top panel

bottom

panel
