Assembly Instruction

Made in China - r10 Page 4 of 4
BUNGALOW LOW BOOKCASE
Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com
A
wall bracket &
small screw
C
F
wall strap
metal
anchor
D
large screw
WALL MOUNTING INSTRUCTIONS
For added safety and stability, it is recommended that the
wall mounting hardware be installed. For safe mounting, it
is essential to use wall anchors appropriate to your wall
type (i.e. plaster, drywall, concrete, etc.). Mount to wood
studs whenever possible.

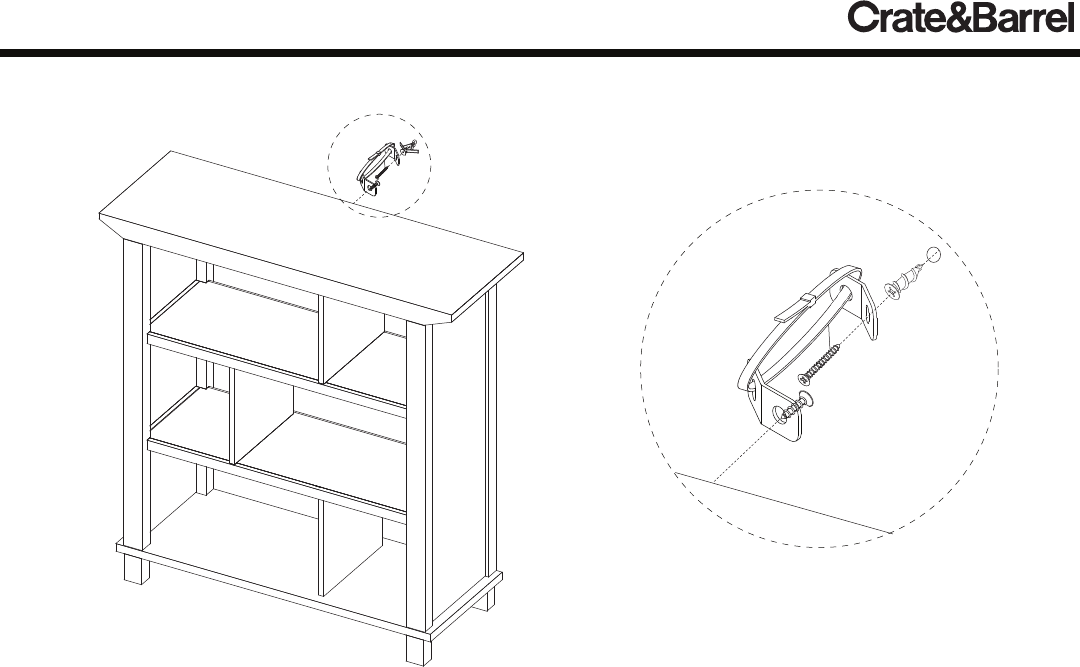

A) Attach 1 wall bracket to assembled unit as shown,
using 1 small screw.
B) Determine the final location of dresser unit. Mark
position on the wall, approximately 2" below the bracket
mounted to the back of the unit.
C) Drill a pilot hole in the wall stud. If the wall stud is not
available, drill a hole in the wall that is slightly smaller in
diameter than the anchor. Insert metal anchor into hole
and secure using a phillips screwdriver.
D) Attach the wall bracket to the wall by inserting 1 large
screw through the wall bracket and into the metal anchor
in the wall.
E) Place the unit so the wall bracket on the back edge is
aligned with the wall bracket on wall.
F) Lace one end of the wall strap through both brackets,
and into the other end of the strap.
G) Pull the strap tightly until secure.
Wall mounting assembly is now complete.
NOTE: If you are unsure about your
wall type or what mounting method
you should use, consult a qualified
professional or your local hardware
store.
