ASSEMBLY HARDWARE

TOOLS REQUIRED

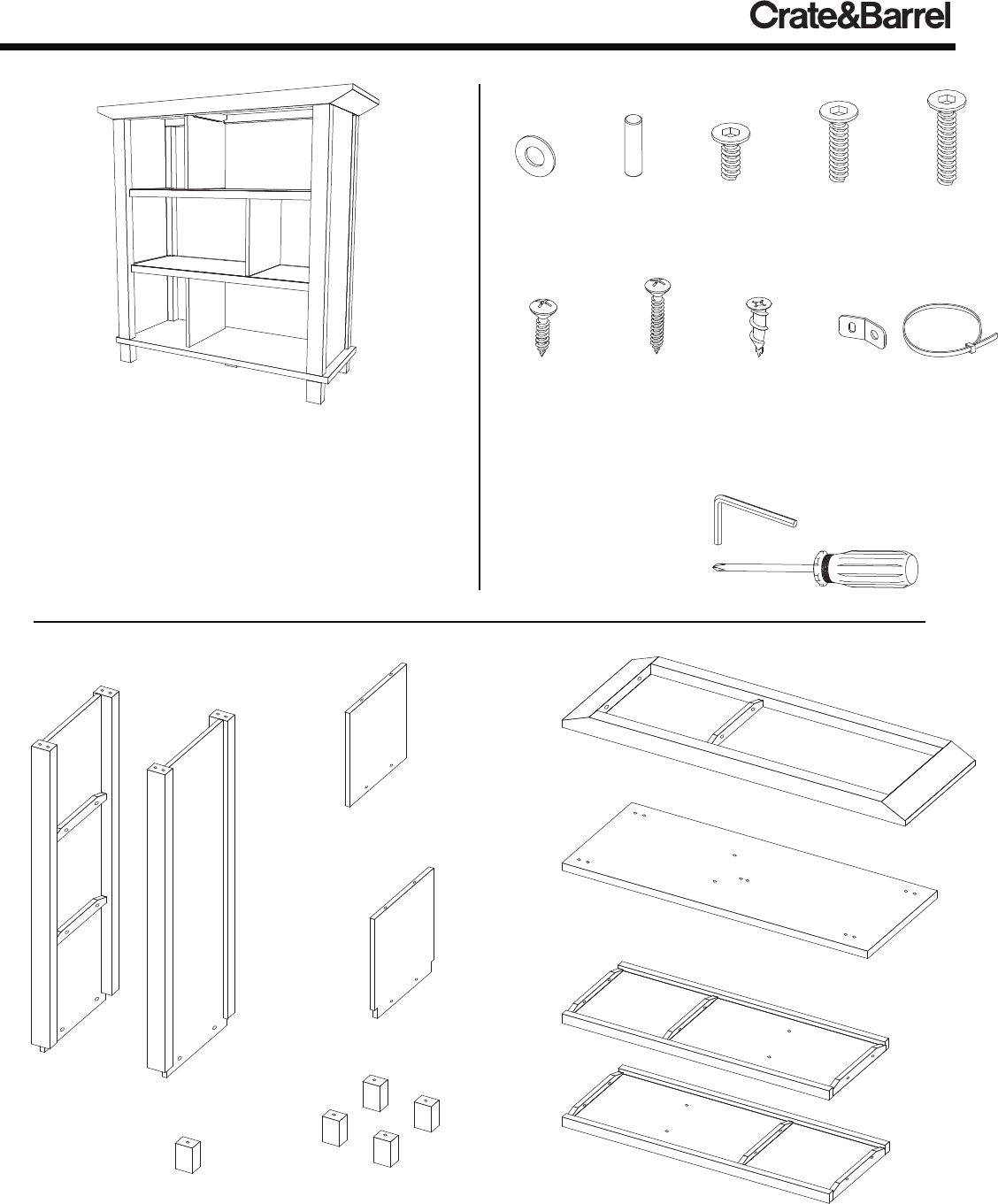

COMPONENTS

Made in China - r10 Page 1 of 4

Thank you for purchasing the Bungalow Low

Bookcase. This page lists all the contents included in

the box. Please take time to identify the hardware as

well as the individual components of this product. As

you unpack and prepare for assembly, place the

contents on a carpeted or padded area to protect them

from damage.

Note: 2 people are required to safely assemble this product.

BUNGALOW LOW BOOKCASE

Missing hardware? Please call 800.606.6387 for replacements.

9 - wood

dowels

14 - medium

bolts

29 - flat

washers

5 - long

bolts

10 - short

bolts

allen wrench (included)

1 - top panel

1 - bottom panel

2 - side panels

(1 left, 1 right)

2 - fixed shelves

1 - partition

2 - notched partitions

1 - center

support

4 - feet

WALL MOUNTING HARDWARE

1 - large

screw

1 - small

screw

2 - wall

brackets

1 - wall

strap

1 - metal

anchor

phillips head screwdriver

Customer Service 800.967.6696 | Latest instructions available at www.crateandbarrel.com

(We recommend the use of hand tools instead of power tools)

Summary of content (4 pages)

PAGE 1
BUNGALOW LOW BOOKCASE ASSEMBLY HARDWARE 29 - flat washers 9 - wood dowels 10 - short bolts 14 - medium bolts 5 - long bolts WALL MOUNTING HARDWARE 1 - small screw Thank you for purchasing the Bungalow Low Bookcase. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
PAGE 2
BUNGALOW LOW BOOKCASE left and right side panels 1 A) Insert 2 wood dowels into left and right side panels as shown. B) Insert 5 wood dowels into bottom panel as shown. bottom panel 2 A) Fit dowels of left and right side panels into corresponding holes of bottom panel as shown. At this point, fit dowels of bottom panel into corresponding holes of 4 feet. Secure each foot with 1 long bolts and 1 flat washers, using an allen wrench. Do not fully tighten the bolts.
PAGE 3
BUNGALOW LOW BOOKCASE 3 A) Attach 1 notched partition to bottom panel of assembled unit with 2 short bolts and 2 flat washers as shown. Secure, but do not fully tighten, bolts with an allen wrench. B) Attach 1 fixed shelf to assembled unit with 6 medium bolts and 6 flat washers as shown. Repeat steps A and B for remaining notched partition and fixed shelf.
PAGE 4
BUNGALOW LOW BOOKCASE F wall strap C metal anchor D large screw A wall bracket & small screw WALL MOUNTING INSTRUCTIONS NOTE: If you are unsure about your wall type or what mounting method you should use, consult a qualified professional or your local hardware store. For added safety and stability, it is recommended that the wall mounting hardware be installed. For safe mounting, it is essential to use wall anchors appropriate to your wall type (i.e. plaster, drywall, concrete, etc.).
