Assembly Instruction

Customer Service 800-967-6696 | http://www.crateandbarrel.com
BALCONY WARDROBE BASE and TOP
Made in Vietnam - r04
Page 2 of 4

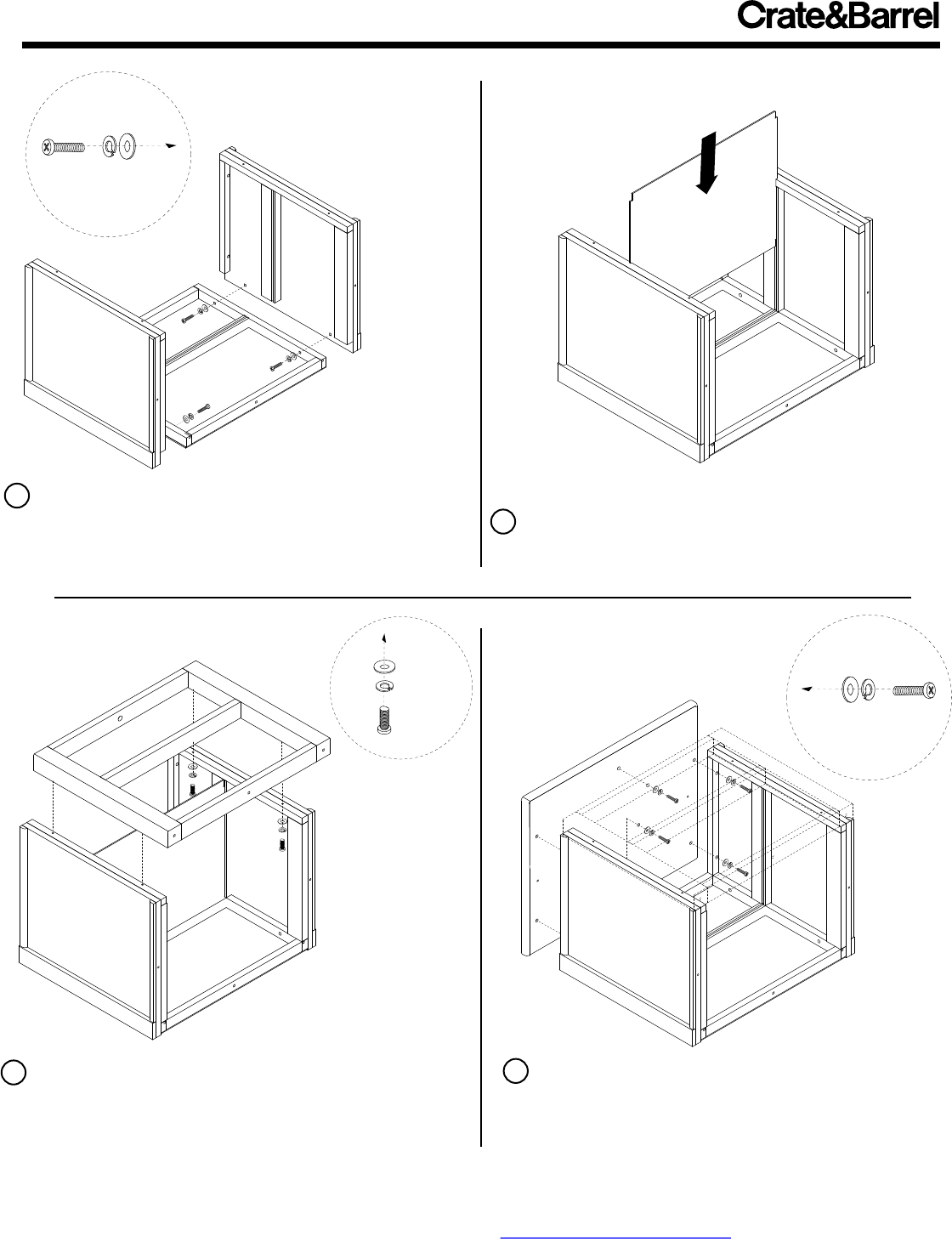

1 Place back frame on padded surface as shown. Fit
right and left side panels into position and attach with 2
short screws, 2 split washers and 2 washers per panel.
Secure all screws with the phillips head screwdriver but
do not over tighten.
2 Slide shelf into slot on the side panels and back frame.
3 Fit front frame onto assembly. Secure from inside with 4
short screws, 4 split washers and 4 washers as shown.
4 Fit top panel into position and and attach with 6 short
screws, 6 split washers and 6 washers. Fully tighten each
screw with the screwdriver.
x 4
NOTE:
Do not over tighten
the screws.
x 6
x 4
