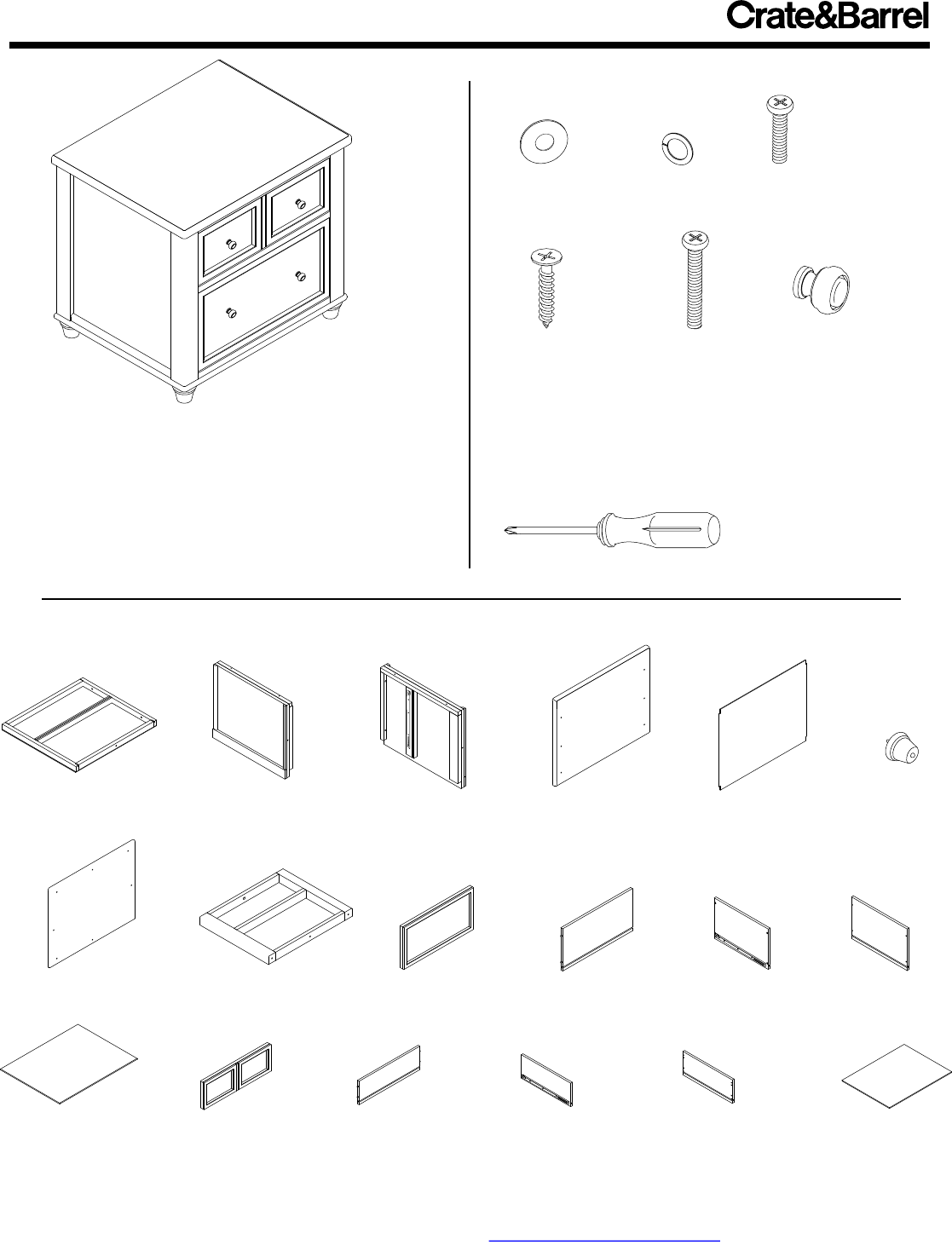

BALCONY WARDROBE BASE and TOP

COMPONENTS

Made in Vietnam - r04

Page 1 of 8

Thank you for purchasing the Balcony Wardrobe. This

page lists all the contents included in the box. Please

take time to identify the hardware as well as the

individual components of this product. As you unpack

and prepare for assembly, place the contents on a

carpeted or padded area to protect them from damage.

Note: 2 people are required to safely assemble this

product.

1 - back frame

1 - left

side panel

HARDWARE

TOOLS REQUIRED

Phillips head screwdriver (included)

22 - washers

Missing hardware? Please call 800.606.6387 for

replacements.

18 - split

washers

4 -long

screws

4 - drawer

pulls

20 - wood

screws

18 - short

screws

1 - right

side panel

1 - top

panel

1 - shelf 4 - legs

1 - front frame

1 - bottom panel

1 - large

drawer front

1 - large

drawer back

1 - small

drawer bottom

1 - large

drawer bottom

1 - small

drawer front

1 - large left

drawer side

1 - large right

drawer side

1 - small

drawer back

1 - small left

drawer side

1 - small right

drawer side

Summary of content (7 pages)

PAGE 1
BALCONY WARDROBE BASE and TOP HARDWARE 22 - washers 18 - split washers 20 - wood screws Thank you for purchasing the Balcony Wardrobe. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage. Note: 2 people are required to safely assemble this product.
PAGE 2
BALCONY WARDROBE BASE and TOP NOTE: Do not over tighten the screws. x4 1 Place back frame on padded surface as shown. Fit right and left side panels into position and attach with 2 short screws, 2 split washers and 2 washers per panel. Secure all screws with the phillips head screwdriver but do not over tighten. 2 Slide shelf into slot on the side panels and back frame. x4 x6 3 Fit front frame onto assembly. Secure from inside with 4 short screws, 4 split washers and 4 washers as shown.
PAGE 3
BALCONY WARDROBE BASE and TOP x4 6 Attach 4 legs to underside of bottom panel by inserting into the threaded holes as shown. Turn each leg clockwise until secure. 5 Fit bottom panel onto assembly as shown. Secure from below with 4 short screws, 4 split washers and 4 washers and fully tighten with the screwdriver. A Make sure wheels on drawer sides are at the back C Make sure wheels on drawer sides are at the back B D 7 A.
PAGE 4
BALCONY WARDROBE BASE and TOP CLEANING AND CARE Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners. Do not use furniture wax or polish as the wood is finished with a protective clear lacquer. 9 Insert drawers into case assembly, fitting glides on drawer sides into corresponding glides on the case interior. Assembly is now complete. Made in Vietnam - r04 Page 4 of 4 Customer Service 800-967-6696 | http://www.crateandbarrel.
PAGE 5
BALCONY WARDROBE BASE and TOP HARDWARE 33 - washers 2 -long screws Thank you for purchasing the Balcony Wardrobe Top. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage. Note: 2 people are required to safely assemble this product.
PAGE 6
BALCONY WARDROBE BASE and TOP Make sure the arrow label is at the front of the top panel NOTE: Do not over tighten the screws. A x9 x8 B 1 Place back frame on padded surface as shown. Fit right and left side panels into position and attach with 4 short screws, 4 split washers and 4 washers per panel. Secure all screws with the phillips head screwdriver but do not over tighten. x8 2 A.
PAGE 7
BALCONY WARDROBE BASE and TOP WARDROBE ASSEMBLY x8 A x2 B 5 A. Insert 8 shelf pins at desired shelf height. Angle 2 adjustable shelves into position and place on pins. B. Attach 1 pull to each door with 1 long screw and 1 washer per pull. Assembly is now complete. 6 With the assistance of another adult, place Wardrobe Top onto assembled Wardrobe Base. Align back edges as shown and attach 2 mending plates with 4 wood screws per plate.
