BALCONY 5 DRAWER CHEST
Made in Vietnam - r05
Page 2 of 4

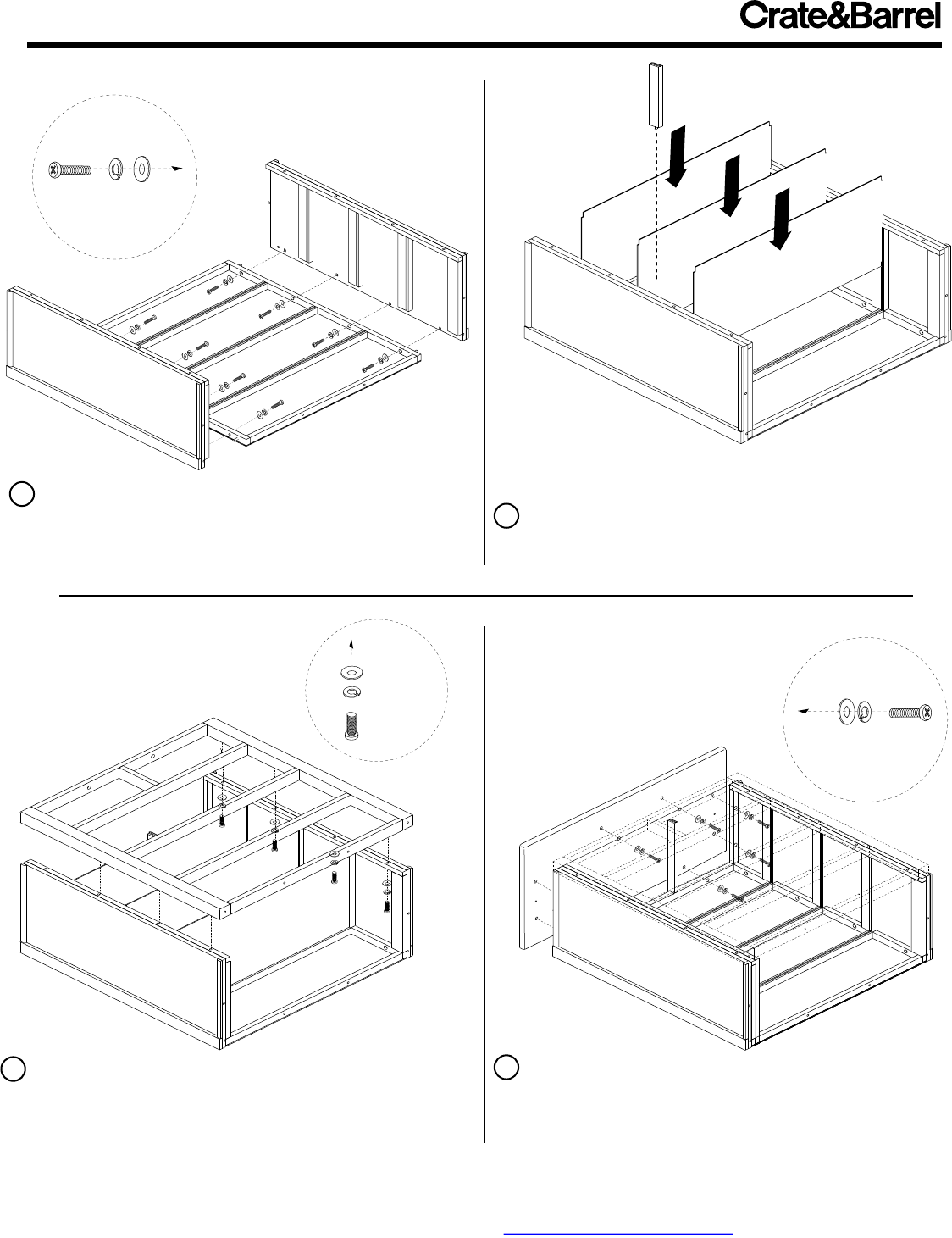

1 Place back frame on padded surface as shown. Fit
right and left side panels into position and attach with 4
short screws, 4 split washers and 4 washers per panel.
Secure all screws with the phillips head screwdriver but
do not over tighten.
2 A. Slide 3 shelves into slots on the side panels and back
frame.
B. Fit dowel of drawer divider into corresponding hole in
back panel.
3 Fit front frame onto assembly. Secure from inside with 8
short screws, 8 split washers and 8 washers as shown.
Fully tighten each screw with the screwdriver.
4 A. Fit top panel into position and and attach with 8 short
screws, 8 split washers and 8 washers. Fully tighten each
screw with the screwdriver.
x 8
NOTE:
Do not over tighten
the screws.
x 8
x 8
B
A
