Assembly Instruction

ManualsBrandsCrate & Barrel ManualsStorage FurnitureCrate & Barrel Balcony Five-Drawer Chest

Customer Service 800-967-6696 | http://www.crateandbarrel.com

BALCONY 5 DRAWER CHEST

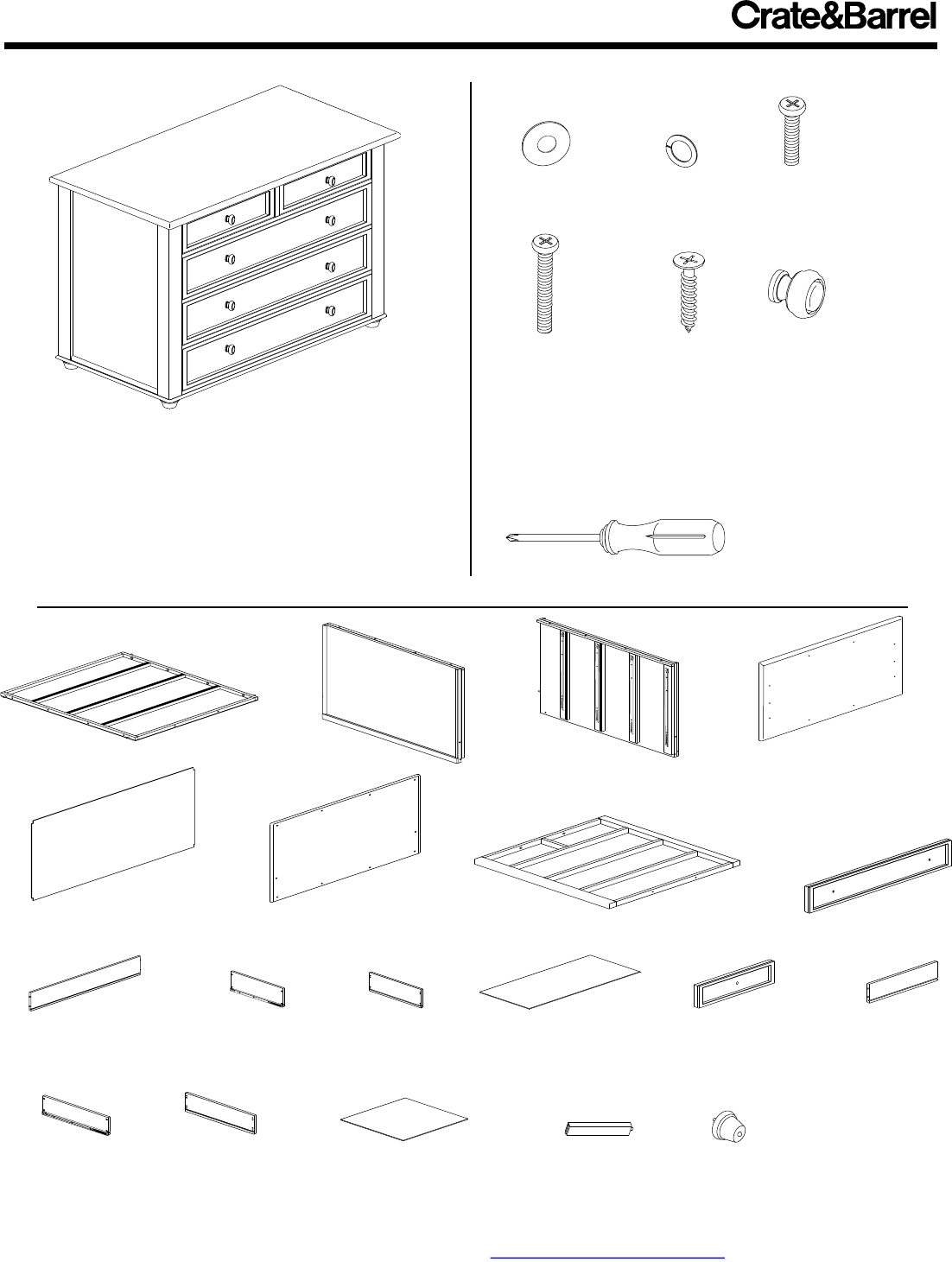

COMPONENTS

Made in Vietnam - r05

Page 1 of 4

Thank you for purchasing the Balcony Dresser. This

page lists all the contents included in the box. Please

take time to identify the hardware as well as the

individual components of this product. As you unpack

and prepare for assembly, place the contents on a

carpeted or padded area to protect them from damage.

Note: 2 people are required to safely assemble this

product.

1 - back frame

1 - left side panel

HARDWARE

TOOLS REQUIRED

Phillips head screwdriver (included)

38 - washers

Missing hardware? Please call 800.606.6387 for

replacements.

30 - split

washers

8 -long

screw

8 - drawer

pull

40 - wood

screws

30 - short

screws

1 - right side panel

1 - top panel

1 - bottom panel3 - shelves

1 - front frame 3 - large drawer fronts

3 - large

drawer bottoms

2 - small

drawer fronts

2 - small

drawer backs

3 - large

drawer backs

2 - small left

drawer sides

2 - small right

drawer sides

2 - small

drawer bottoms

1 - drawer

divider

3 - large left

drawer sides

3 - large right

drawer sides

4 - legs

Summary of content (4 pages)

PAGE 1
BALCONY 5 DRAWER CHEST HARDWARE 38 - washers 8 -long screw Thank you for purchasing the Balcony Dresser. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage. Note: 2 people are required to safely assemble this product.
PAGE 2
BALCONY 5 DRAWER CHEST NOTE: Do not over tighten the screws. x8 B A 1 Place back frame on padded surface as shown. Fit right and left side panels into position and attach with 4 short screws, 4 split washers and 4 washers per panel. Secure all screws with the phillips head screwdriver but do not over tighten. 2 A. Slide 3 shelves into slots on the side panels and back frame. B. Fit dowel of drawer divider into corresponding hole in back panel. x8 x8 3 Fit front frame onto assembly.
PAGE 3
BALCONY 5 DRAWER CHEST x6 6 Attach 4 legs to underside of bottom panel by inserting into the threaded holes as shown. Turn each leg clockwise until secure. 5 Fit bottom panel onto assembly as shown. Secure from below with 6 short screws, 6 split washers and 6 washers. Fully tighten with the screwdriver. A Make sure wheels on drawer sides are at the back C Make sure wheels on drawer sides are at the back x2 B D x3 7 A.
PAGE 4
BALCONY 5 DRAWER CHEST CLEANING AND CARE Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners. Do not use furniture wax or polish as the wood is finished with a protective clear lacquer. 9 Insert small and large drawers into case assembly, fitting glides on drawer sides into glides on case interior. Assembly is now complete. Made in Vietnam - r05 Page 4 of 4 Customer Service 800-967-6696 | http://www.crateandbarrel.
