After the rst successful Export, an “Import” button becomes available in the “DSG1 Perma-
nent local settings”. The Import function applies the DSG1’s editable default settings (startup
frequency, mode and level for each band, transmission activation and startup PRN). These
settings are effective immediately, and they become the new default settings for the next
startup.
NOTE
The DSG1 will always try to connect to the CPAT FTP server. If it succeeds, the
DSG1 will download the active parameters le and overwrite the current one.
To avoid this, do not connect the DSG1 to the Internet until the parameters
have also been set on the CPAT database and stored on the FTP server.

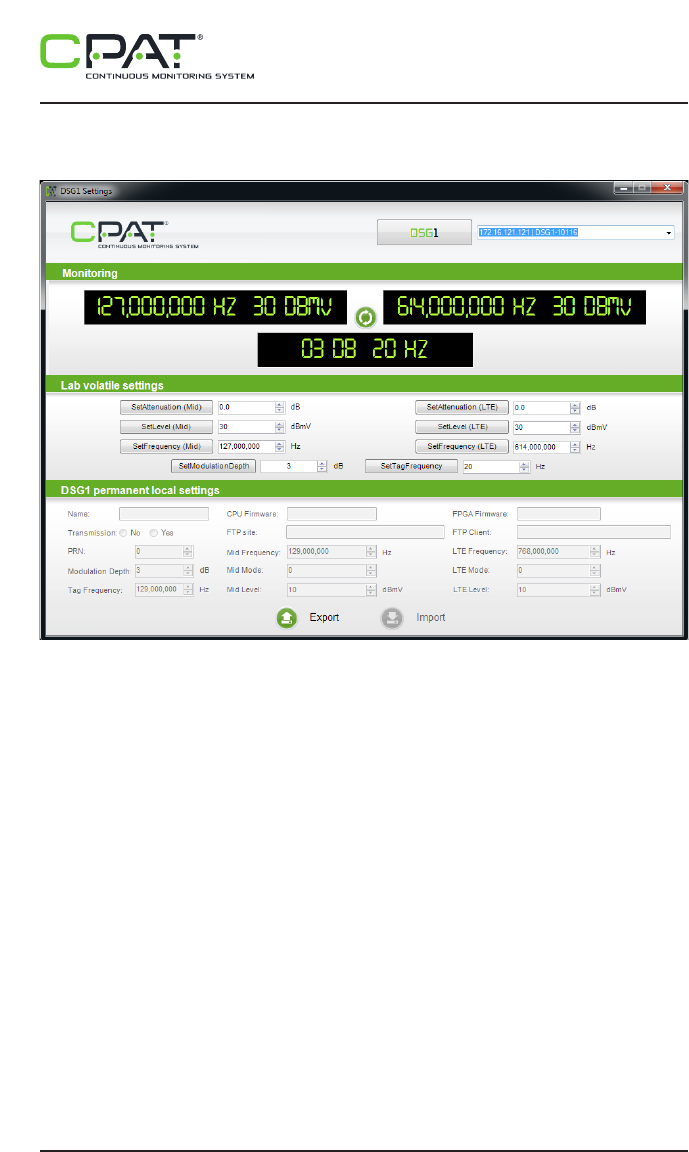

When a DSG1 is selected, the currently applied settings are summarized in the “Monitoring”
panel. All “Lab volatile settings” functions become available for modication, if necessary.
You can edit the attenuation, frequency and level of both bands within the allowed limits.
However, since these settings are volatile, any changes will be lost after a reboot of the
DSG1, and the default settings will be applied until you edit them again.
A “Refresh” button is available between the two outputs in the “Monitoring” panel to perform
a new current settings query.
An “Export” button is available in the “DSG1 Permanent local settings”: when pressed, the
default settings (CPU and FPGA rmware version, FTP URL and user name, startup fre-
quency, mode and level for each band, Transmission activation and startup PRN) are fetched
from the DSG1 and displayed in the “DSG1 Permanent local settings” panel.
