User's Manual

RTM Elster AMCO applicative PFS Coronis Systems

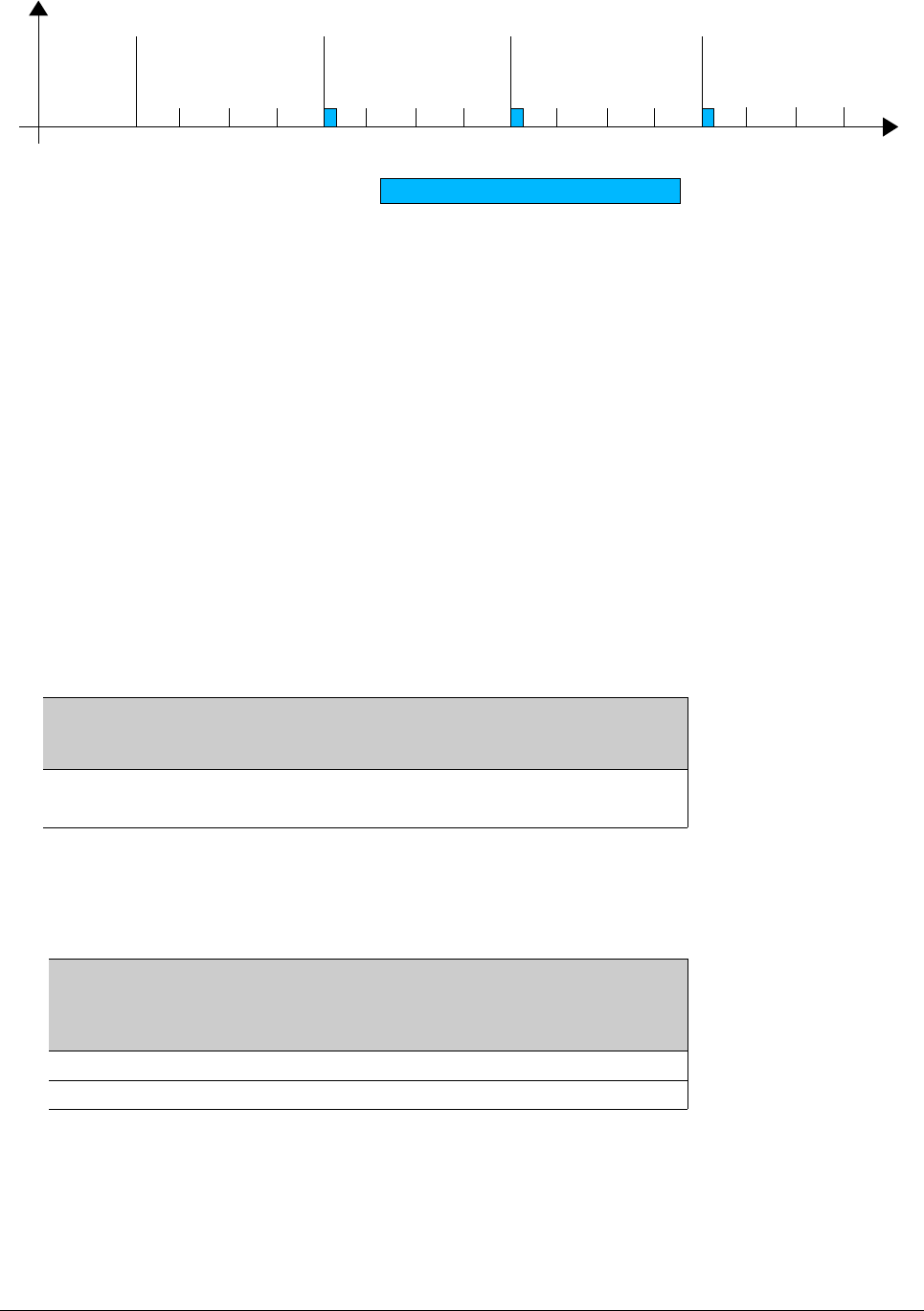

In this example the request to configure alarm windows activation is done between 8:01AM and 8:59AM.
8AM 9AM 10AM 11AM RTM RTC
5.12.3. Automatic configuration of the destination route (via SDP)
RTM Elster AMCO integrates the CORONIS SDP feature “Self Discovery Protocol” used to identify the path
to reach the root of the network. RTM Elster AMCO uses this parameter to transmit its alarm frames.
When no path to reach the root is found, RTM Elster AMCO will erase the route contained inside its
parameters. The destination address will be equal to 0xFFFFFFFFFFFF. In such a case, RTM Elster AMCO
does not manage alarm frame since it has no idea of distant equipment radio address to send it to.
5.12.4.Radio command for the configuration of the route
The route can be configured by a standard write command of the concerned parameters, or in an automatic
way.
Indeed when a distant module send the Alarm Configuration command (0x0A), the Waveflow AMCO module
stores the radio address of the transmitter, and the relay route (if used) as the recipient of alarm frames.
Configuration request data format
Applicative command
Alarms Configuration byte
parameter 0x58
(*)
1 byte 1 byte
0x0A
(*) By configuring the route this command can also parametrize automatically the parameter 0x58 that enable
the alarm transmission frame on a given functionality.
Configuration acknowledgment data format
Applicative
Acknowledgment
command
Configuration status
1 byte 1 byte
0x8A (1)
(1) 'Configuration Status' possible value: 0x00 : configuration update ok
0xFF : configuration update error
EVO RTM-UserMan 60
Time allowed for alarm frame
