User's Manual

VAP Installation and Provisioning
LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual 37
5.1.2.2 Wall Mount
Note: All components (adaptor, screws, and cables) are included in the VAP Kit.
Attach the VAPs wall mount adaptor to the wall in the planned location, using the double
sided sticky tape located on the rear or secure it using the longer screws.
Place the VAP on the Wall Mount.
Secure the Wall Mount adaptor to the VE Access Pod using the (4) short screws.
Connect the RJ-45 jumper cable (CAT-5e/6) to the VAP’s RJ-45 connector.
Plug the other end of the cable into the VCUs (RJ-45) Ethernet jack.
When using an external antenna, connect the Ext. Antenna SMA connector(s) to the external
antenna(s). This option must be SW configured via the web GUI. (Note: Internal
antenna is enabled by default).
Note: The maximum external antenna gain should not exceed 10 dBi.
Verify that the VAP receives power and connects to the VCU via the LEDs on the unit (both
the GREEN LED and the BLUE LED should be lit).
+ =
5.2 Verifying VAP Coverage Area
Verify coverage in the areas, adding and moving VAPs for optimal coverage according to the
principles described in 3.3.

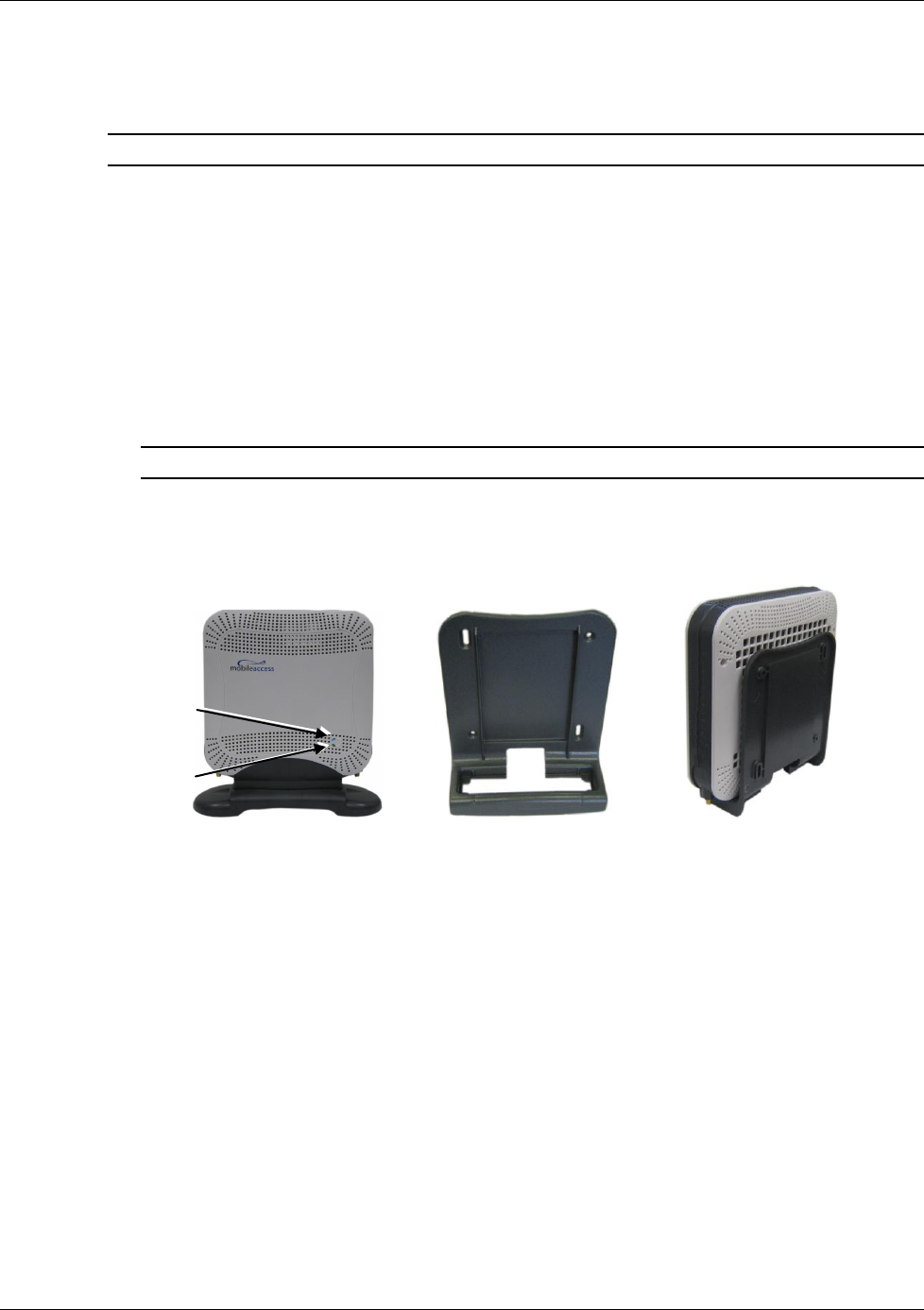

Access Pod
Wall Mount
Adaptor
Assembly
Blue LED
Green LED
