VCU Unit Installation and Provisioning
LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual 21

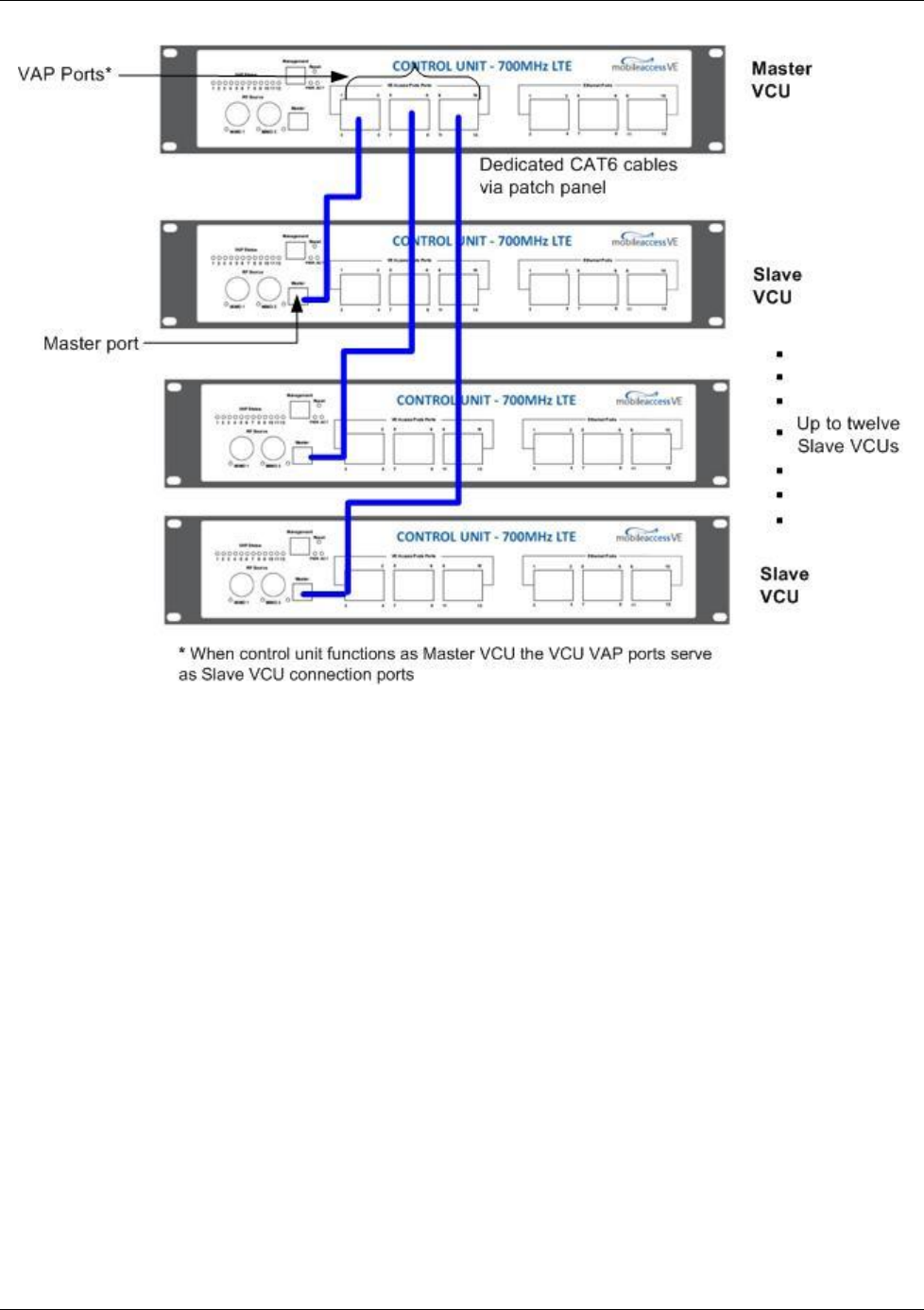

Figure 4-2. Master and Slave VCU Connections
3. Connect the Slave VCU VAP ports to the patch-panel that feeds the existing structured CAT-
5e/6 cabling system.
4. According to VAPs layout plan (as explained in section 3.4.2) connect the Ethernet switch
cables (see section 4.3.1 for more detailed explanation).
If the requested jack is already in use, disconnect it from the Ethernet switch and re-
connect it to the corresponding Ethernet port in the Slave VCU front panel.
