1.2.2 VE Access Pod (VAP)
Each VAP provides the following functions:
 Antennas – distributes the wireless services signals. The antennas are internal, where external
(optional) antennas can also be connected.
 Connection to Ethernet port – relevant when connected to jacks that provide an Ethernet
connection to a user terminal.
The VAP can be mounted/hung on the wall or placed on a flat surface (such as a desk).
The following figure shows the desktop VAP.

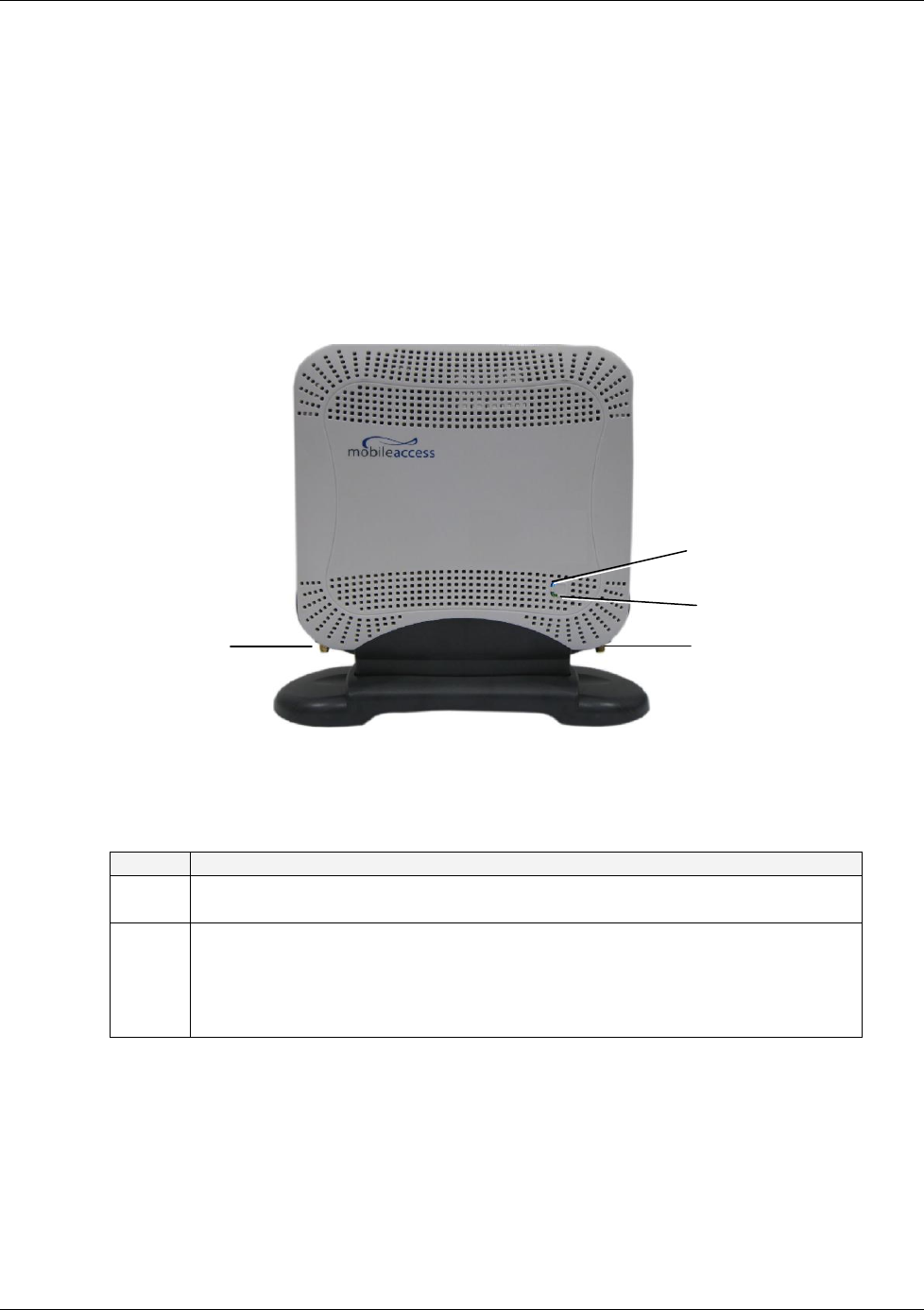

Figure 1-6. VE Access Pod-Front
Table 4: VAP LEDs
LED
Description
Power
Solid Green - Power supplied to VAP
Off - No power supplied to VAP
Activity
Off - No power supplied to VAP or Overall Status of VAP is
faulty
Blinking Blue - Power on, VAP is initializing (connecting to VCU)
Solid Blue - Power on, unit operating normally
Fast Blinking Blue - User invoked “Identify” command on corresponding VAP
Blue LED (Activity and
Identify)
Green Led (Power)
External Antenna SMA
connector
External Antenna SMA
connector
