Overview
LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual 5

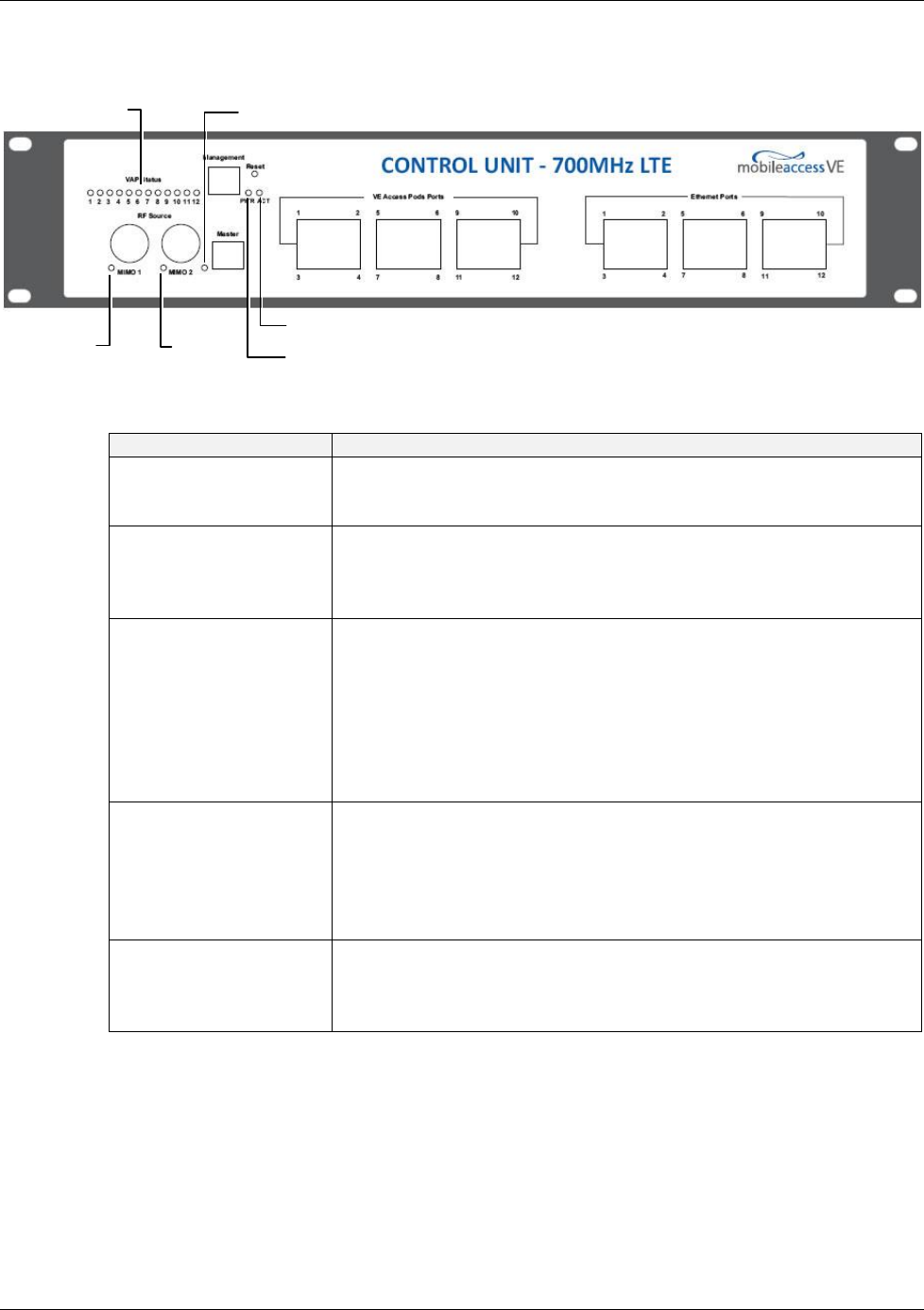

The following provides a description of the front panel LEDs.
Table 2: VCU LEDs Description
LED
Description
PWR
Indicates whether the VCU receives power:
Green - Power OK
Disabled - No power received by VCU
ACT
VCU activity LED:
Solid Green – During initialization
Blinking Green – Normal system operation
Fast Blinking Green – User activated
VCU Identify on this VCU
VAP Status (One LED per
port)
Indicates the status of the corresponding unit (VAP or VCU)
Blinking Green – Unit is initializing
Solid Green – Normal operation of unit
Solid Orange – Unit is faulty, or unmanaged. This can be
due to mismatch type, VoIP phone, etc.
Fast Blinking Green – User invoked “Identify” command on the
unit
Off – No VAP or VCU connected to this port.
MIMO (One LED per
channel)
Indicates the status of connected RF capacity source:
Green – Master VCU only. Normal RF level
Orange – Master VCU only. RF level is either too low,
too high, or service has been turned off by
the user.
Off – VCU is Slave.
Master
Indicates the status of the connection to the Master VCU:
Off – Master mode (not connected to VCU)
Blinking Green – During Attachment process with Master VCU
Solid green – Slave (IF-IF) mode and connected to Master
PWR LED
ACT LED
VAP (1-12)
Status LEDs
Master LED
MIMO1
LED
MIMO2
LED
