Overview
LTE 700 MHz MobileAccessVE Instant Coverage Solution User Manual 2

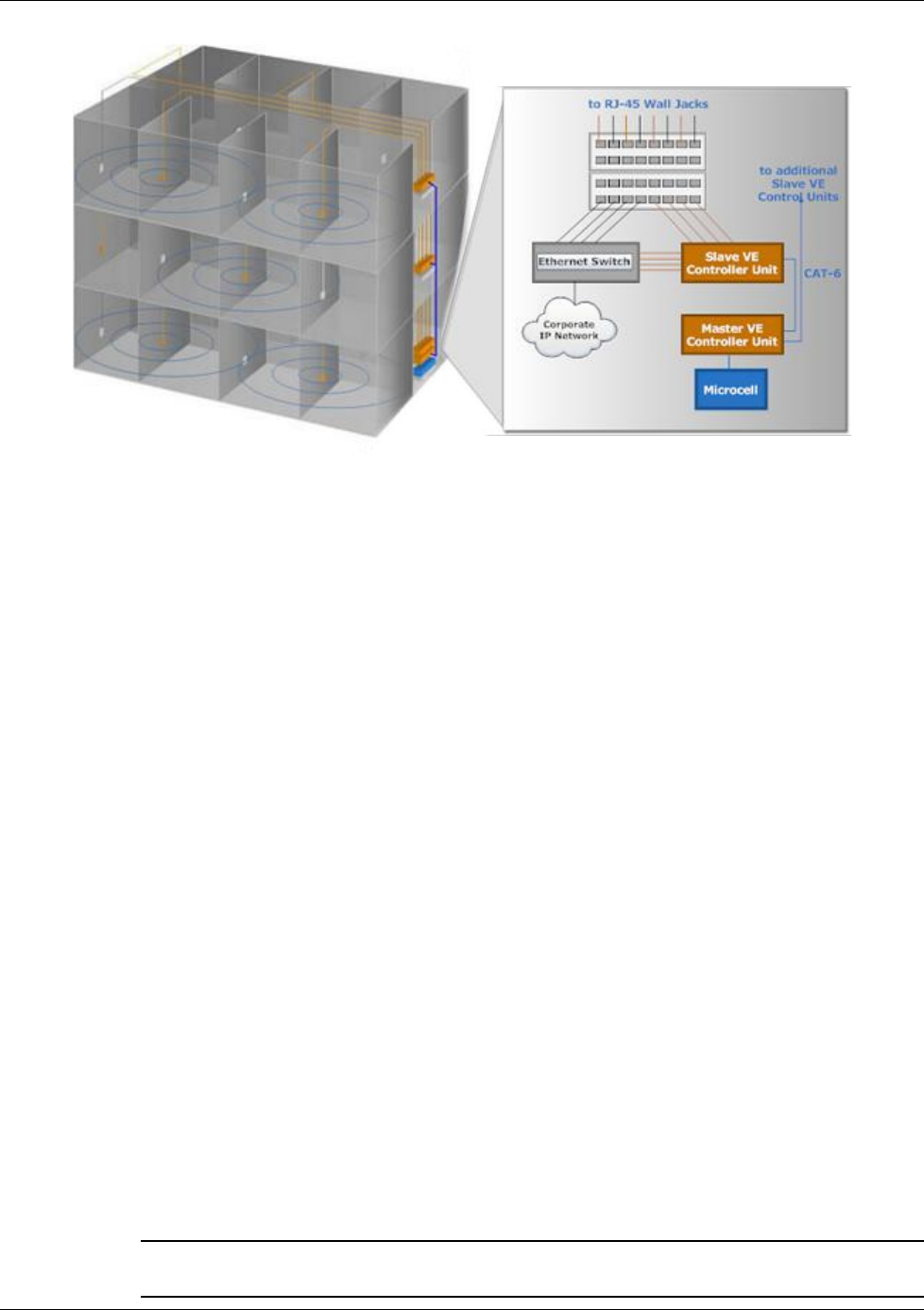

Figure  1-2. Multi-Tier VE Installation
1.1 System Architecture
Main Elements - The MobileAccessVE solution is based on the following main elements:
 VE Control Unit (VCU) – The control Unit can serve as either a Master or a Slave and
interfaces the other VCUs (in case of Master) or the VAPs (when serving as Slave). The Master
or Slave mode is automatically detected according to the VCU's physical connection. If a
connection to another VCU is detected, the VCU will automatically be identified as a Slave;
otherwise it will assume the role of a Master.
 Master VE Control Unit (Master VCU) – installed in the main communication Telco
closet, interfaces to the service provider’s RF capacity sources, and provides secure,
central management to up to twelve VCUs, as well as all connected VAPs. In cases
where no Slave VCUs are required, VAPs can be connected directly to the Master VCU.
 Slave VE Control Unit (Slave VCU) – installed in the telco/IDF closet and used to
expand coverage to additional floors. Each VCU interfaces the Master VCU and up to
twelve VE Access Pods and twelve Ethernet connections.
The Slave VCUs distribute wireless service signals to each VAP along with PoE and (where
relevant) Ethernet signals from the Ethernet switch, throughout the existing CAT-5e
infrastructure.
The Slave VCUs are connected to the Master VCU using CAT-6 or 7 cables.

VE Access Pod (VAP) – These are pluggable antennas distributed at strategic locations over
one or more floors to provide maximum coverage. VAPs provide RF coverage via integrated,
internal antennas. VAPs are also equipped with an interface for external antennas for special
coverage requirements. VAPs are remotely powered from the VCU using Power over Ethernet
(PoE), eliminating the need for local powering.
Up to twelve VAPs can be connected to a single VCU using LAN cables (CAT-5e or higher).
Note: When the total number of VAPs in the deployment exceeds 72, consult with
MobileAccess support.
