660 | Corel DESIGNER X7 User Guide
5 Click Export.
6 In the Convert to bitmap dialog box, adjust the width, height, resolution, color mode, or any of the other settings, and click OK.
TIFF technical notes
• When importing a TIFF that contains multiple pages, you can import all pages or choose the individual pages that you want to import.
• Black-and-white, color, and grayscale TIFF files up to and including the 6.0 specification can be imported and exported.
• TIFF files compressed using JPEG, ZIP, CCITT, Packbits 32773, or LZW compression can also be imported. However, you may notice
additional loading time with these files because the program decodes the file compression.
TrueType Font (TTF)
The TrueType Font (TTF) file format was created jointly by Apple Computer and Microsoft Corporation. It is the most common format for
fonts used in both Macintosh and Windows operating systems. The TTF file format prints font characters as bitmaps or vectors depending
on the capabilities of your printer. True Type fonts appear the same in print and on-screen, and they can be resized to any height.
TrueType Fonts (TTF) technical notes
• TrueType fonts exported from Corel DESIGNER are unhinted.
• Each exported character constitutes a single object. Before you export multiple objects, you must combine them by clicking
Object Combine. You cannot export multiple objects or grouped objects.
• Fill and outline attributes applied to objects are not exported.
• For best results, avoid intersecting lines. Any object in your character should lie completely inside or outside of others, as shown in the
following example.

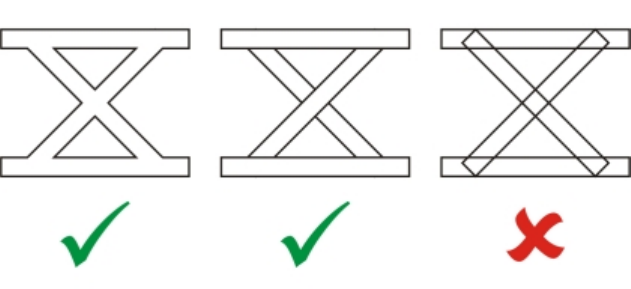

Left to right: three objects correctly combined; five objects correctly combined; five objects incorrectly combined
Visio (VSD)
• VSD is the Visio drawing format. It can contain bitmaps and vectors.
• You can import all VSD file types, up to VSD 2007.
• Rectangle shapes are imported as rectangle objects.
• Circle and ellipse shapes are imported as ellipse objects.
• Curvygon, pentagon, hexagon, heptagon, octagon, and megagon shapes are imported as polygon objects.
• All other shapes are imported as polycurves.
WordPerfect Document (WPD)
The WordPerfect Document format (WPD) is the native file format for WordPerfect files. Corel DESIGNER supports WPD files from
WordPerfect 4.2 to 14. WordPerfect files for versions 4 and 5 have the file extensions .wp4 and .wp5.
