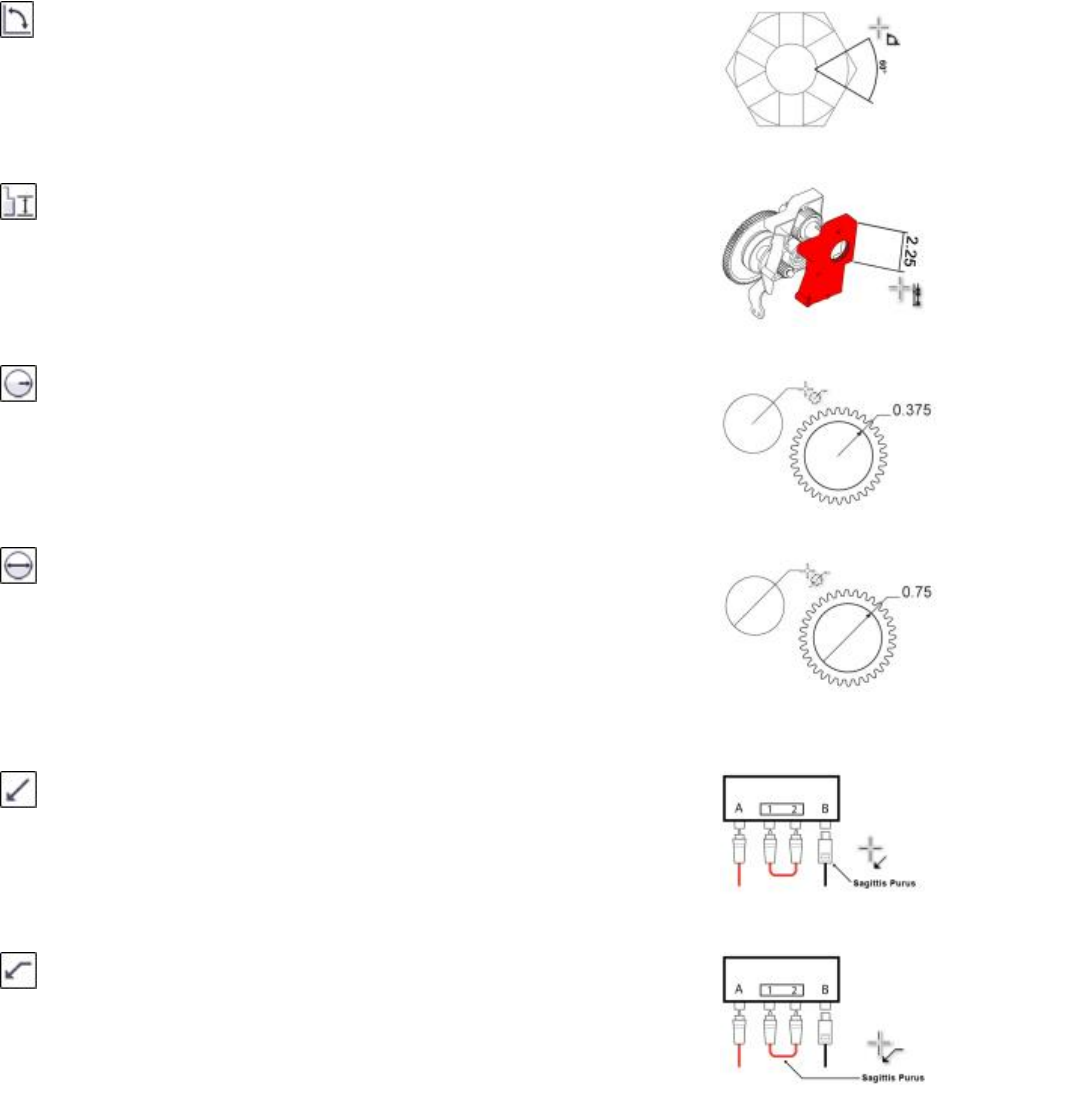

The Angular dimension tool lets you draw
angular dimension lines.
The Segment dimension tool lets you
display the distance between end nodes in
single or multiple segments.
The Radial dimension tool lets you display
the radius of a circle or circular arc.
The Diametric dimension tool lets you
display the diameter of a circle or a circular
arc.
Callout tools
The 1-leg callout tool lets you draw a
callout with one leading line.
The 2-leg callout tool lets you draw a
callout with a two-segment leading line.
