Supported file formats | 629
• Most linear and radial fountain fills are preserved. Conical and square fountain fills are exported as a series of filled bands, an effect
similar to that achieved by blending. You can set the number of bands by clicking Tools Options. In the Workspace list of categories,
click Display, and type a number in the Previewfountain steps box. The maximum number of bands supported is 256.
• You can export text as text when you are exporting AI files from versions CS and later.
• When exporting multi-page Corel DESIGNER files to the CS4, CS5, and CS6 formats, individual pages are exported as Artboards. They are
also layed out using the Arrange by row format.
• When exporting multi-page Corel DESIGNER files to the CS4, CS5, and CS6 formats, objects that are placed off of the page are removed.
Adobe Type 1 Font (PFB)
The Adobe Type I Font (PFB) is a file format that stores Adobe Type 1 fonts. Most Type 1 fonts are single master fonts that permit only style
editing; for example, Roman, italic, bold. A single master Type 1 font contains two files: a Printer Font Metrics (PFM) file and a Printer Font
Binary (PFB) file.
Some Type 1 fonts are also available in multiple master format. You can customize design elements of multiple master fonts such as weight,
width, style, and optical size. A multiple master base font is the multiple master font itself, from which you create variations called multiple
master instances. A multiple master base font is composed of a PFM file, a PFB file, and a Multiple Master Metrics (MMM) file. A multiple
master instance is composed of a PFM file and a PostScript Printer Stub (PSS) file.
Adobe Type 1 Fonts technical notes
• Adobe Type 1 fonts exported from Corel DESIGNER are unhinted.
• Each exported character constitutes a single object. Before you export multiple objects, you must combine them by clicking
Object Combine. You cannot export multiple objects or grouped objects.
• For best results, avoid intersecting lines. Any object in your character should lie completely inside or outside of others, as shown in the

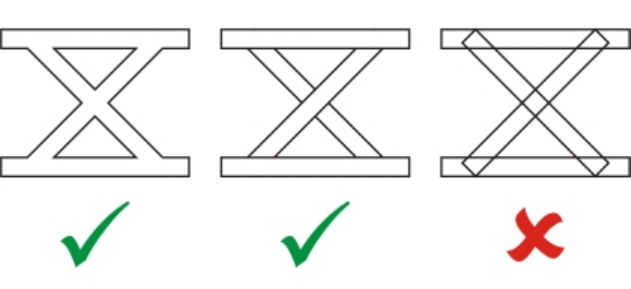

following example.
Left to right: three objects correctly combined; five objects correctly combined; five objects incorrectly combined
• Fill and outline attributes applied to objects are not exported.
• Adobe Type 1 fonts you create are compatible with Adobe Type Manager version 2.0, but not with earlier versions.
Windows Bitmap (BMP)
The Windows® bitmap (BMP) file format was developed as a standard for representing graphic images as bitmaps on the Windows
operating system.
To import a bitmap file
1
Click File Import.
2 Locate the folder in which the file is stored.
