372 | Corel DESIGNER X7 User Guide
You can position the lens anywhere in the drawing window, but it always shows the area around its viewpoint marker. For example, you can
use the viewpoint marker on the Magnify lens to enlarge part of a map.
You can also display a lens only where it overlaps other objects or the background. As a result, the lens effect is not seen where the lens
covers blank space (white space) in the drawing window.
Freezing the current view of a lens lets you move the lens without changing what’s displayed through it. In addition, changes you make to
the areas beneath the lens have no effect on the view.

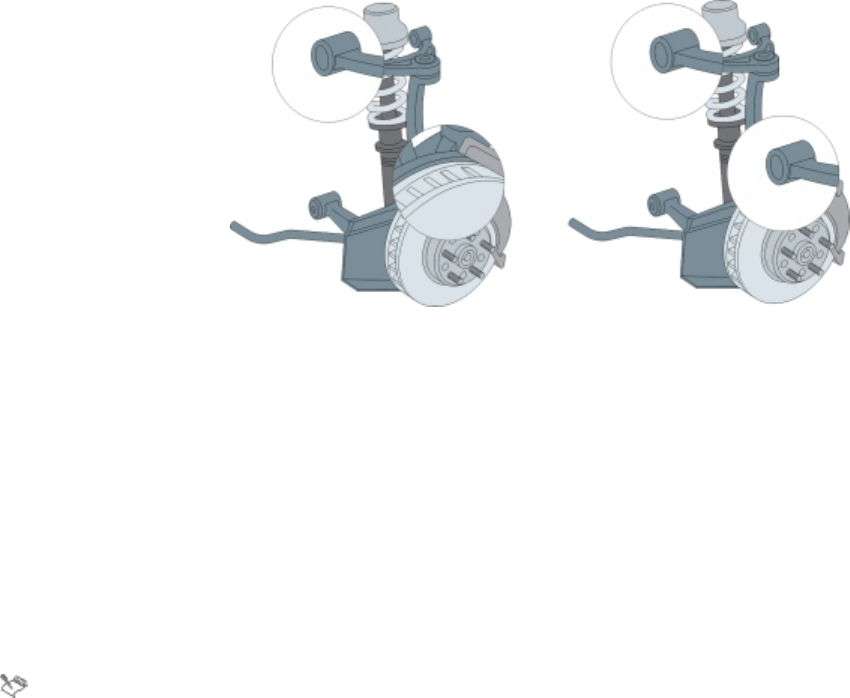

Moving an unfrozen Magnify lens (left); moving a frozen Magnify lens (right)
To edit a lens
1 Select an object.
2
Click Effects Lens.
3 Enable the Viewpoint check box on the Lens docker.
If you want to display a lens only where it covers other objects, enable the Remove face check box.
4 Click Edit to display the viewpoint marker.
5 Drag the viewpoint marker in the drawing window to a new location.
6 Click End.
If you want to freeze the current view of a lens, enable the Frozen check box.
7 Click Apply.
The Remove face check box is not available for the Fish Eye and Magnify lenses.

