306 | Corel DESIGNER X7 User Guide
Transforming and scaling hatch fills
Hatch fills can retain their properties independently of changes made to the object, or they can be transformed and scaled with the object.
If you choose to transform the hatch fill with the object, only the transformations you apply from that point forward are applied — previous
object transformations are not applied to the hatch fill.

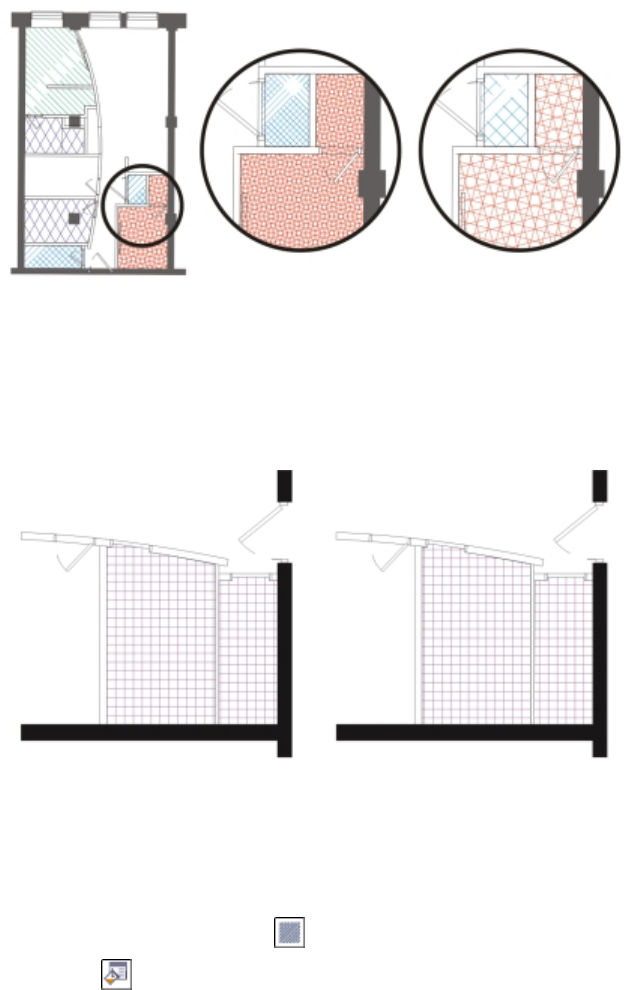

The original hatch fill (left) isn’t scaled with the object in the first example
(center) and is scaled with the object in the second example (right).
Aligning hatch fills
When you apply the same hatch fill to more than one object, you can retain the fill alignment for the individual objects, or you can align the
fills.
The hatch fills are aligned in the drawing on the right.
To apply a hatch fill
1 Select an object for which you want to apply or edit a hatch fill.
2
Click Edit Property manager.
3
In the Property manager docker, click the Hatch fill button to display hatch fill options.
4
Click the Hatch fill properties button .
5 In the Edit fill dialog box, choose a hatch fill library from the Library list box.
6 Choose a hatch fill from the Fill picker located below the Library list box.
If a hatch fill is already applied to the selected object, it appears in the Fill picker.
7 Specify the attributes you want.

